Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> A/T Shift Lock System >> Shift Lock System Electrical Parts Location

Shift Lock System Electrical Parts Location

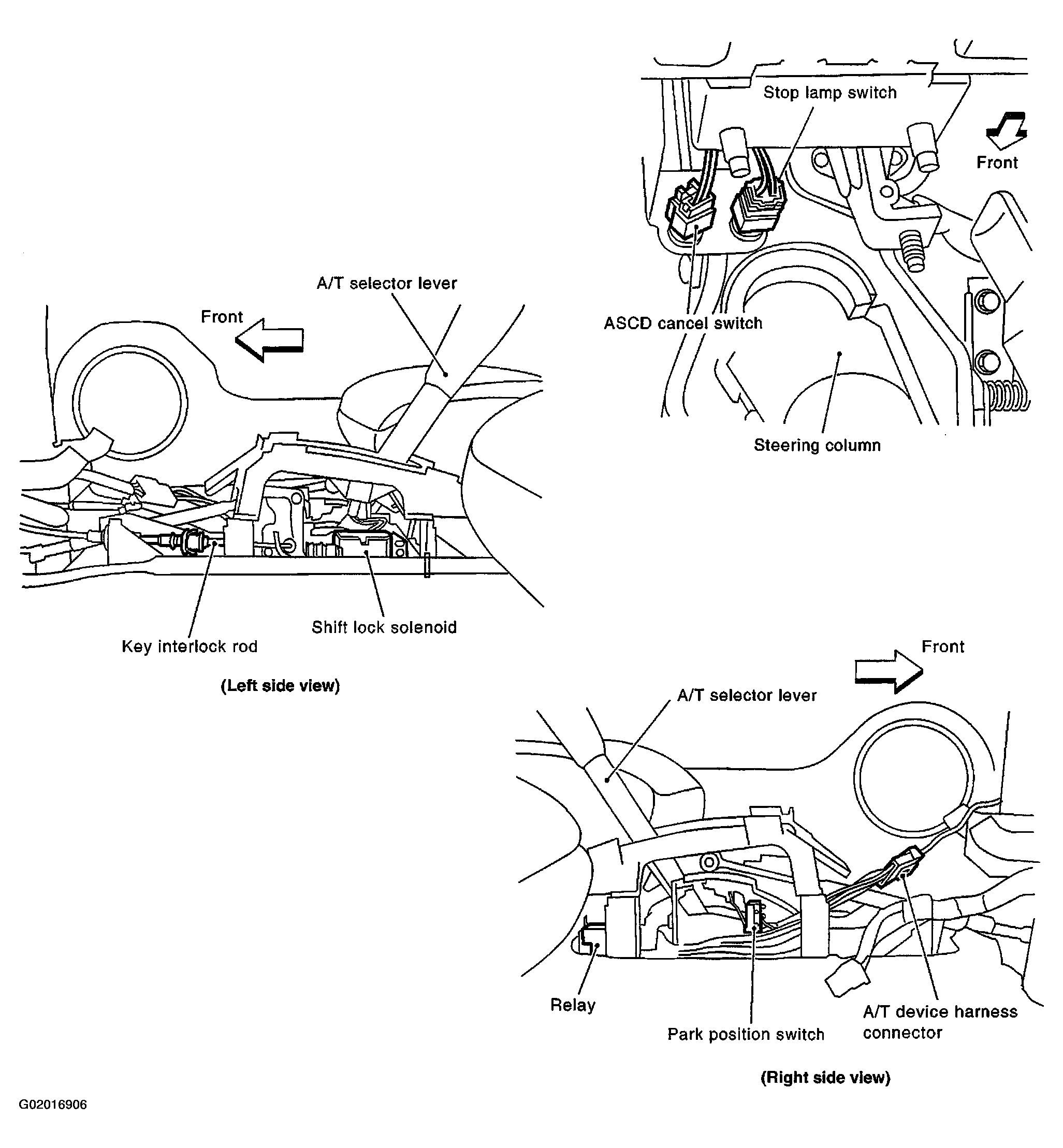

Fig 1: Locating Shift Lock System Components

G02016906

Courtesy of NISSAN MOTOR CO., U.S.A.
