Automatic Transaxle Re4F04B
>>
Overall System
>>
Circuit Diagram
Circuit Diagram

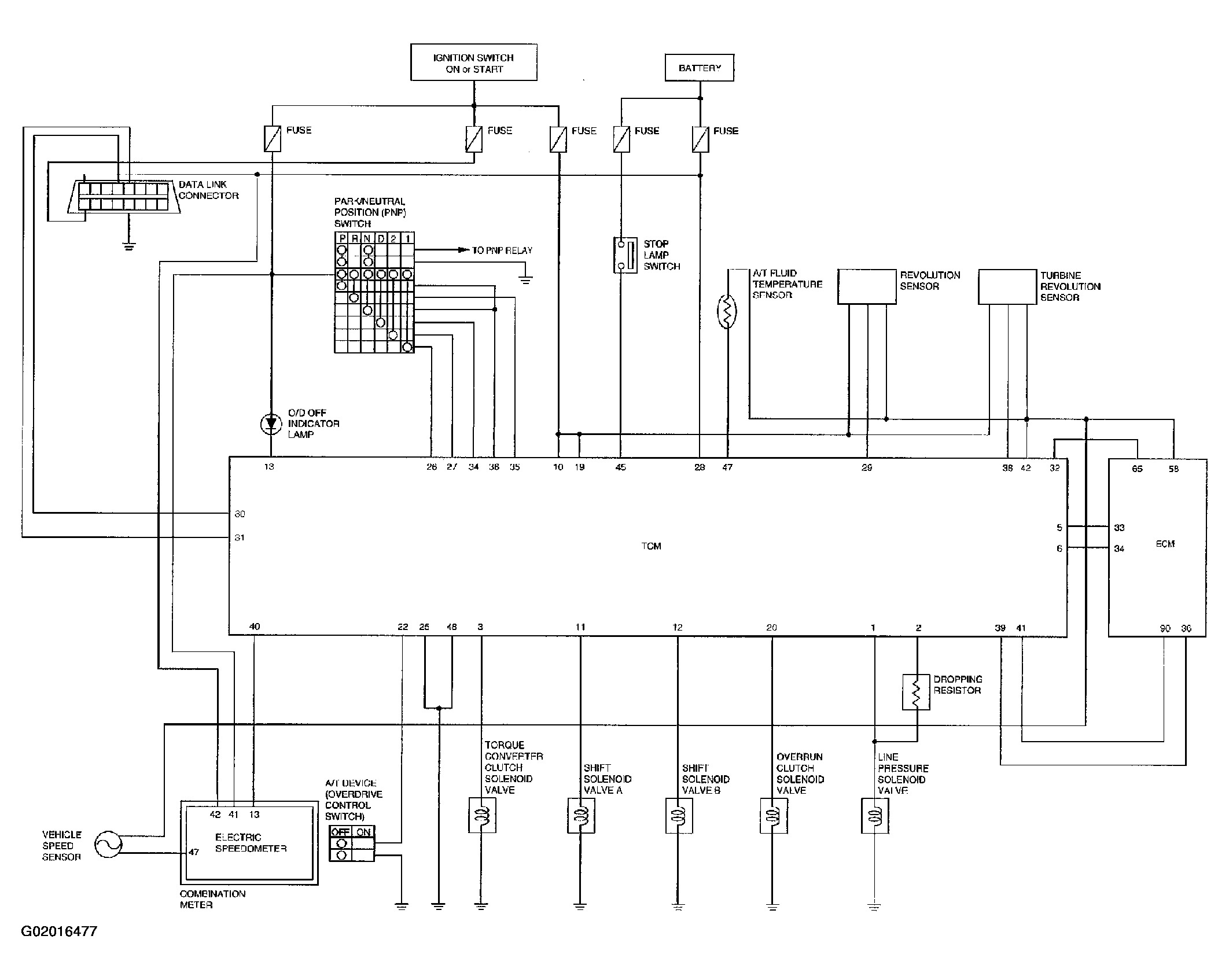

Fig 1: Automatic Transaxle System Circuit Diagram (RE4F04B)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
