Input/Output Signal Of TCM

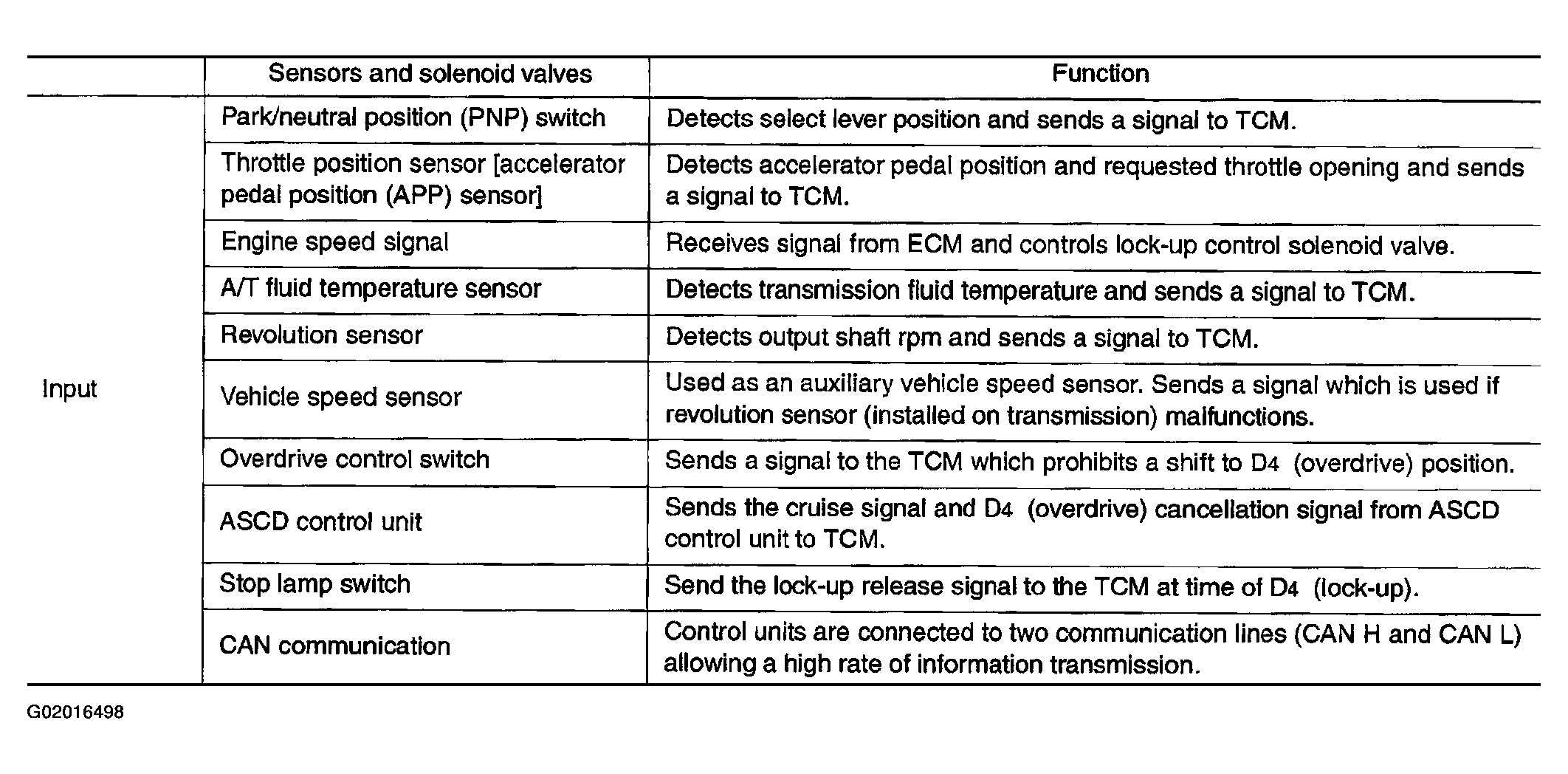

Fig 1: TCM Input Signal Functions Description Chart
G02016498Courtesy of NISSAN MOTOR CO., U.S.A.

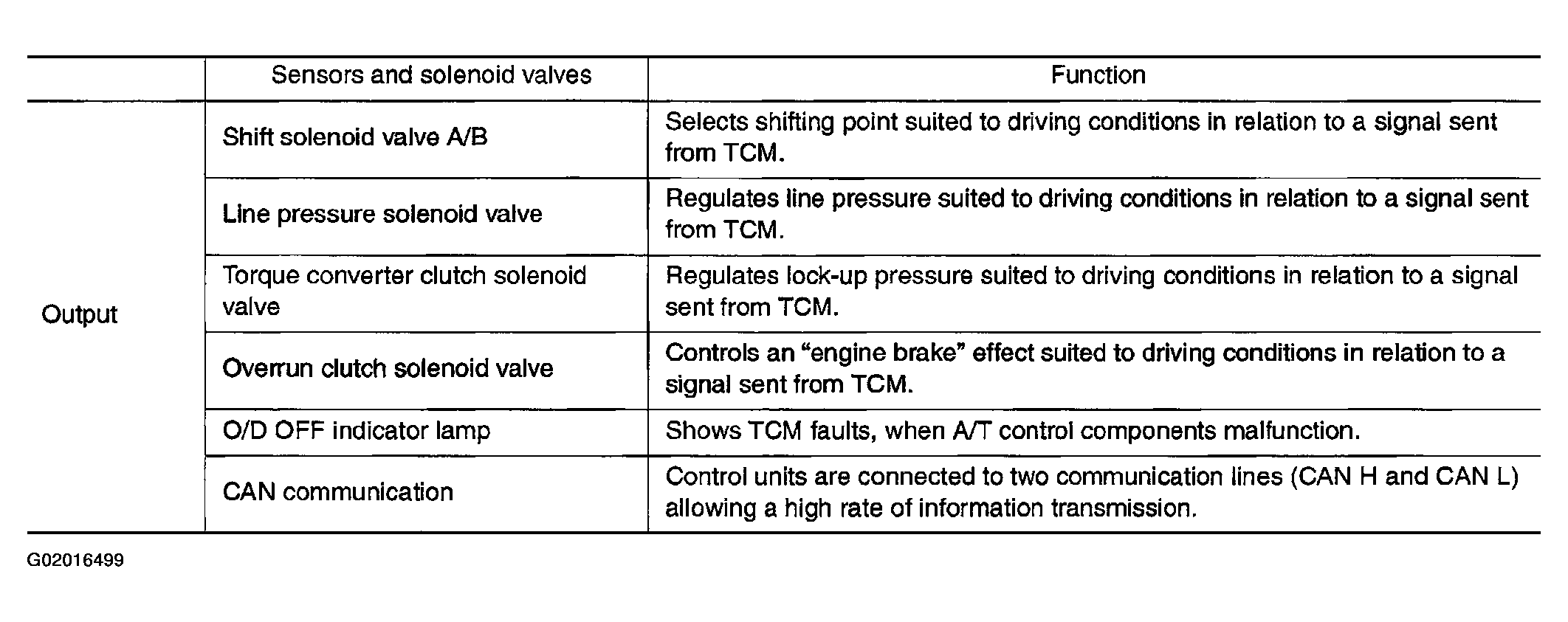

Fig 2: TCM Output Signal Functions Description Chart
G02016499Courtesy of NISSAN MOTOR CO., U.S.A.
