Function Of Control Valves

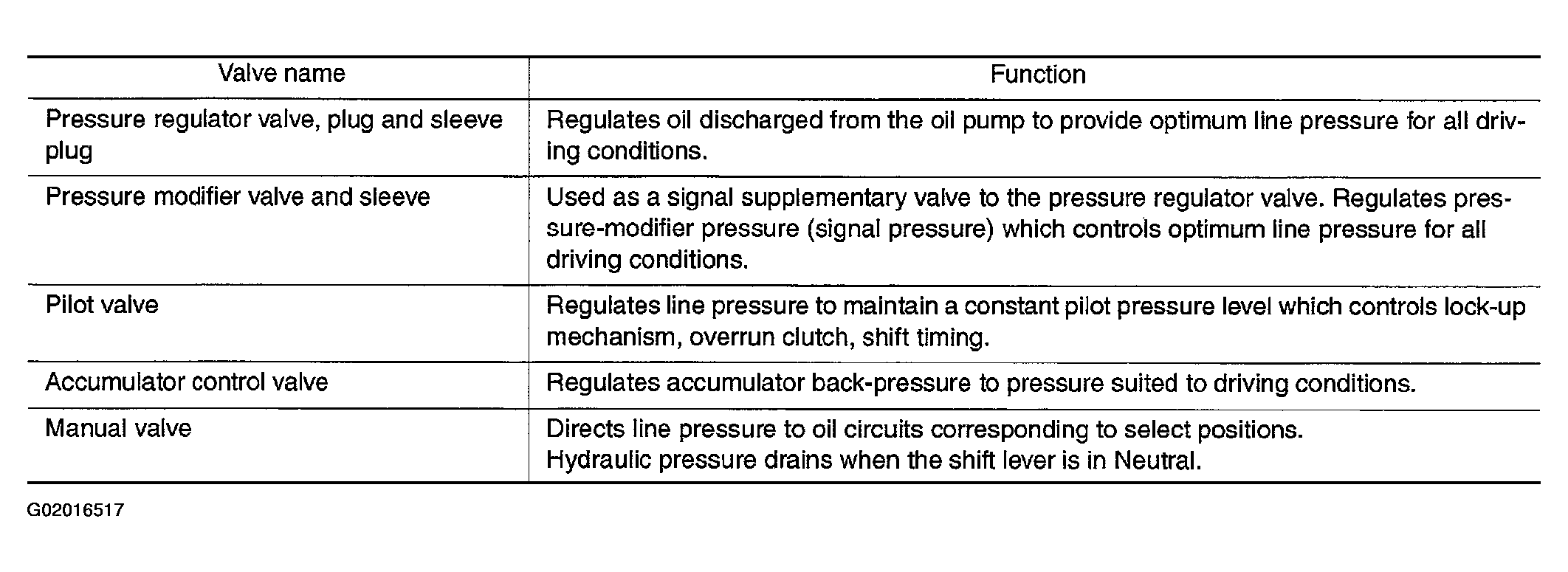

Fig 1: Control Valves Function Description Chart (1 Of 2)
G02016517Courtesy of NISSAN MOTOR CO., U.S.A.

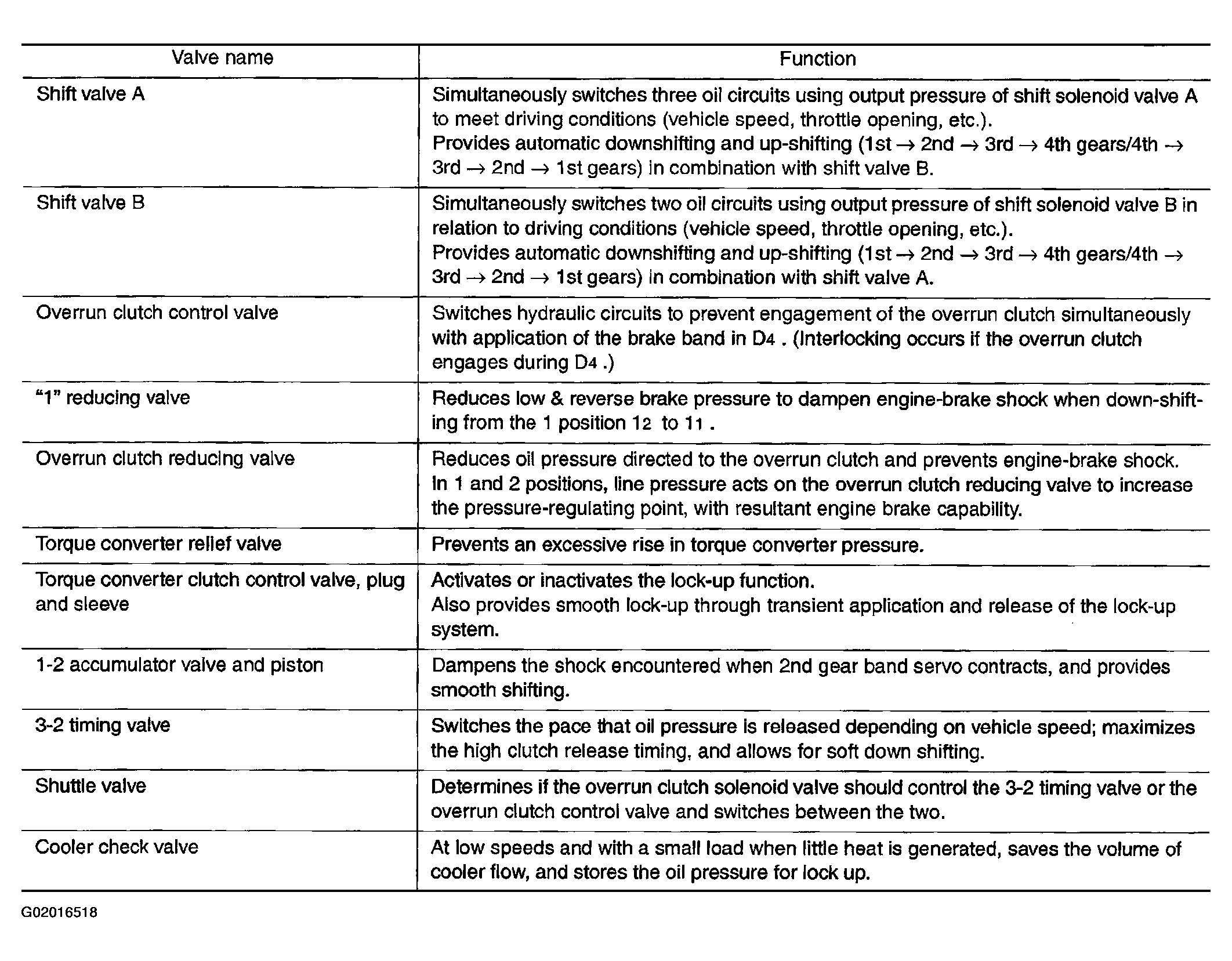

Fig 2: Control Valves Function Description Chart (2 Of 2)
G02016518Courtesy of NISSAN MOTOR CO., U.S.A.
