Cross-sectional View
Cross-sectional View

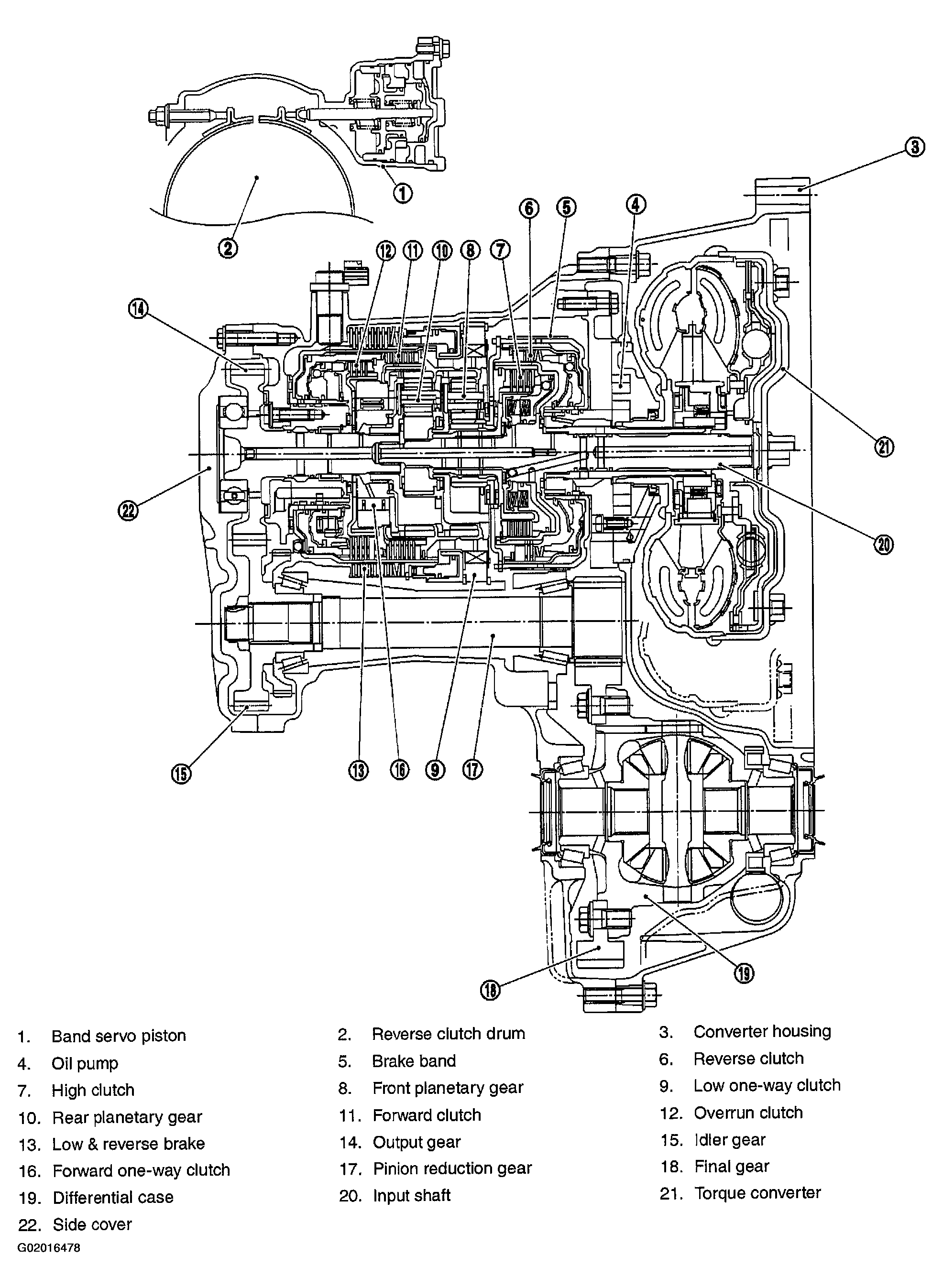

Fig 1: Locating Automatic Transaxle System Components (Cross Sectional View)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
