Function Of Clutch And Brake

NOTE: For identification of components called out by number, see Figure.

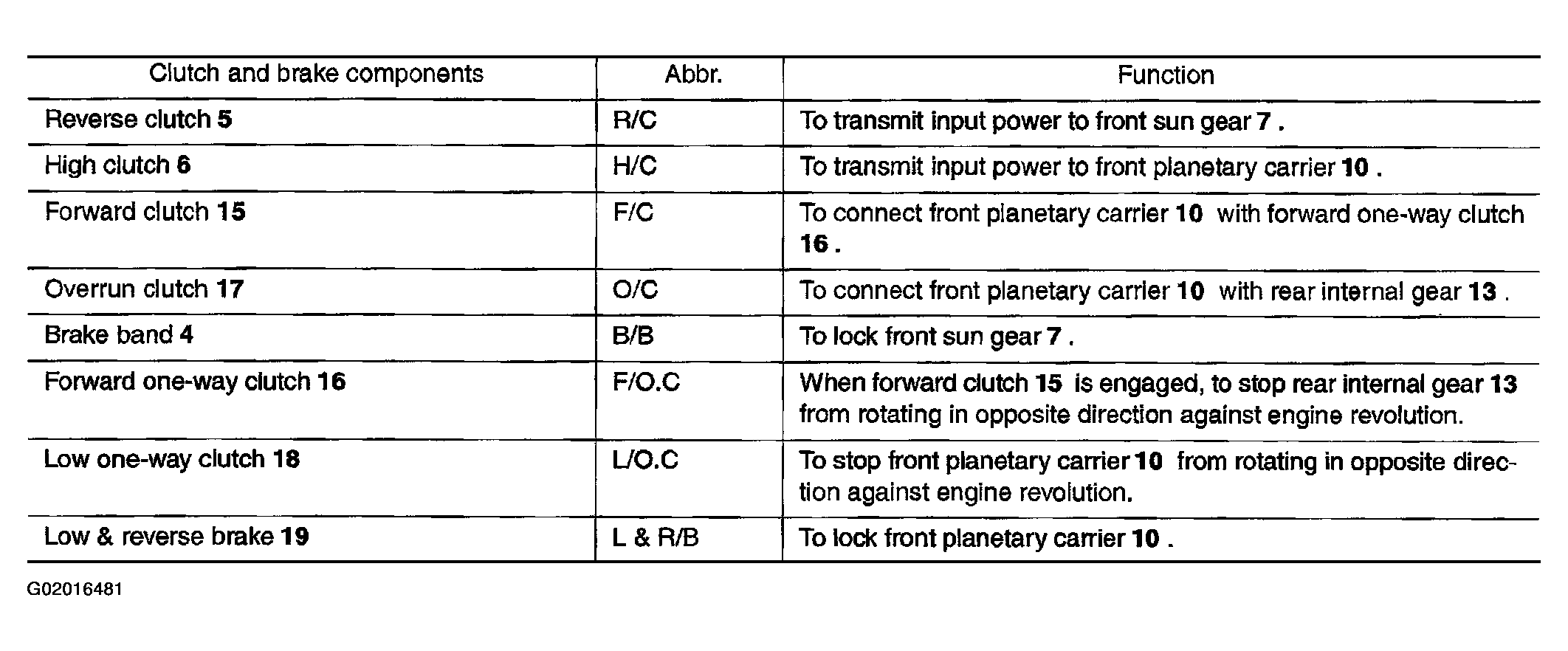

Fig 1: Clutch And Brake Function Description Chart

G02016481

Courtesy of NISSAN MOTOR CO., U.S.A.
