R Position

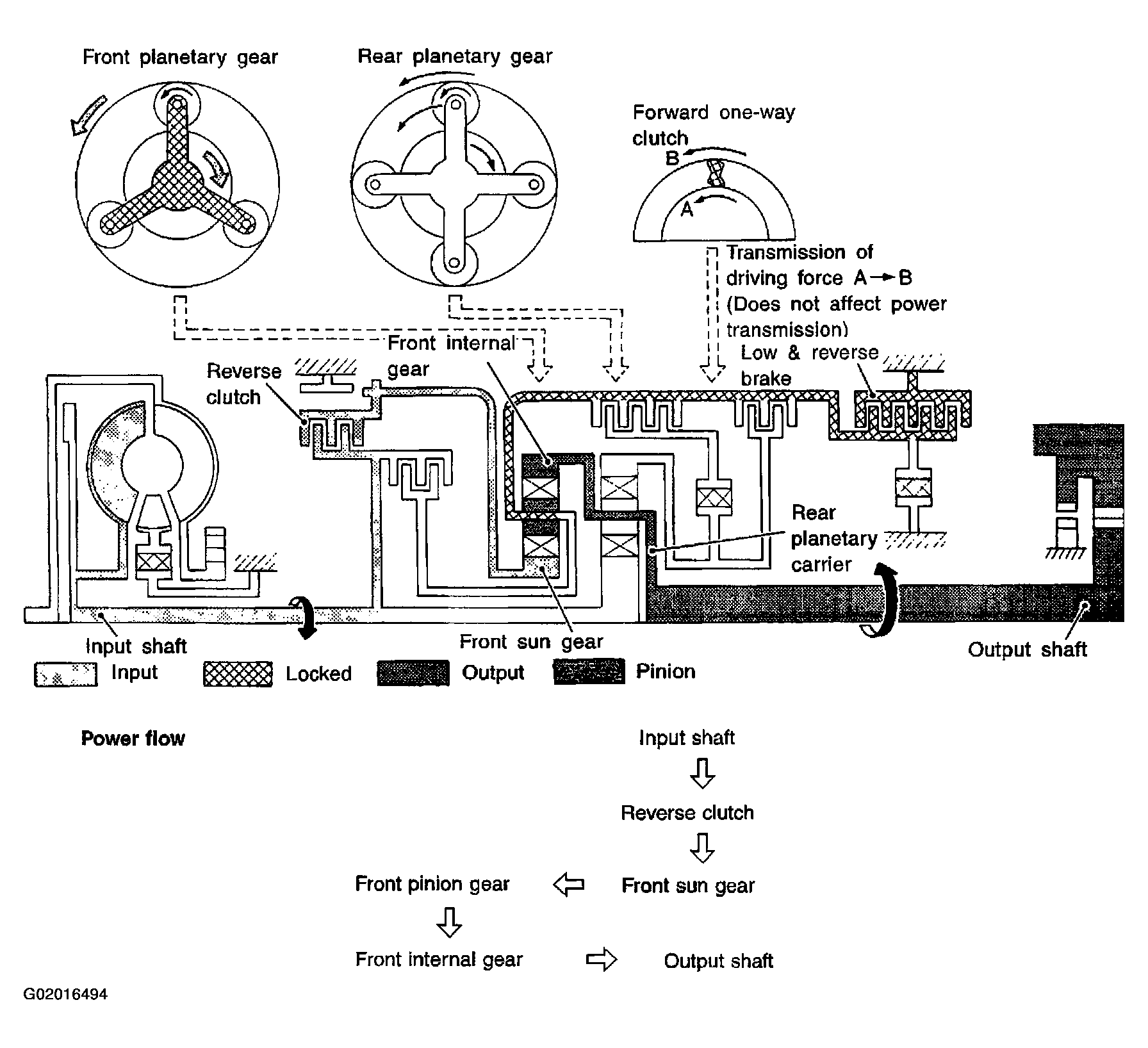

Fig 1: Automatic Transaxle System Power Transmission Diagram (R Position)
G02016494Courtesy of NISSAN MOTOR CO., U.S.A.

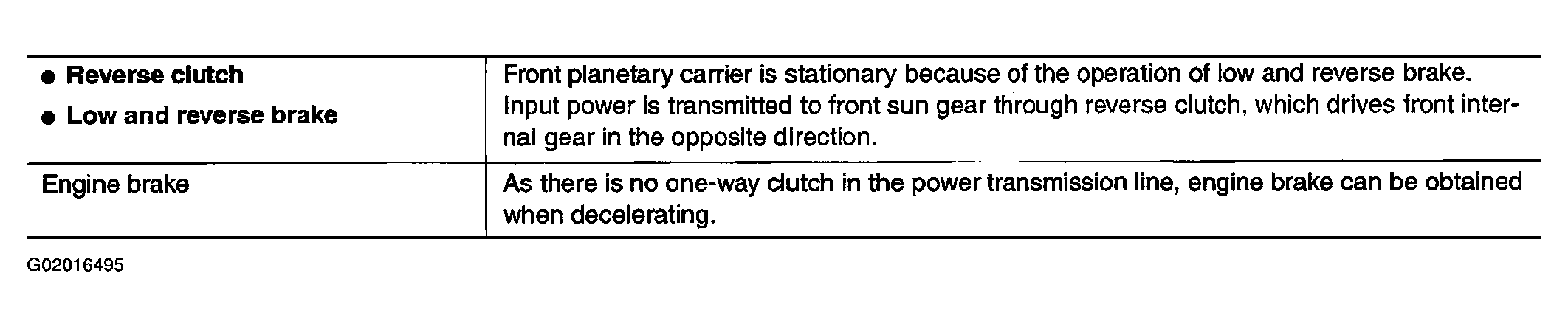

Fig 2: Components Operation Description Chart (R Position)
G02016495Courtesy of NISSAN MOTOR CO., U.S.A.
