Control Valve Assembly: Components

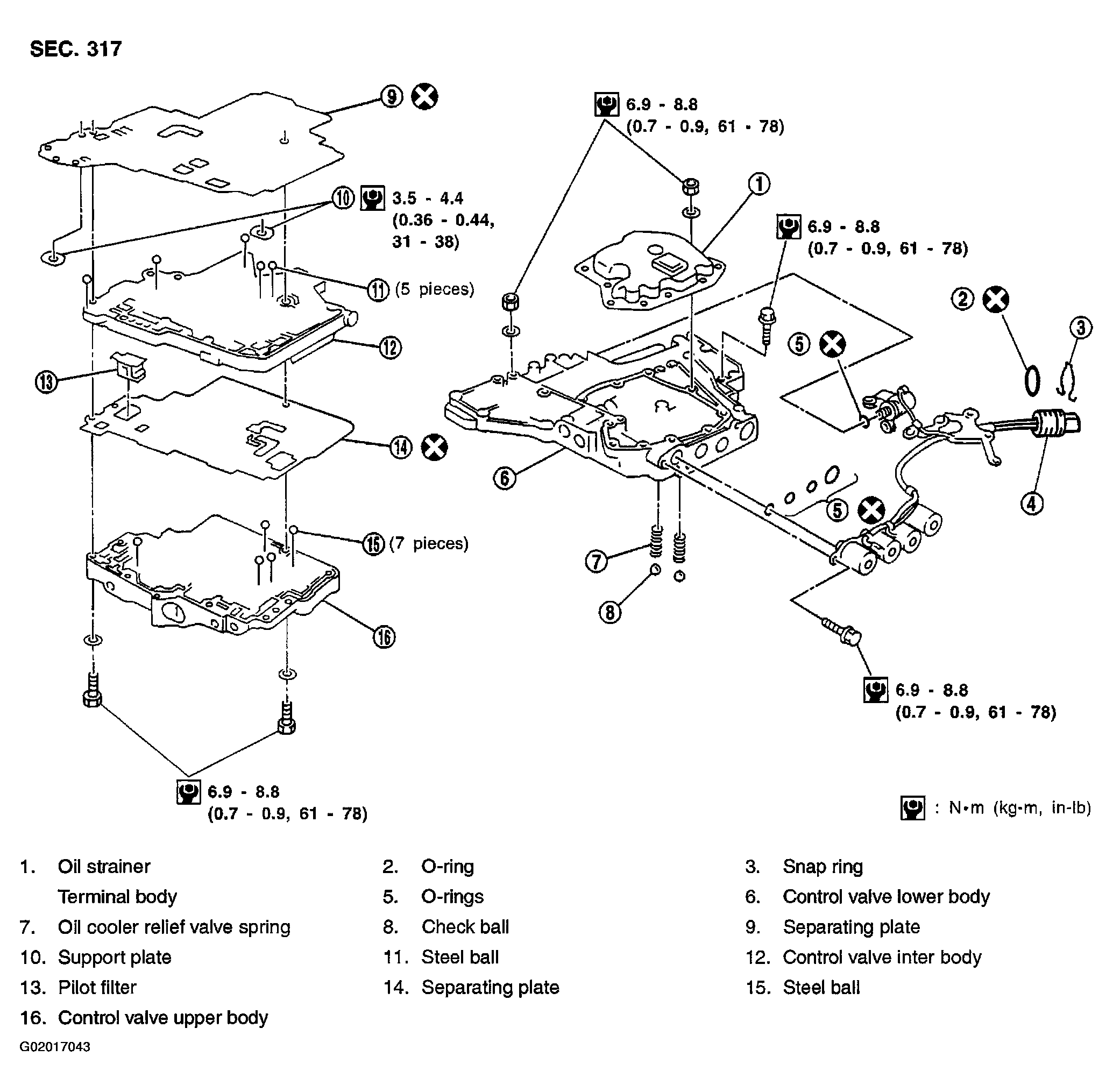

Fig 1: Exploded View Of Control Valve Assembly Components And Torque Specifications
G02017043Courtesy of NISSAN MOTOR CO., U.S.A.
