Control Valve Lower Body: Components

Apply ATF to all components before installation.

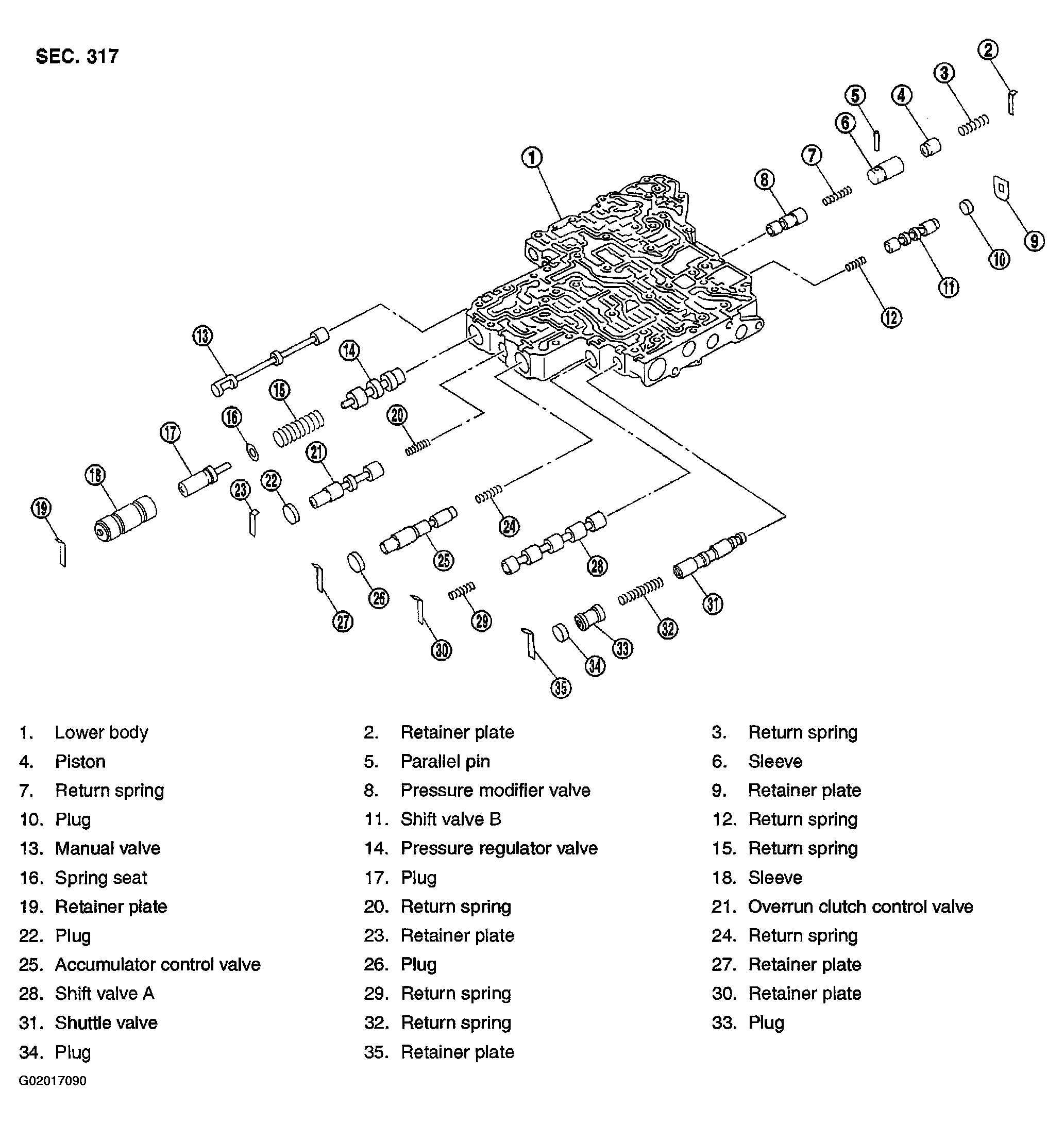

Fig 1: Exploded View Of Control Valve Lower Body Components And Torque Specifications
G02017090Courtesy of NISSAN MOTOR CO., U.S.A.
