Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> Repair For Component Parts >> Control Valve Upper Body >> Components

Control Valve Upper Body: Components

Apply ATF to all components before installation.

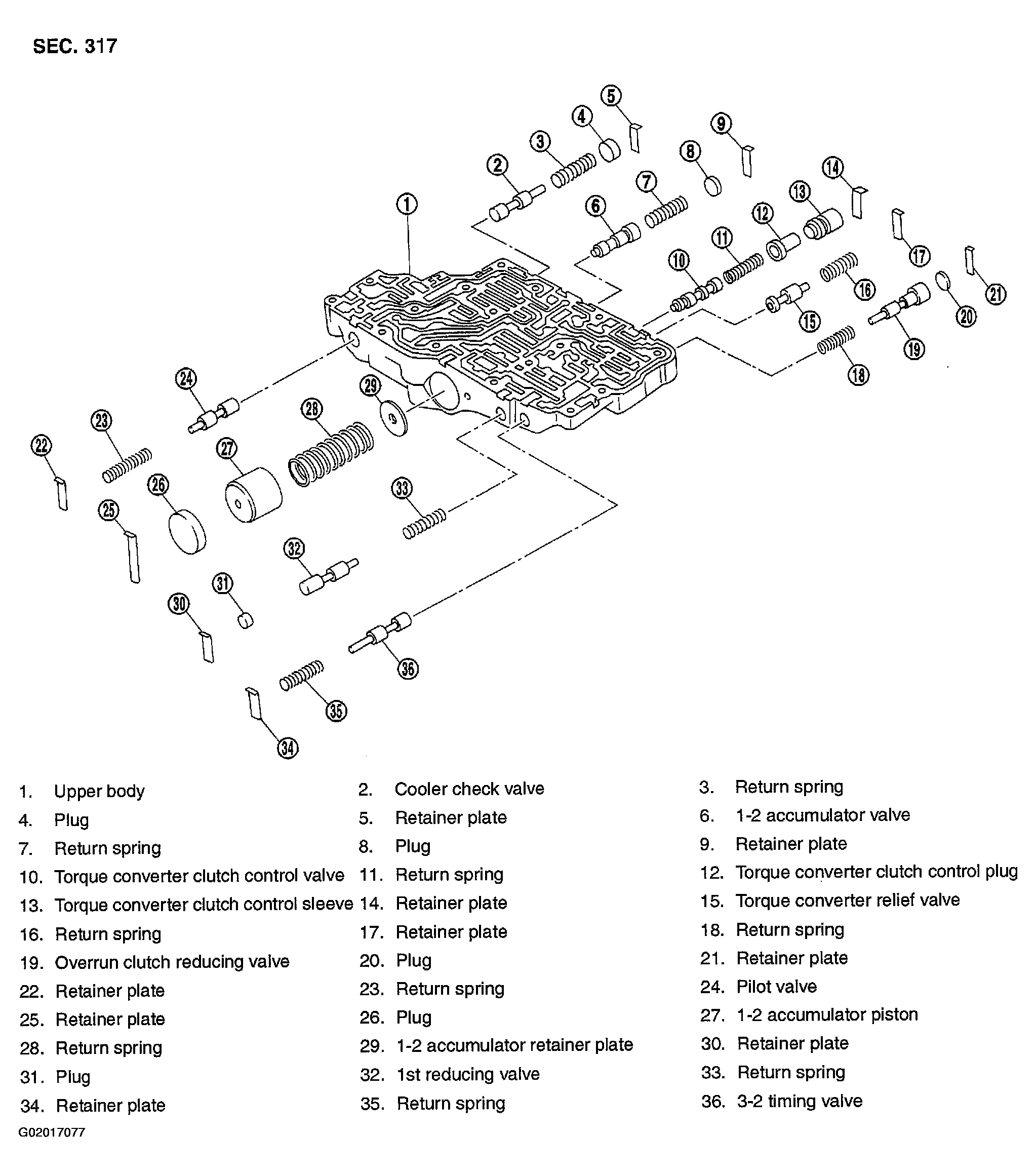

Fig 1: Exploded View Of Control Valve Upper Body Components

G02017077

Courtesy of NISSAN MOTOR CO., U.S.A.
