Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> Repair For Component Parts >> Forward And Overrun Clutches >> Components

Forward And Overrun Clutches: Components

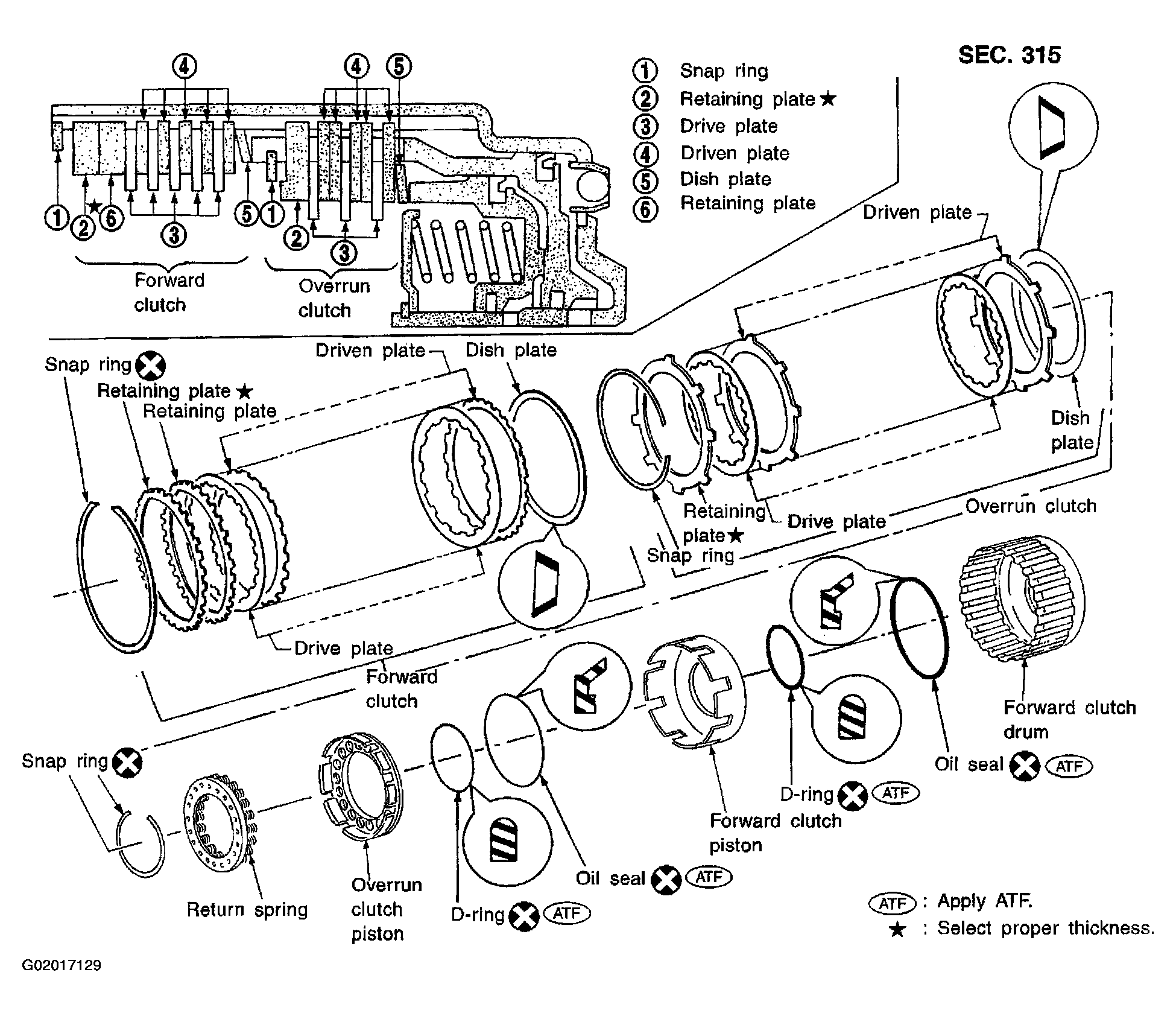

Fig 1: Exploded View Of Forward Clutch And Overrun Clutch Components

G02017129

Courtesy of NISSAN MOTOR CO., U.S.A.
