lemon-mirror:
Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> Repair For Component Parts >> High Clutch >> Components

High Clutch: Components

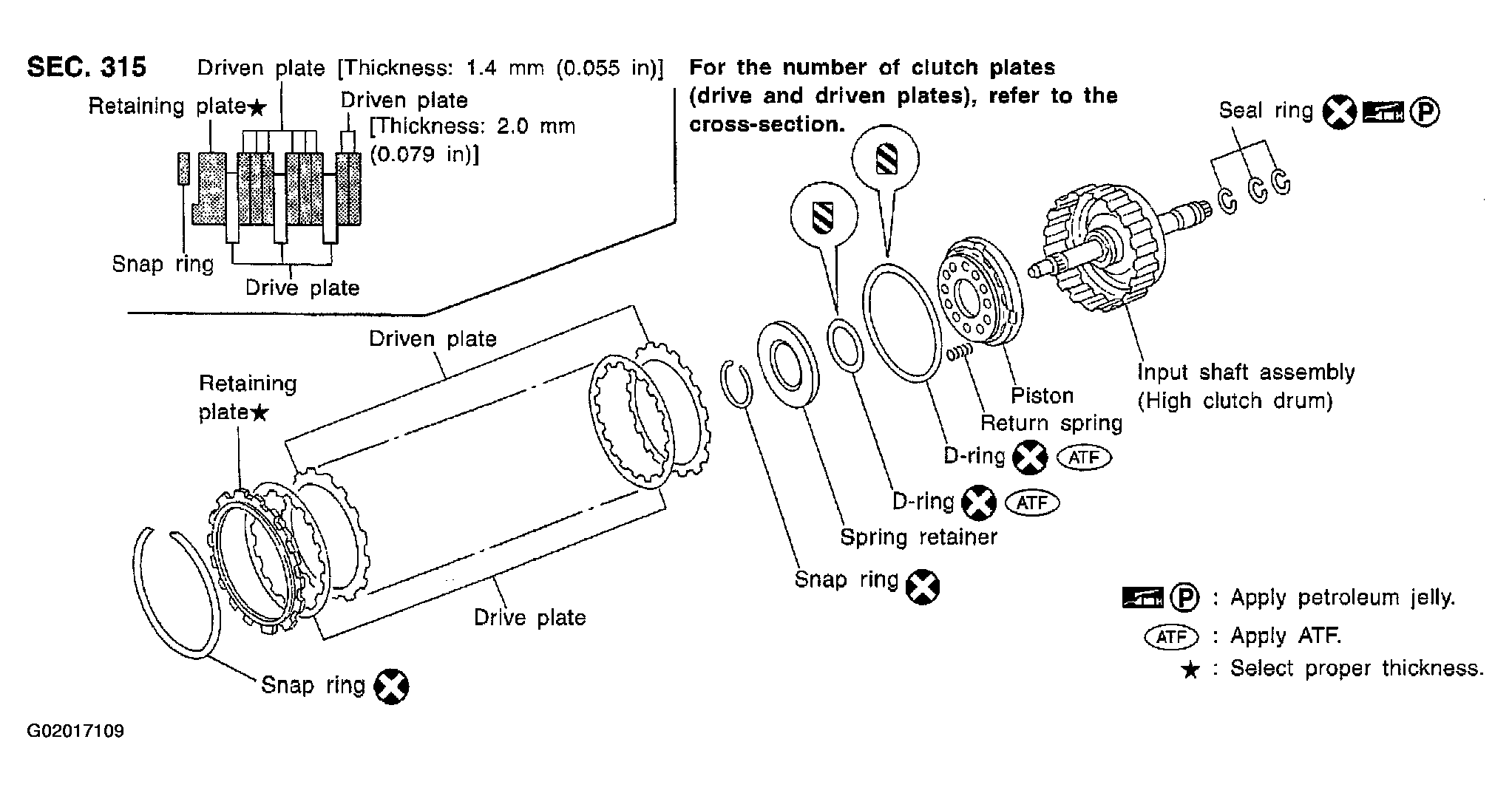

Fig 1: Exploded View Of High Clutch Components
G02017109Courtesy of NISSAN MOTOR CO., U.S.A.
