Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> Repair For Component Parts >> Low & Reverse Brake >> Components

Low & Reverse Brake: Components

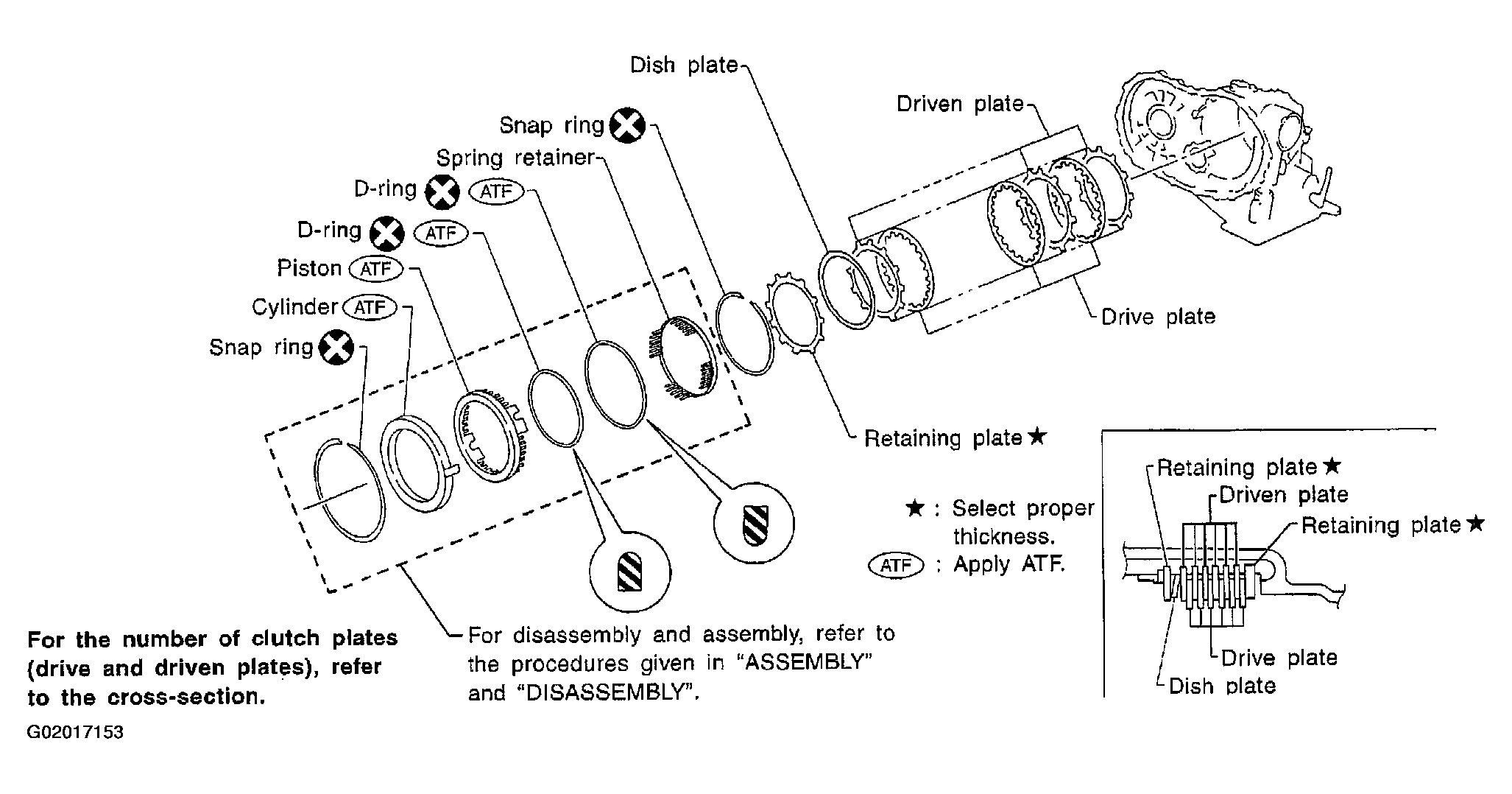

Fig 1: Exploded View Of Low And Reverse Brake Components
G02017153Courtesy of NISSAN MOTOR CO., U.S.A.
