Reverse Clutch: Components

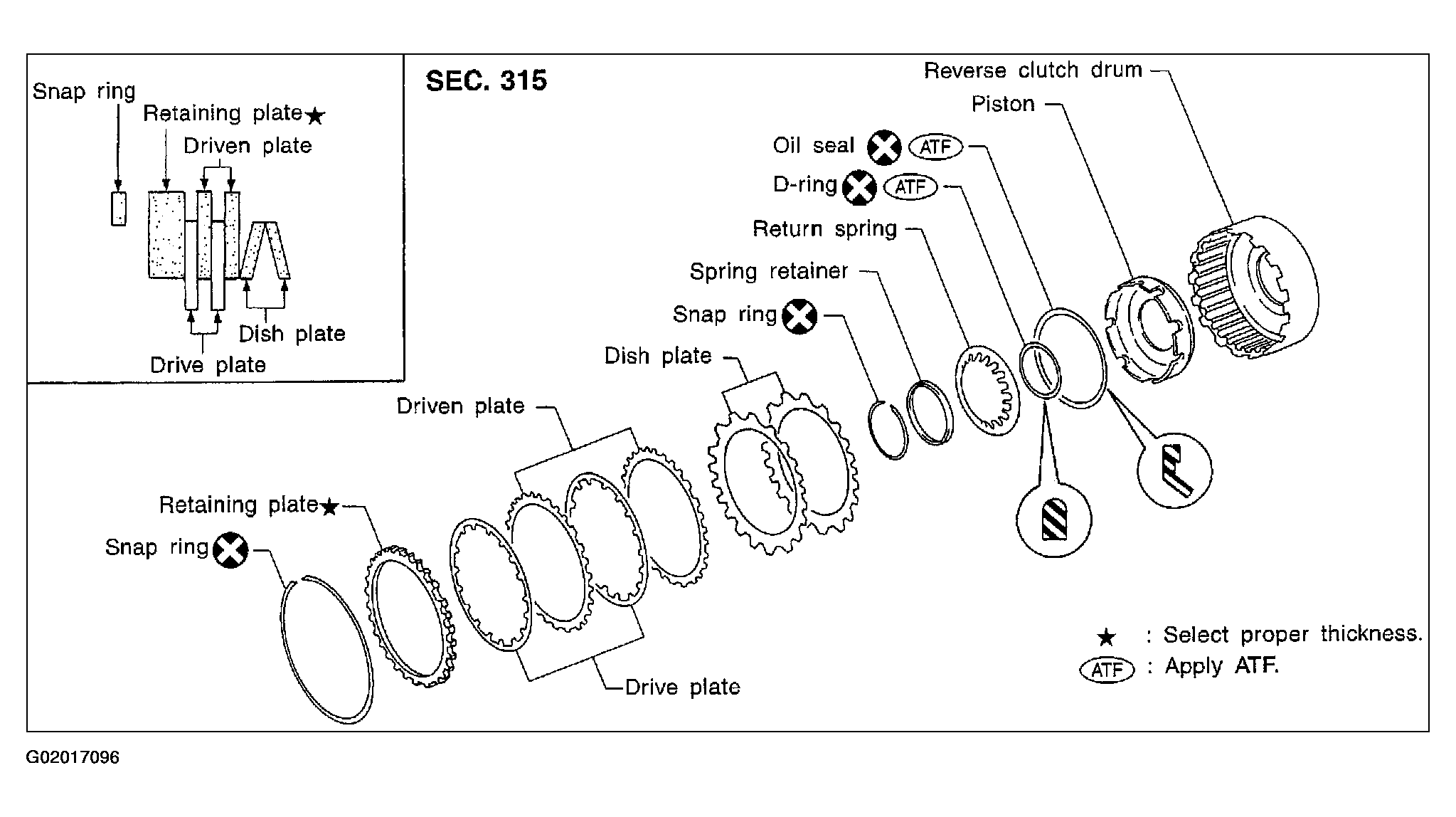

Fig 1: Exploded View Of Reverse Clutch Components And Torque Specifications

G02017096

Courtesy of NISSAN MOTOR CO., U.S.A.
