Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

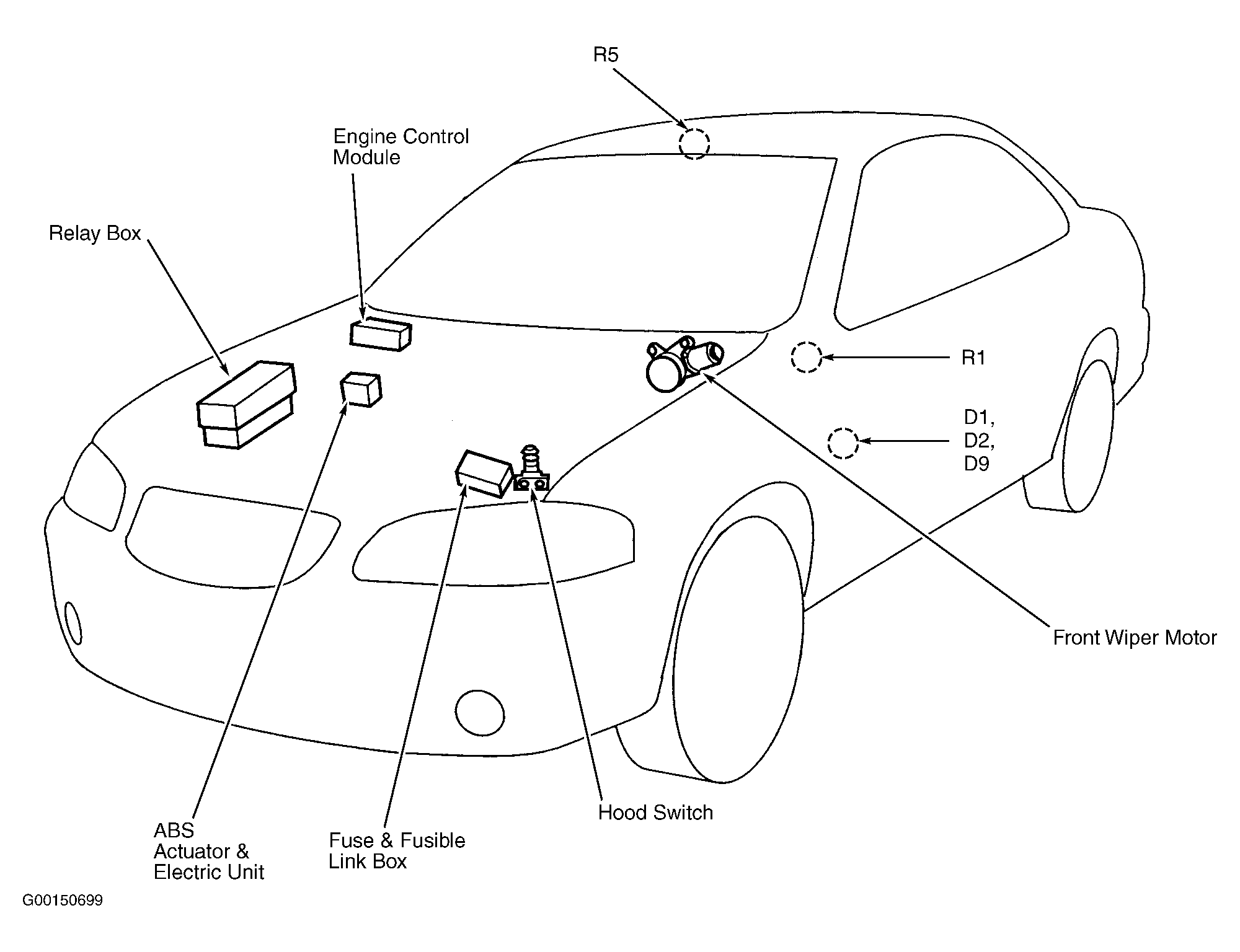

| ABS Actuator & Electric Unit | At right rear of engine compartment. See Figure. |

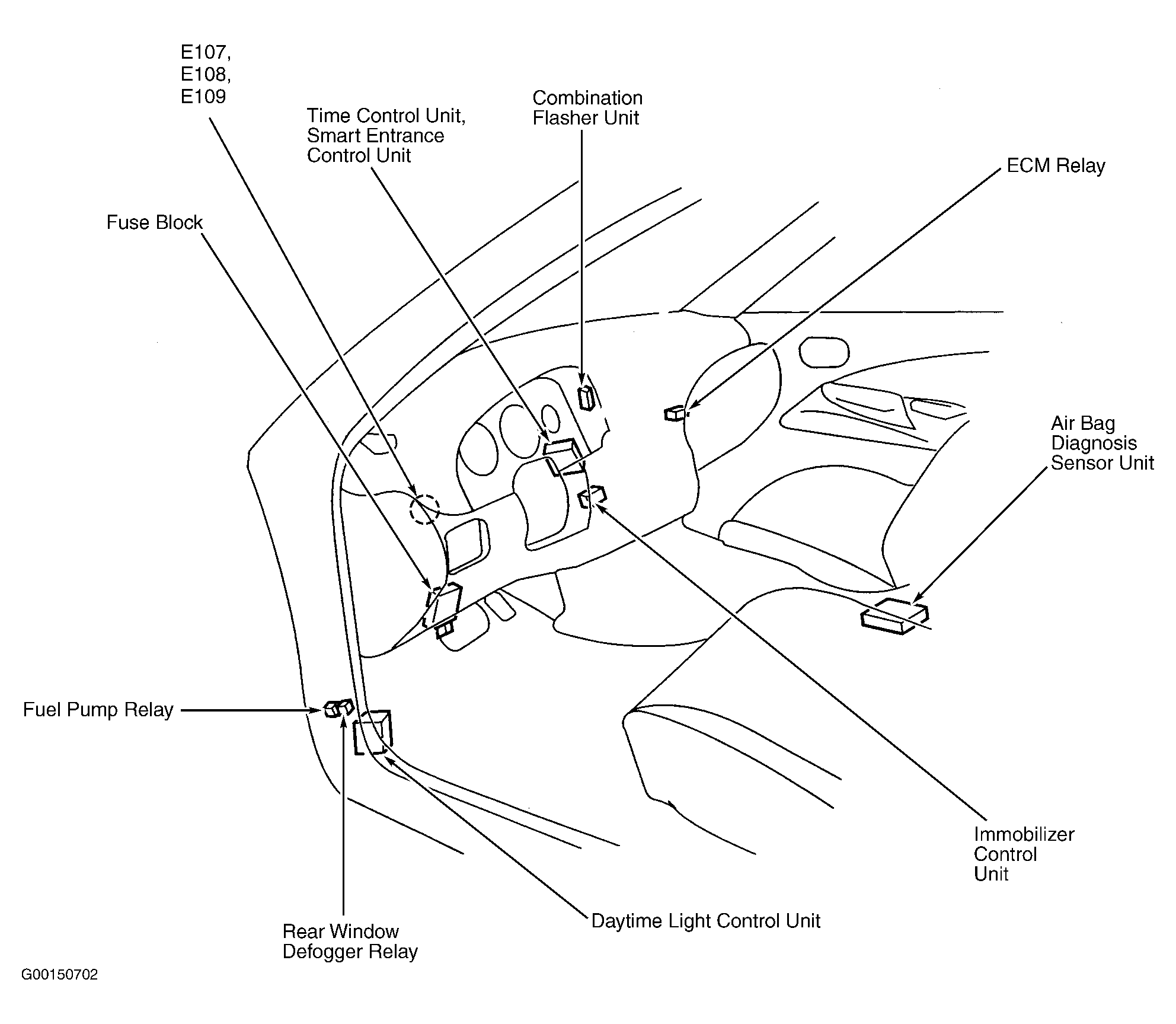

| Air Bag Diagnosis Sensor Unit | Below center floor console. See Figure. |
| Combination Flasher Unit | Behind center of dash. See Figure. |
| Daytime Light Control Unit | Behind left kick panel. See Figure. |
| Engine Control Module | On right side of firewall. See Figure. |
| Immobilizer Control Unit | At top of steering column. See Figure. |
| Smart Entrance Control Unit | Behind center of dash. See Figure. |
| Time Control Unit | Behind center of dash. See Figure. |
| Transmission Control Module | Behind right kick panel. |
