Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starters >> Trouble Shooting >> Work Flow

Work Flow

NOTE: For minimum specification of cranking voltage referencing coolant temperature, see MINIMUM SPECIFICATION OF CRANKING VOLTAGE REFERENCING COOLANT TEMPERATURE .

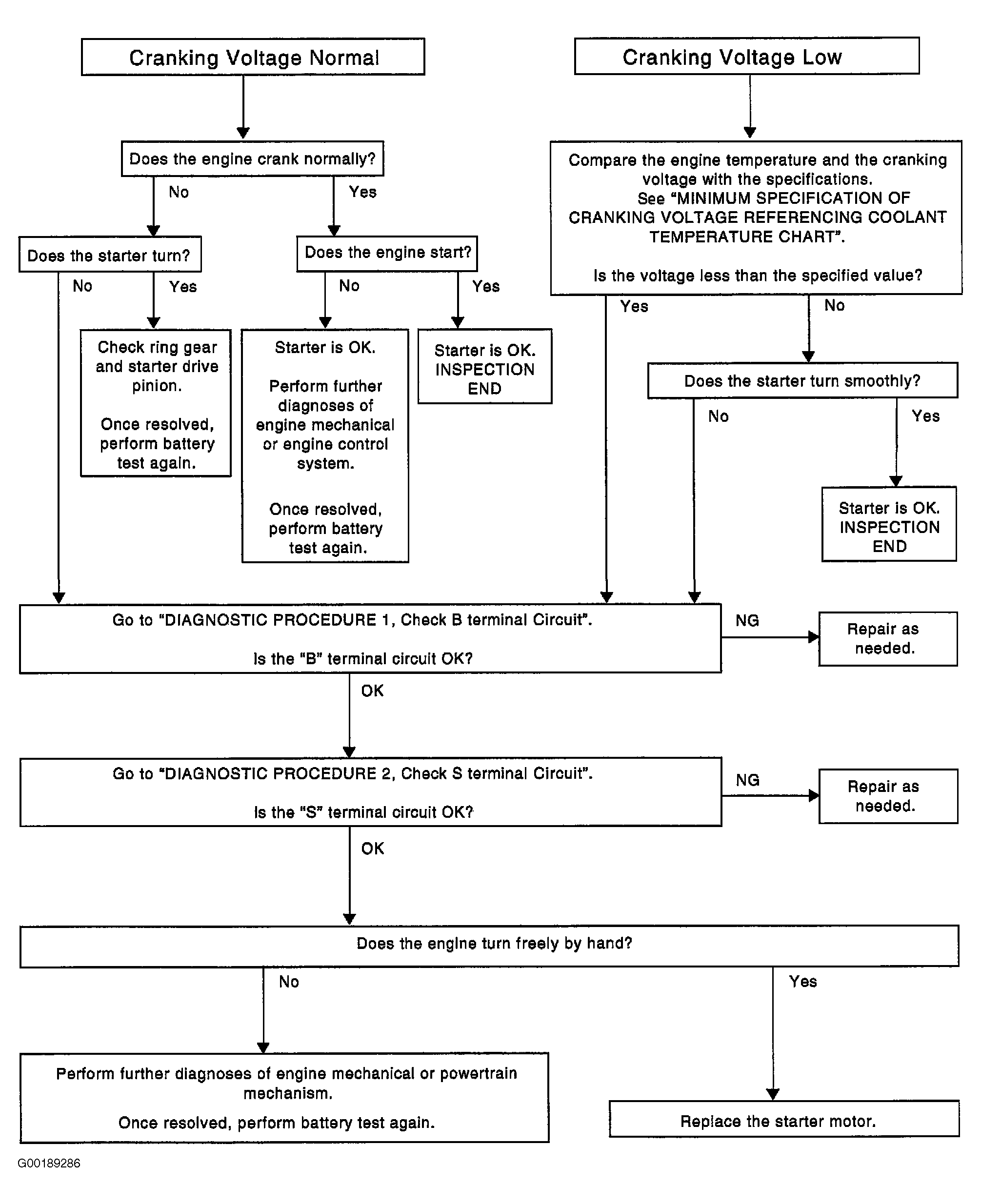

Fig 1: Identifying Work Flow
G00189286Courtesy of NISSAN MOTOR CO., U.S.A.
