ASCD Indicator: Wiring Diagram

NOTE: For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

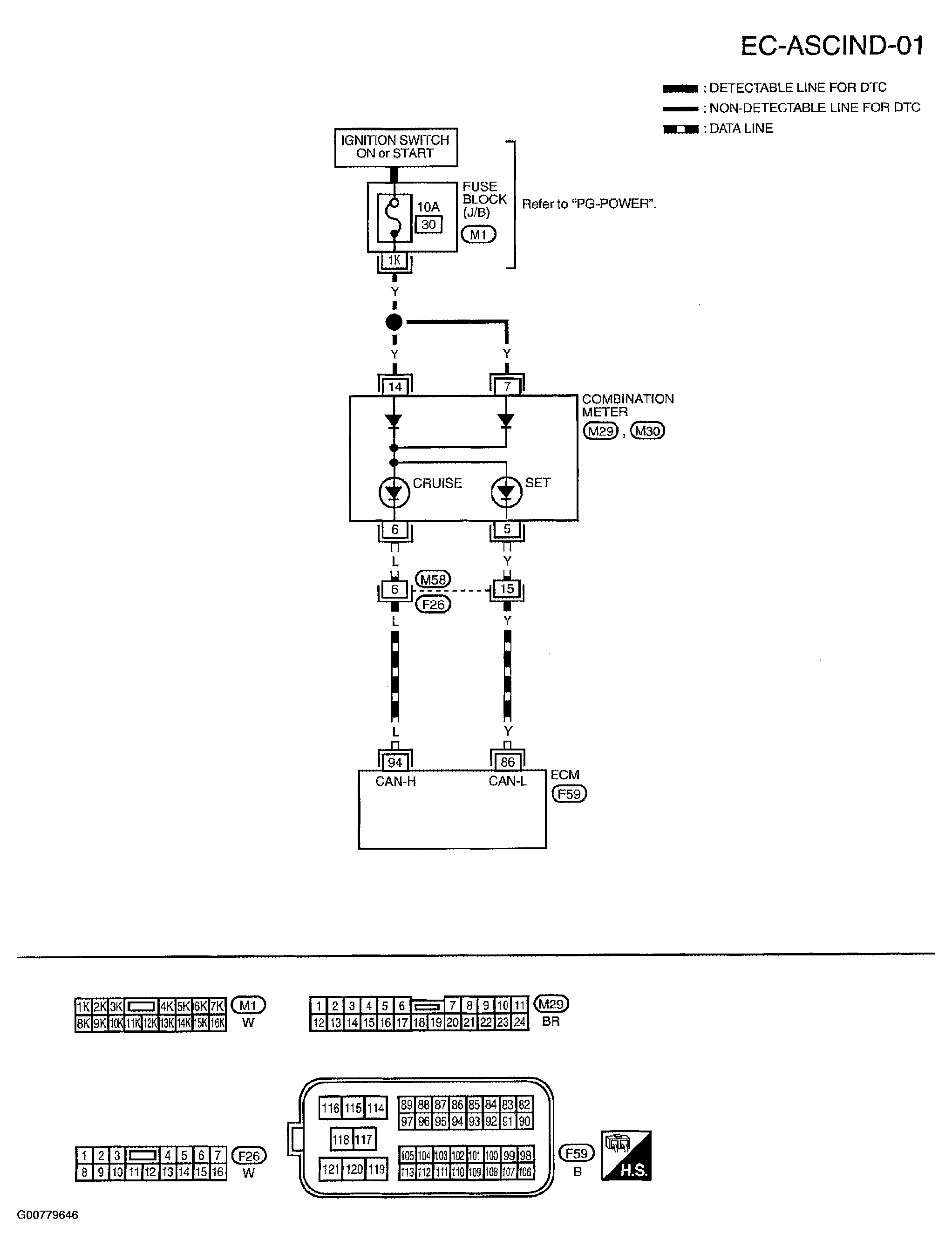

Fig 1: ASCD Indicator Wiring Diagram
G00779646Courtesy of NISSAN MOTOR CO., U.S.A.
