Fuel Tank Temperature Sensor

Check resistance by heating with hot water or heat gun as shown in the figure.

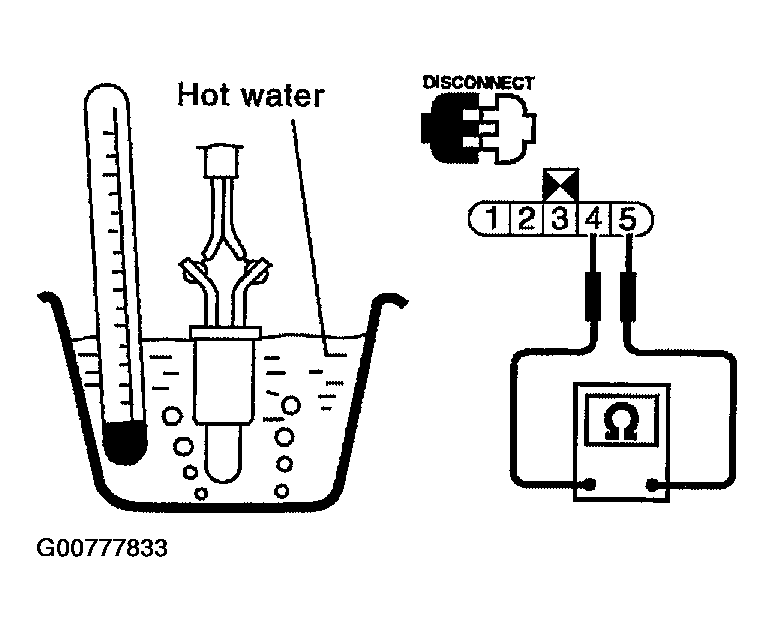

Fig 1: Checking Fuel Tank Temperature Sensor Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.

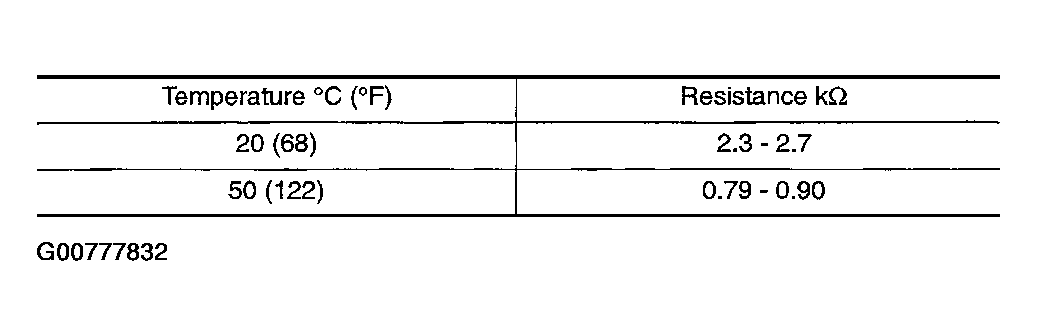

Fig 2: Fuel Tank Temperature Sensor Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
