DTC P0181: FTT Sensor: Wiring Diagram

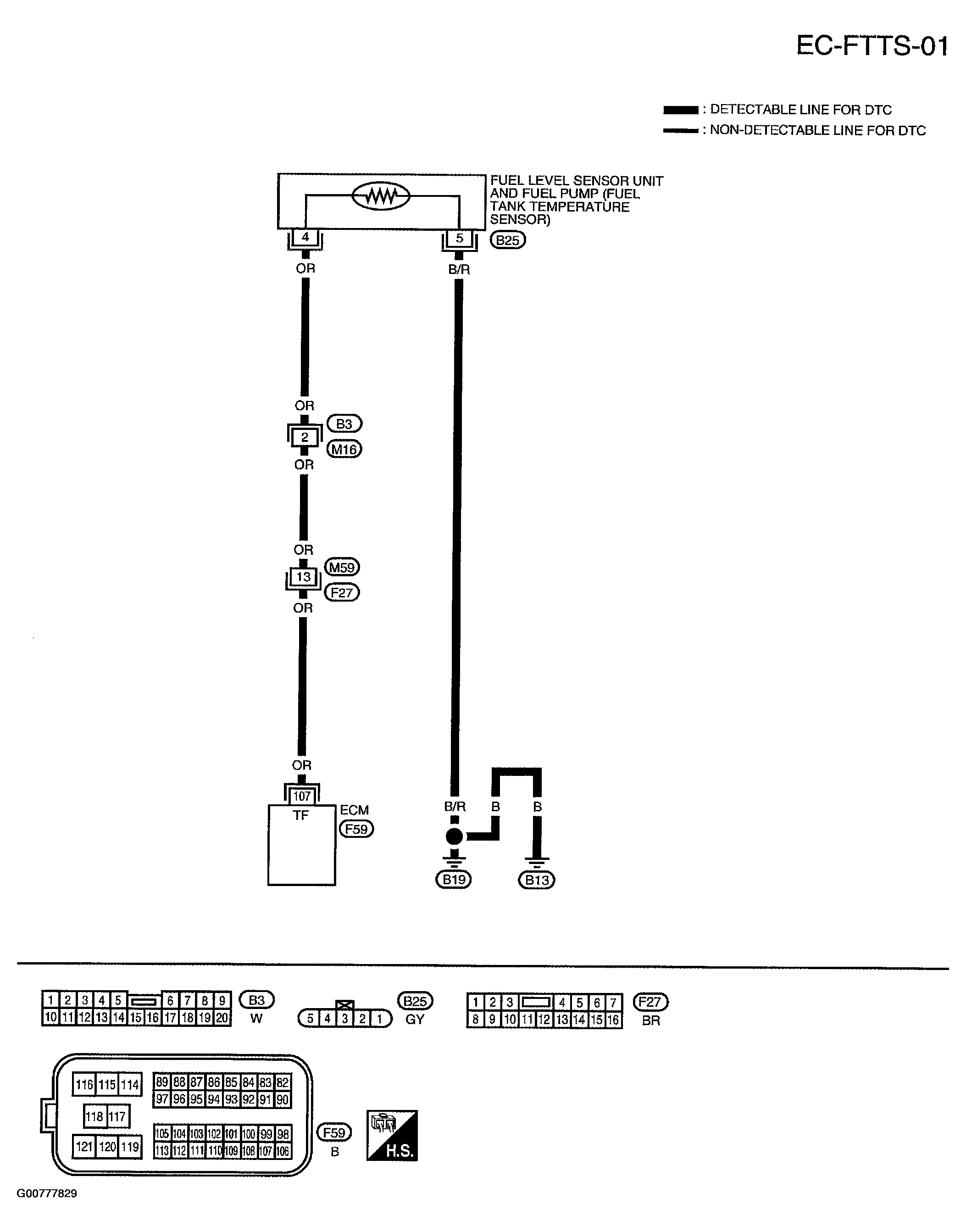

Fig 1: FTT Sensor Wiring Diagram

G00777829

Courtesy of NISSAN MOTOR CO., U.S.A.
