Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals + and -.

    Resistance: Above 1 MΩ at 25°C (77°F)

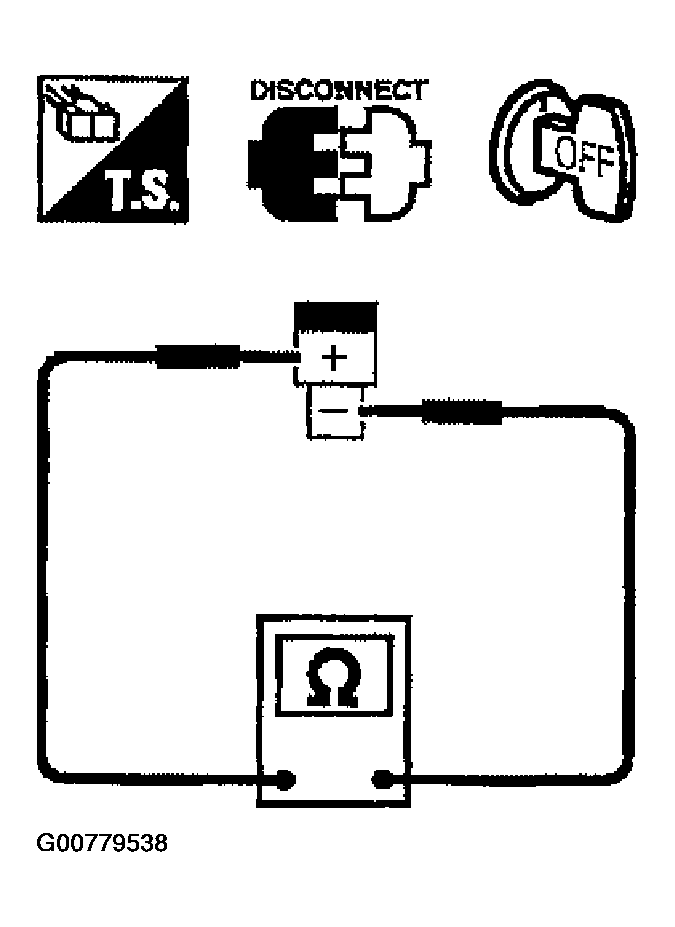

    4. Fig 1: Checking Resistance Between Condenser Terminals + & -
    G00779538Courtesy of NISSAN MOTOR CO., U.S.A.
