Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

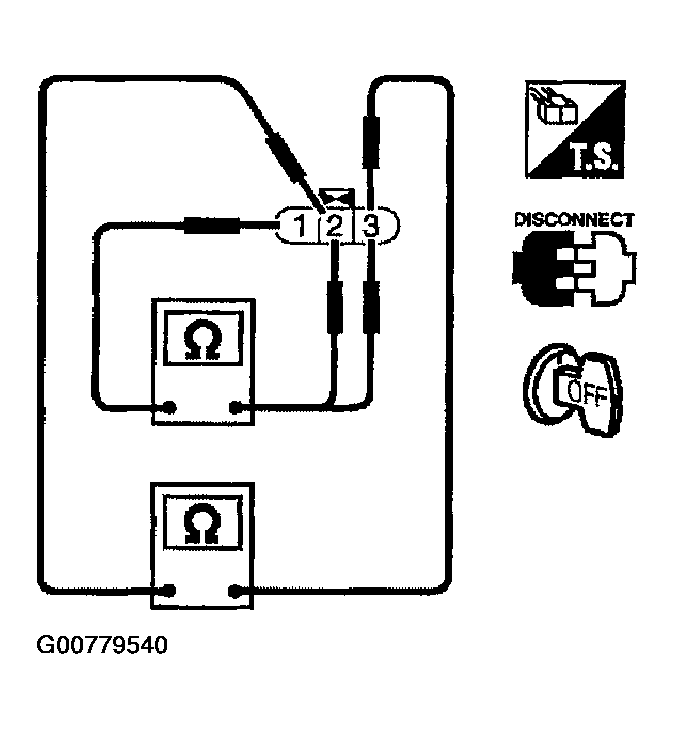

    4. Fig 1: Checking Resistance Between Ignition Coil Terminals
    G00779540Courtesy of NISSAN MOTOR CO., U.S.A.

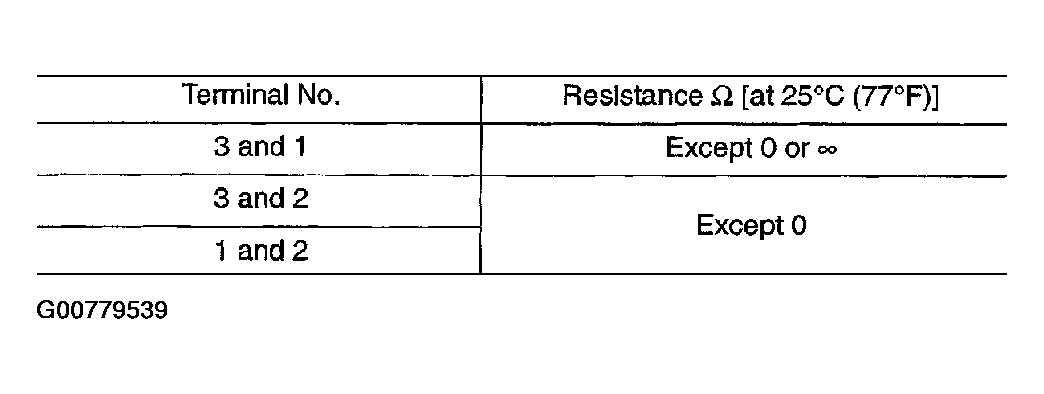

    Fig 2: Ignition Coil Terminals Resistance Table
    G00779539Courtesy of NISSAN MOTOR CO., U.S.A.
