Home >> Nissan-Datsun >> 2004 >> Sentra SE-R >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Qr25DE >> Trouble Diagnosis >> CONSULT-II Function >> Active Test Mode >> Test Item

Test Item

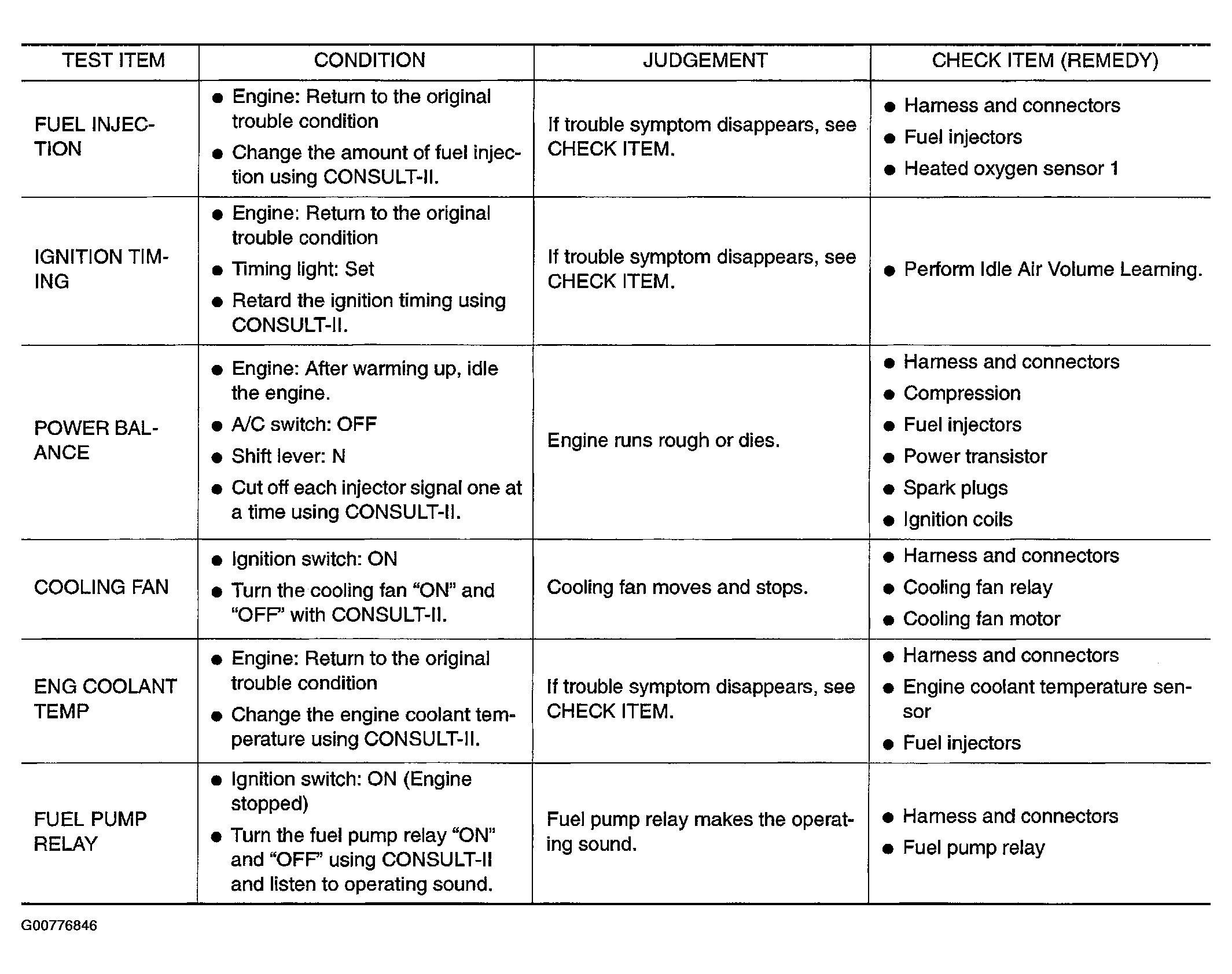

Fig 1: Active Test Mode (1 Of 2)

G00776846

Courtesy of NISSAN MOTOR CO., U.S.A.

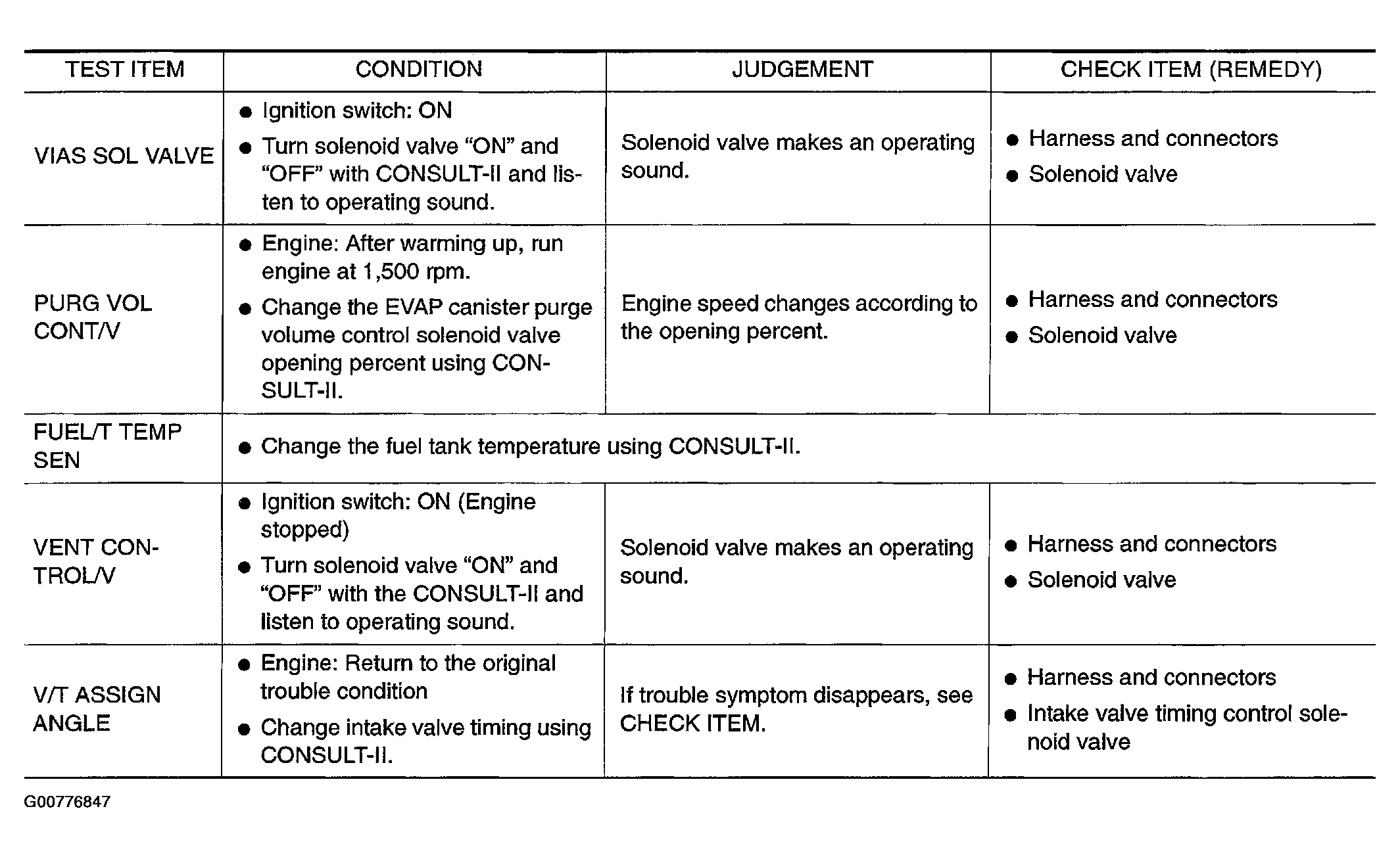

Fig 2: Active Test Mode (2 Of 2)

G00776847

Courtesy of NISSAN MOTOR CO., U.S.A.
