Home >> Nissan-Datsun >> 2004 >> Sentra SE-R >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Qr25DE >> Trouble Diagnosis >> CONSULT-II Function >> Data Monitor (Spec) Mode >> Monitored Item

Monitored Item

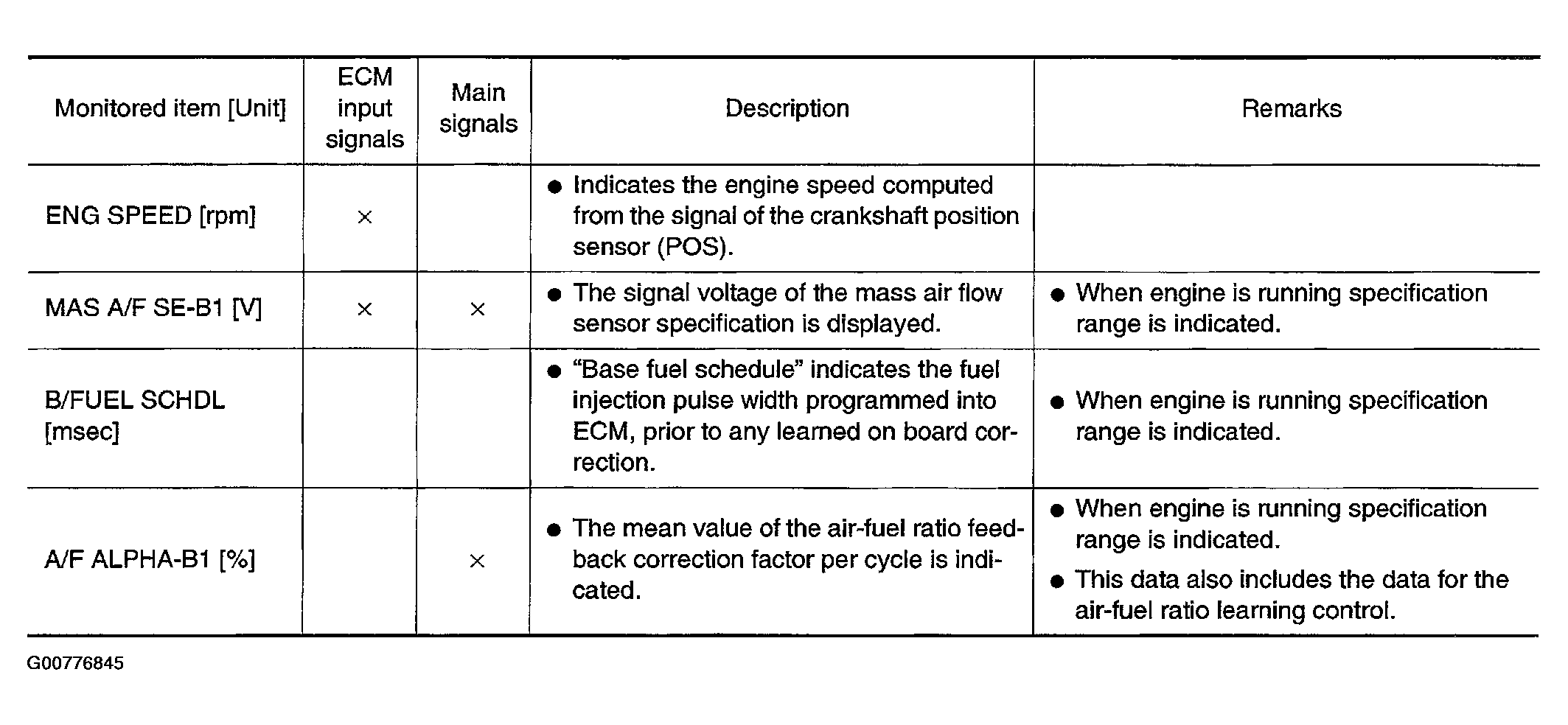

Fig 1: Data Monitor (SPEC) Mode

G00776845

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
