Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the port A  of vacuum pump.
  3. Apply vacuum and make sure that vacuum exists at the port B  .

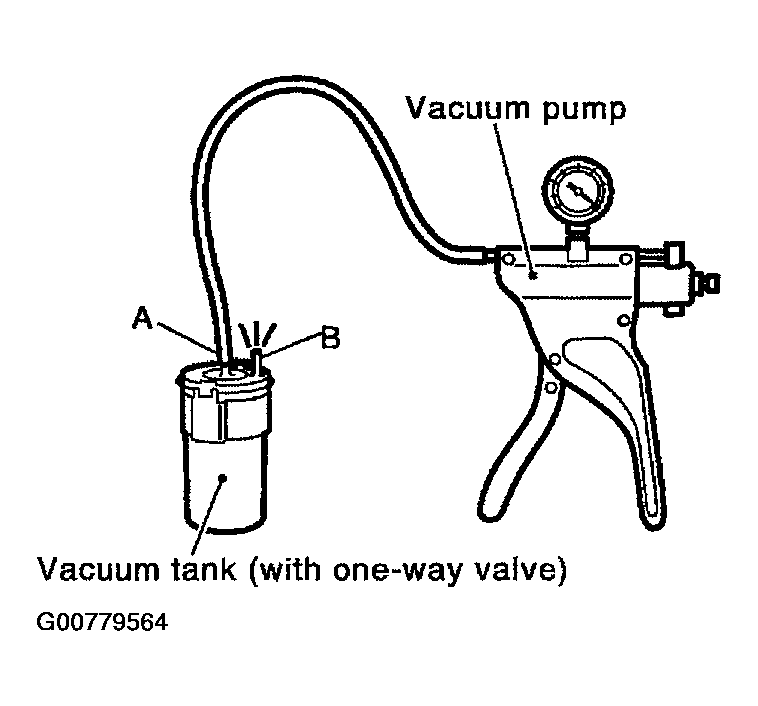

Fig 1: Connecting Vacuum Pump To Port Of Vacuum Pump
G00779564Courtesy of NISSAN MOTOR CO., U.S.A.
