lemon-mirror
:
Home
>>
Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
On Board Diagnostic System Description
>>
Data Monitor Procedure
>>
Data Monitor Mode
Data Monitor Mode

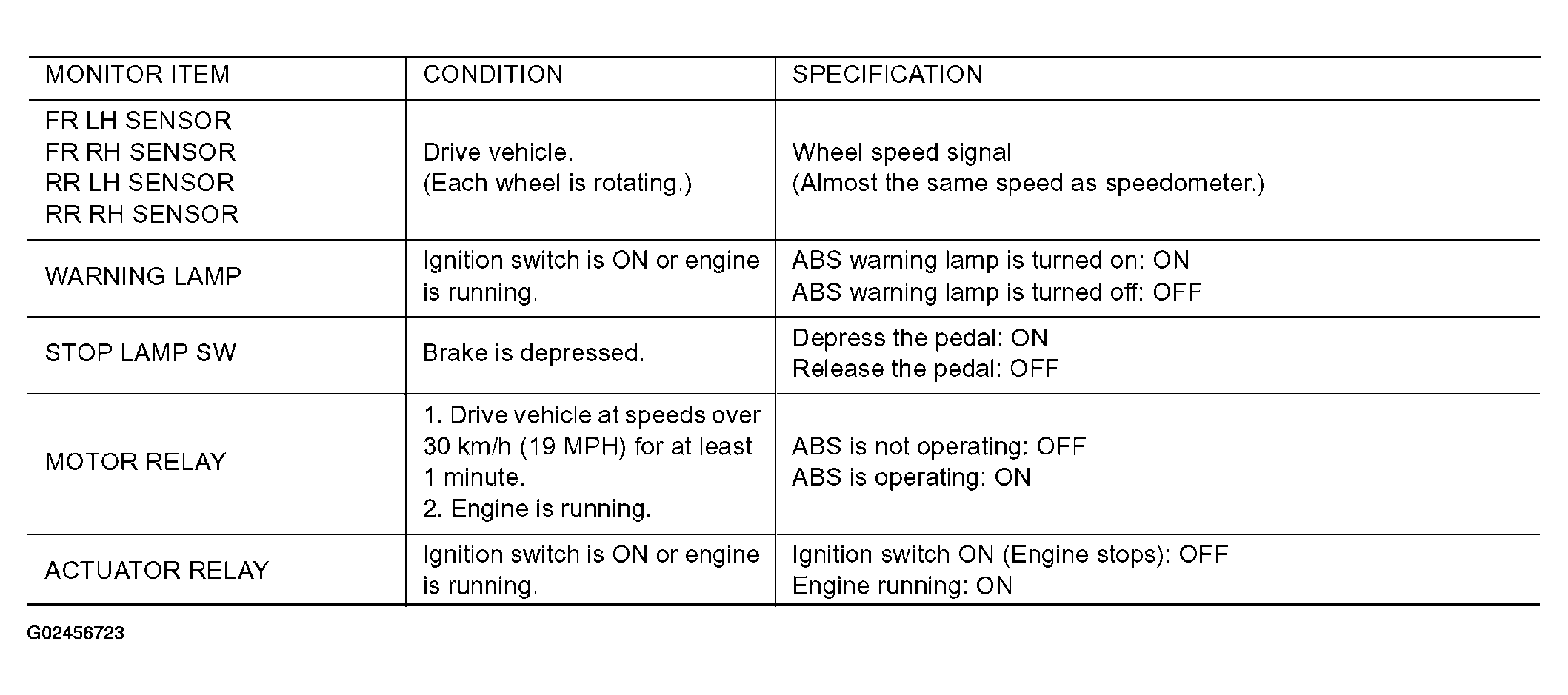

Fig 1: Data Monitor Mode Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

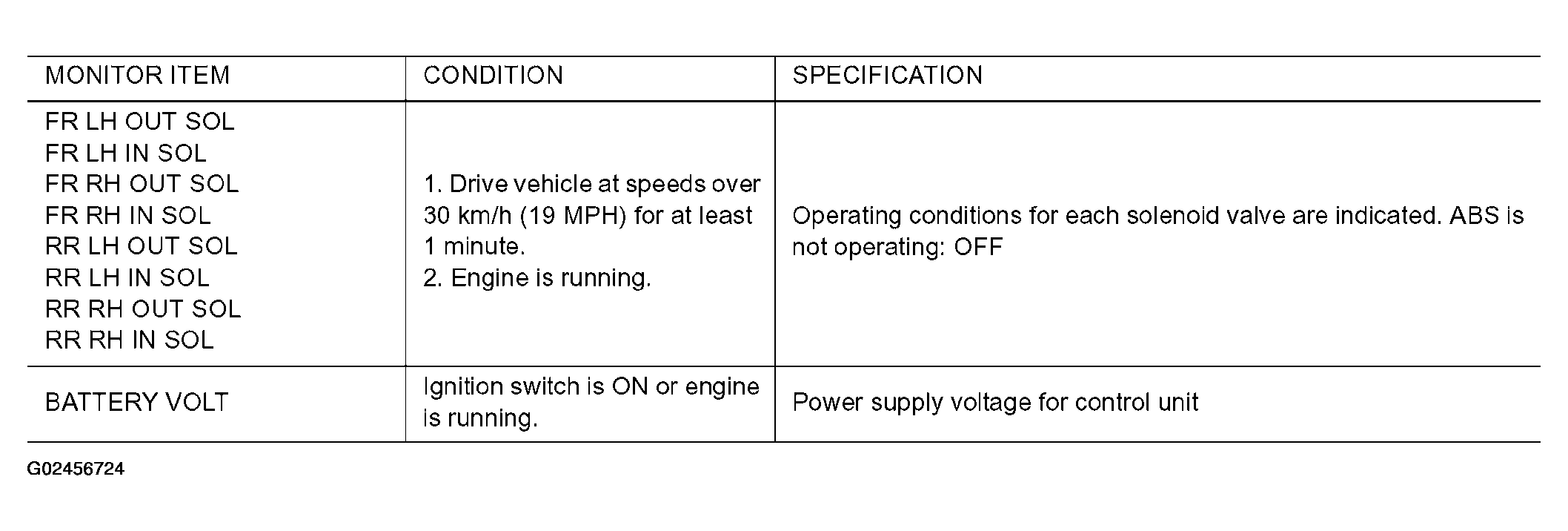

Fig 2: Data Monitor Mode Description Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
