Description
>>
ABS Hydraulic Circuit
ABS Hydraulic Circuit

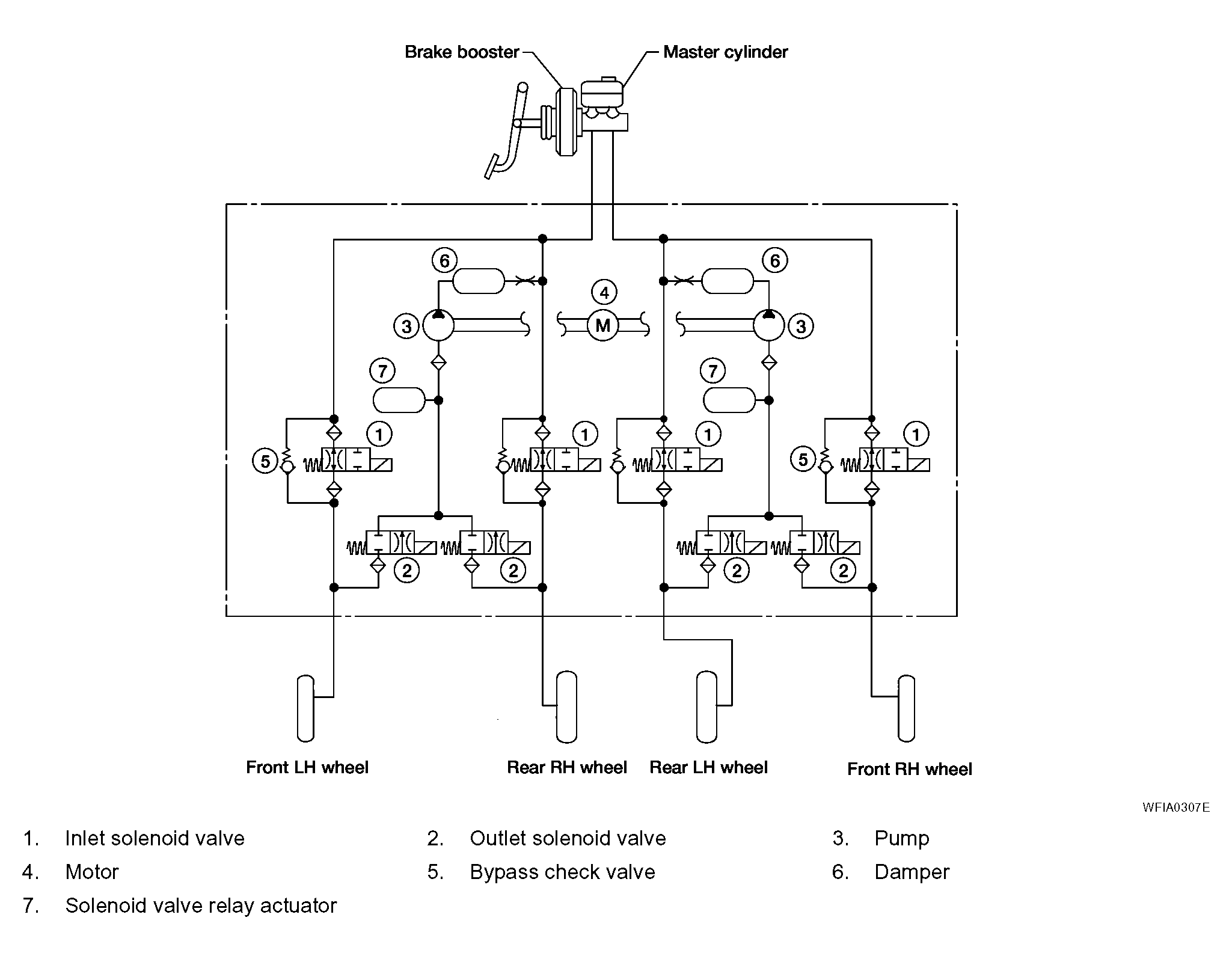

Fig 1: Identifying ABS Hydraulic Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
