Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.

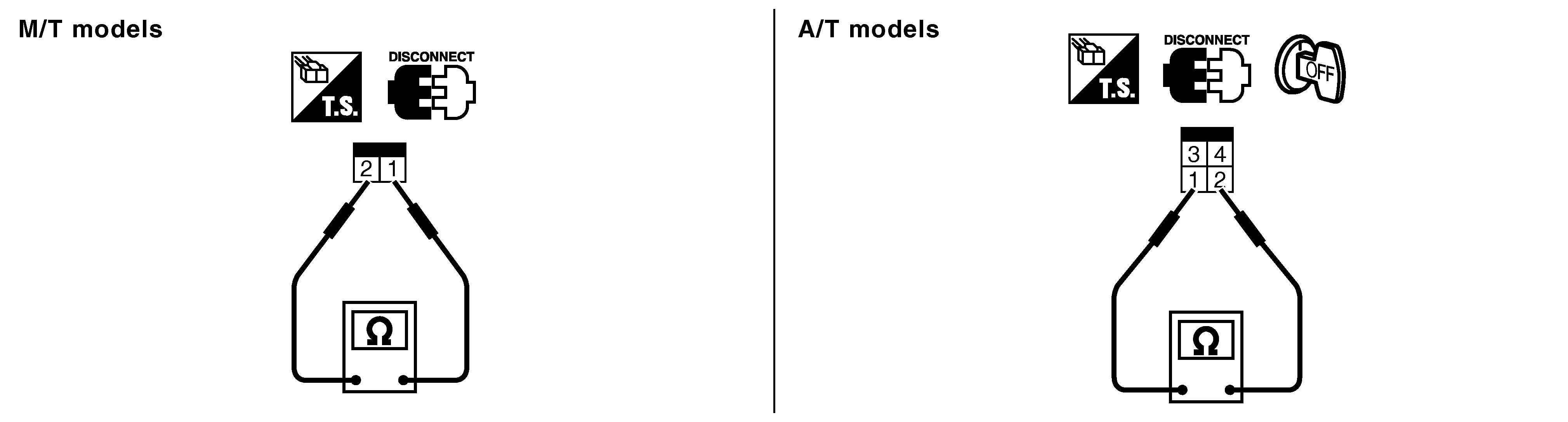

Fig 1: Checking Continuity Between Harness Connector terminals 1 And 2
G04147647Courtesy of NISSAN MOTOR CO., U.S.A.
CONDITION CONTINUITY REFERENCE

Condition Continuity
Brake pedal: Fully released Should not exist
Brake pedal: Slightly depressed Should exist

If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL AND BRACKET ", and perform step 3 again.
