Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals + and -.

    Resistance: Above 1 MΩ [at 25°C (77°F)]

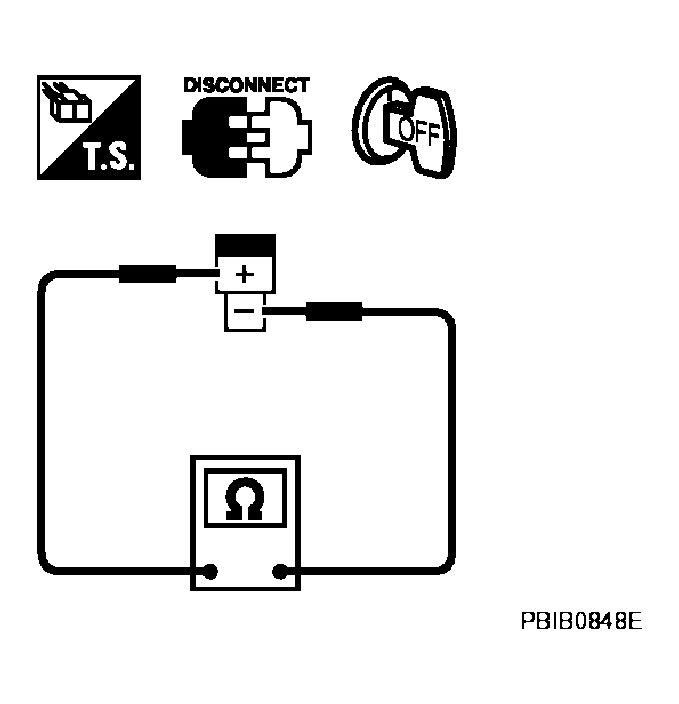

    Fig 1: Checking Resistance Between Condenser Terminals + And -
    G04192289Courtesy of NISSAN MOTOR CO., U.S.A.
