Engine Control System - Introduction (Qr25DE)
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application

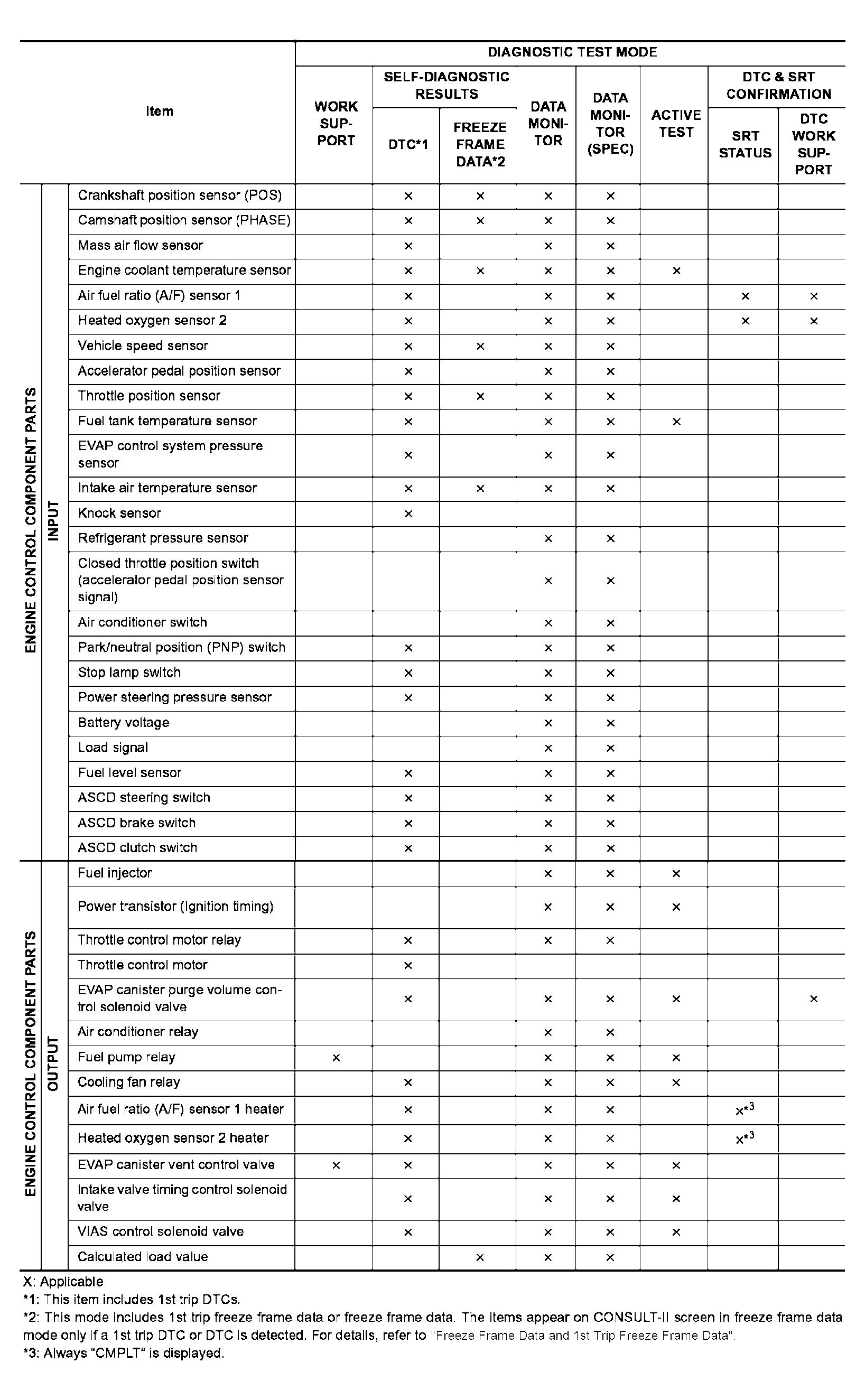

Fig 1: Engine Control Component Parts/Control Systems Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
