Accelerator Control System: Components

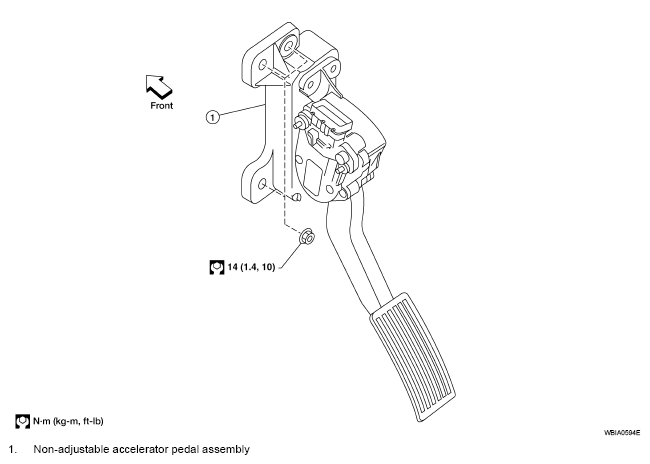

Fig 1: Accelerator Control System With Torque Specification
G04897489
CAUTION:
  • Do not disassemble the accelerator pedal assembly.
  • Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
  • Avoid damage from dropping the accelerator pedal assembly during handling.
  • Keep the accelerator pedal assembly away from water.
