Engine Control Component Parts/Control Systems Application

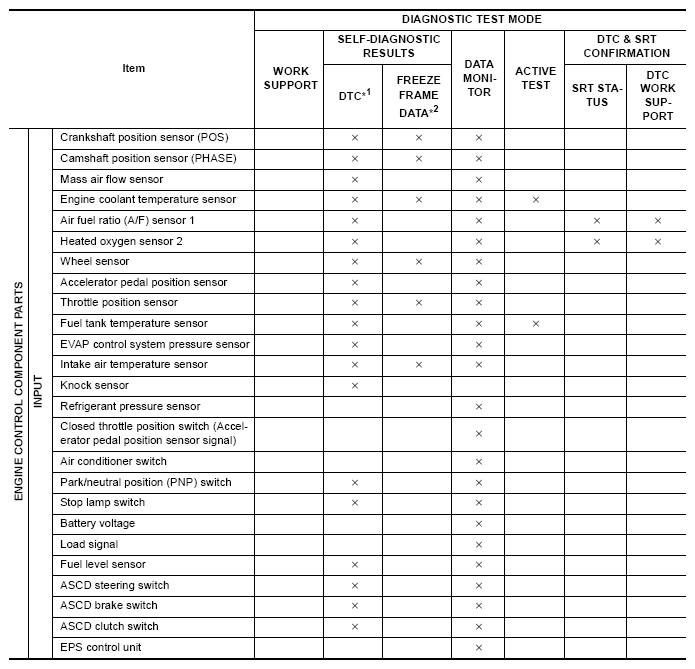

Fig 1: Engine Control Component Control Systems Application Chart (1 Of 2)
G04925776Courtesy of NISSAN MOTOR CO., U.S.A.

For Freeze Frame Data And 1St Trip Freeze Frame Data, go to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .

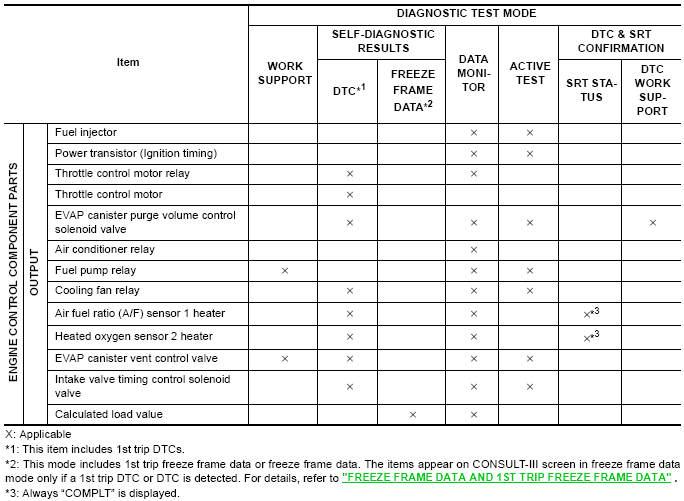

Fig 2: Engine Control Component Control Systems Application Chart (2 Of 2)
G04925777Courtesy of NISSAN MOTOR CO., U.S.A.
