Work Procedure

CHECK IGNITION TIMING

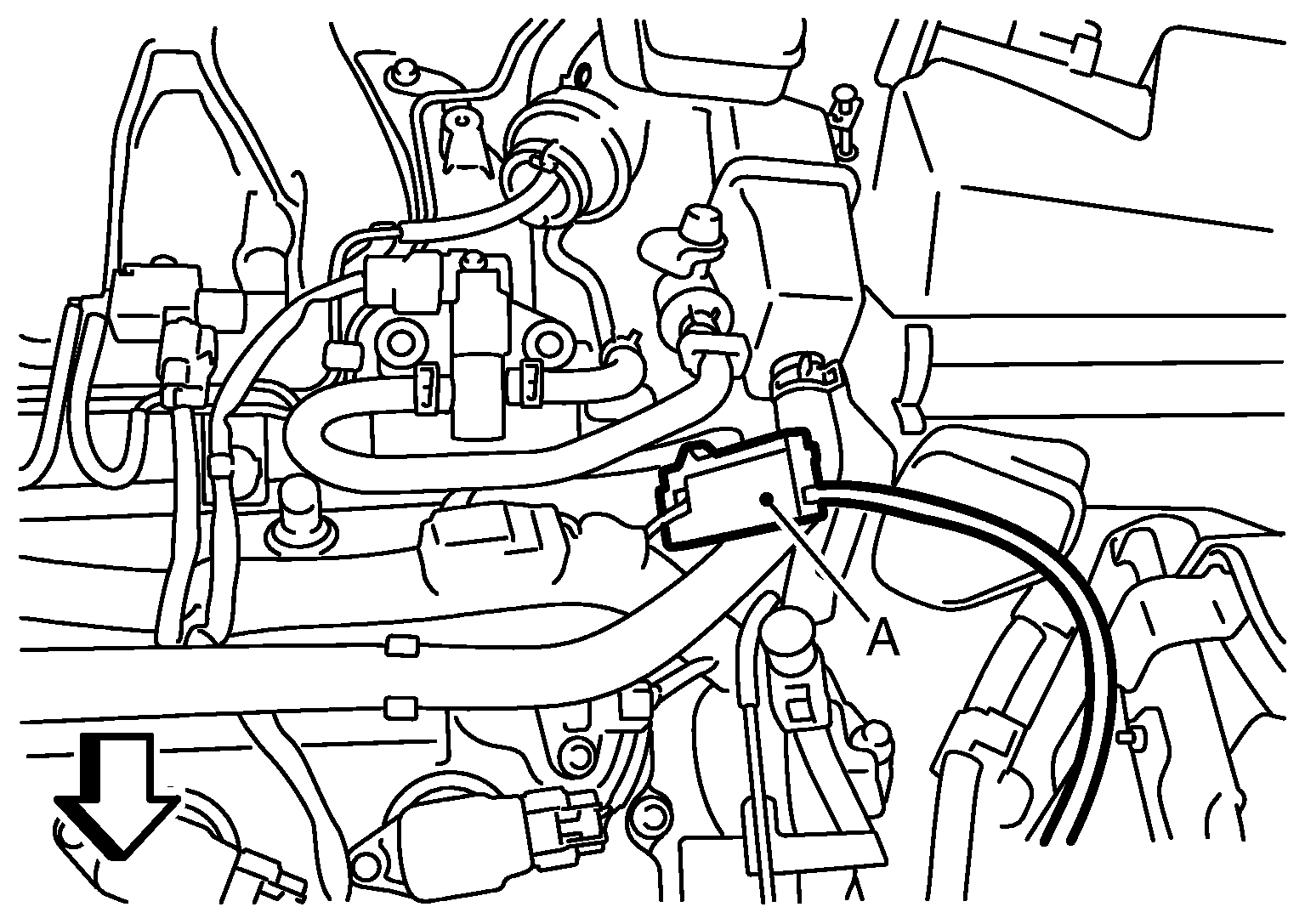

1. Attach timing light to loop wires as shown in the figure below.
  - Timing light (A)
  - <=: Vehicle front

    Fig 1: Identifying Timing Light
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
  INSPECTION END

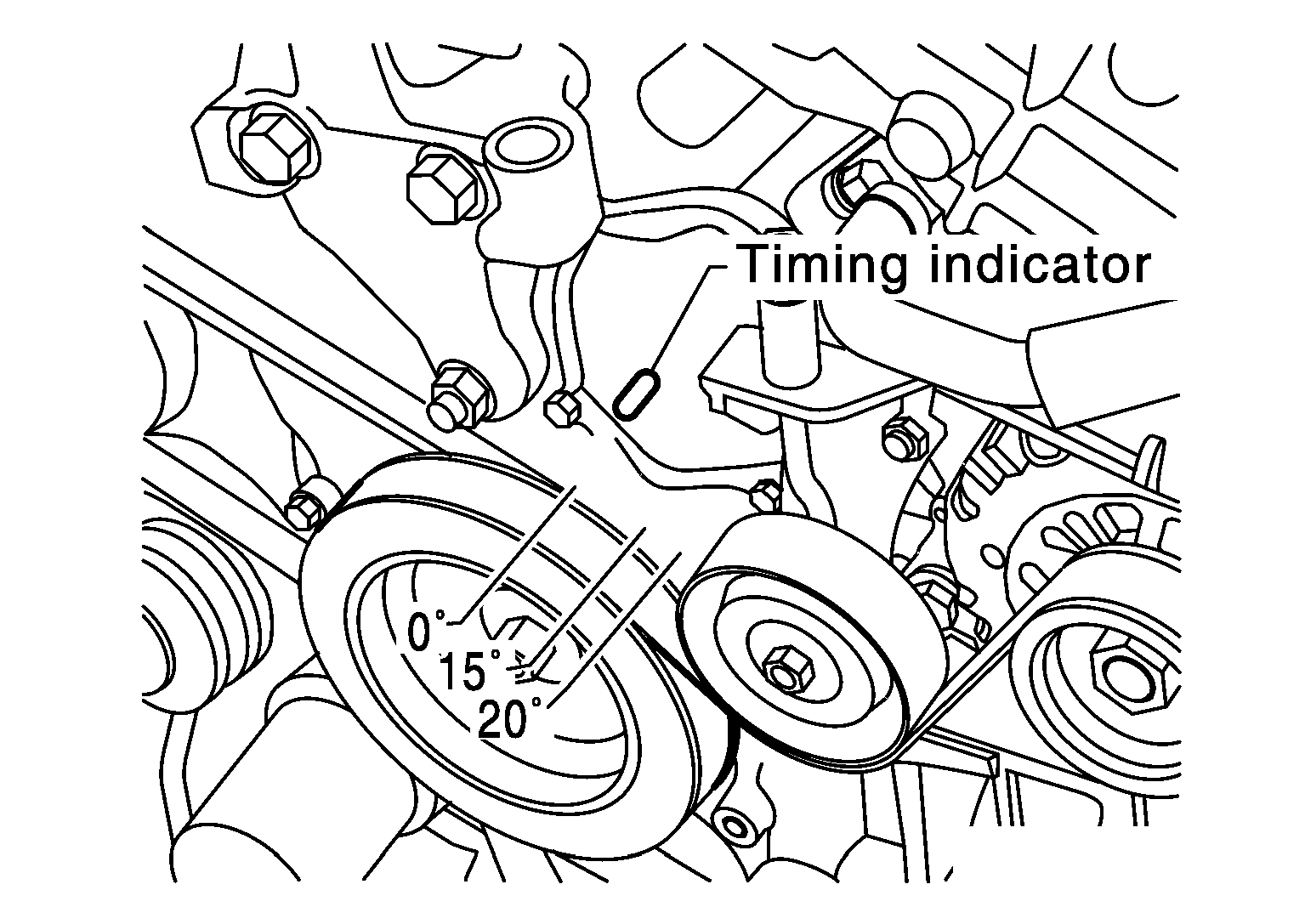

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN MOTOR CO., U.S.A.
