Removal and Installation: Removal

  1. Remove battery. Refer to "EXPLODED VIEW ".
  2. Disconnect ECM harness connectors. Refer to "HARNESS CONNECTOR ".
  3. Remove ECM mounting nuts (1), and then remove ECM (A).

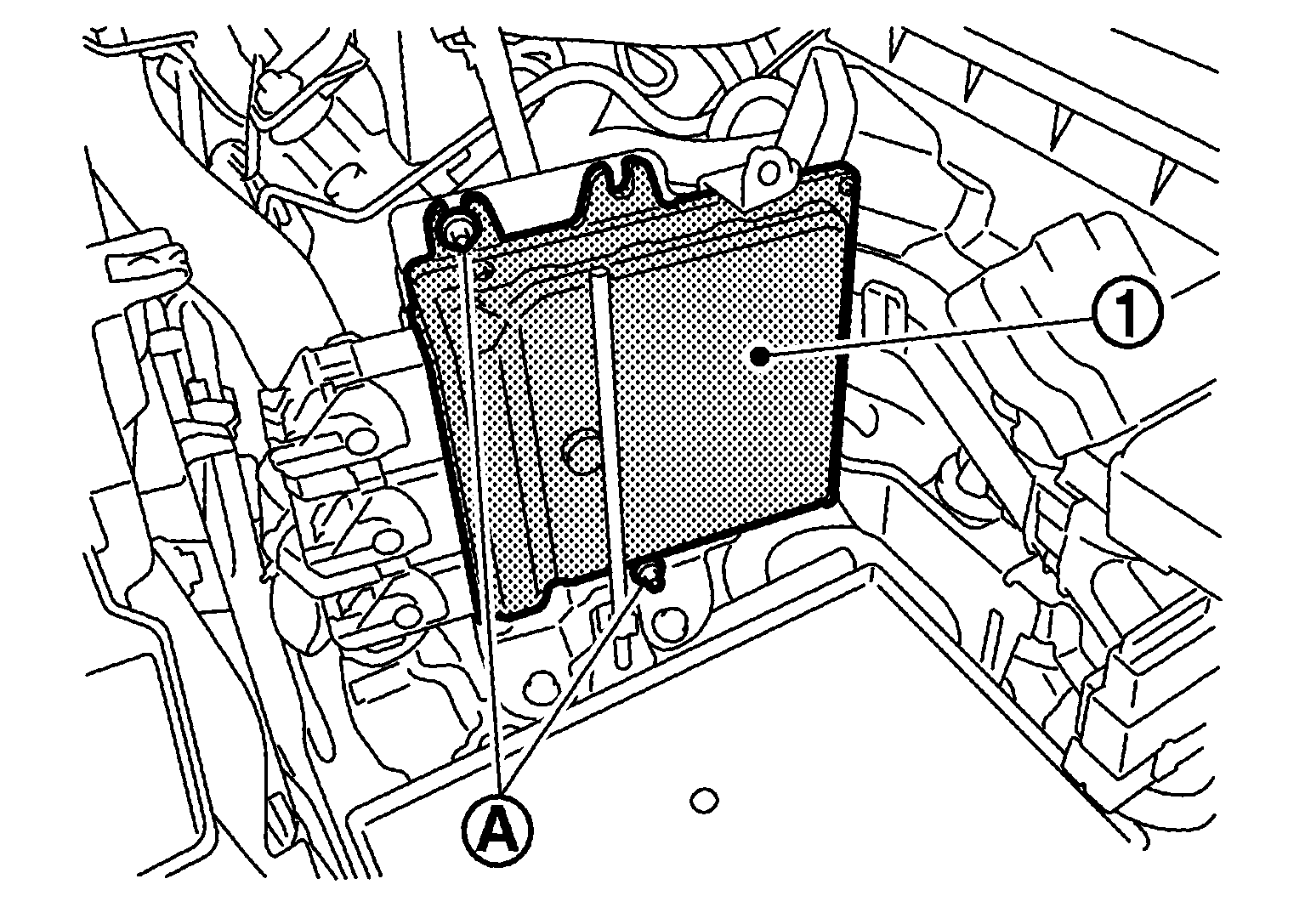

    Fig 1: Identifying ECM With Mounting Nuts
    G07051302Courtesy of NISSAN MOTOR CO., U.S.A.
