System - Basic Engine Control System

Fig 1: Basic Engine Control System Symptom Chart (1 Of 2)
G07051291Courtesy of NISSAN MOTOR CO., U.S.A.

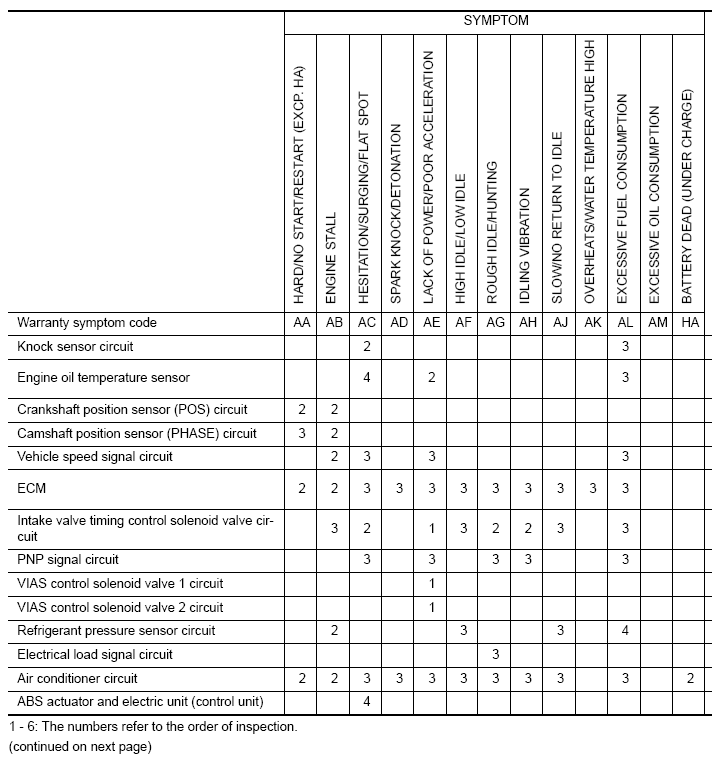

Fig 2: Basic Engine Control System Symptom Chart (2 Of 2)
G07051292Courtesy of NISSAN MOTOR CO., U.S.A.
