Home >> Oldsmobile >> 1997 >> Cutlass Base >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Fuel Tank Pressure Sensor >> Cutlass & MALIBU

Cutlass & MALIBU

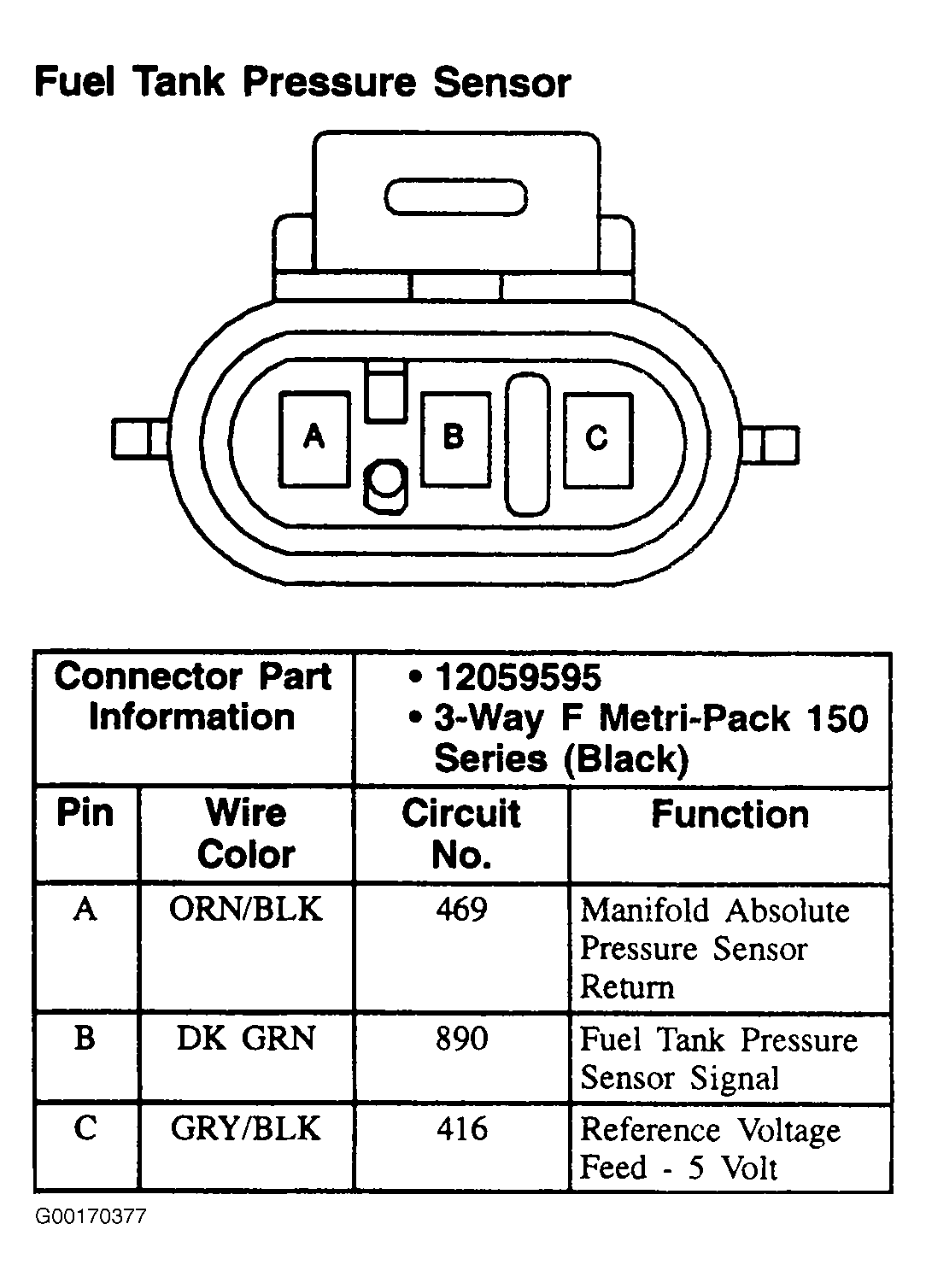

Fig 1: Fuel Tank Pressure Sensor (Cutlass & Malibu) - 3-Pin Connector (Black)
G00170377Courtesy of GENERAL MOTORS CORP.
