Connector Terminal Identification
>>
Ignition Control Module
>>
Cutlass & MALIBU
>>
Ignition Control Module (2.4L)
Ignition Control Module (2.4L)

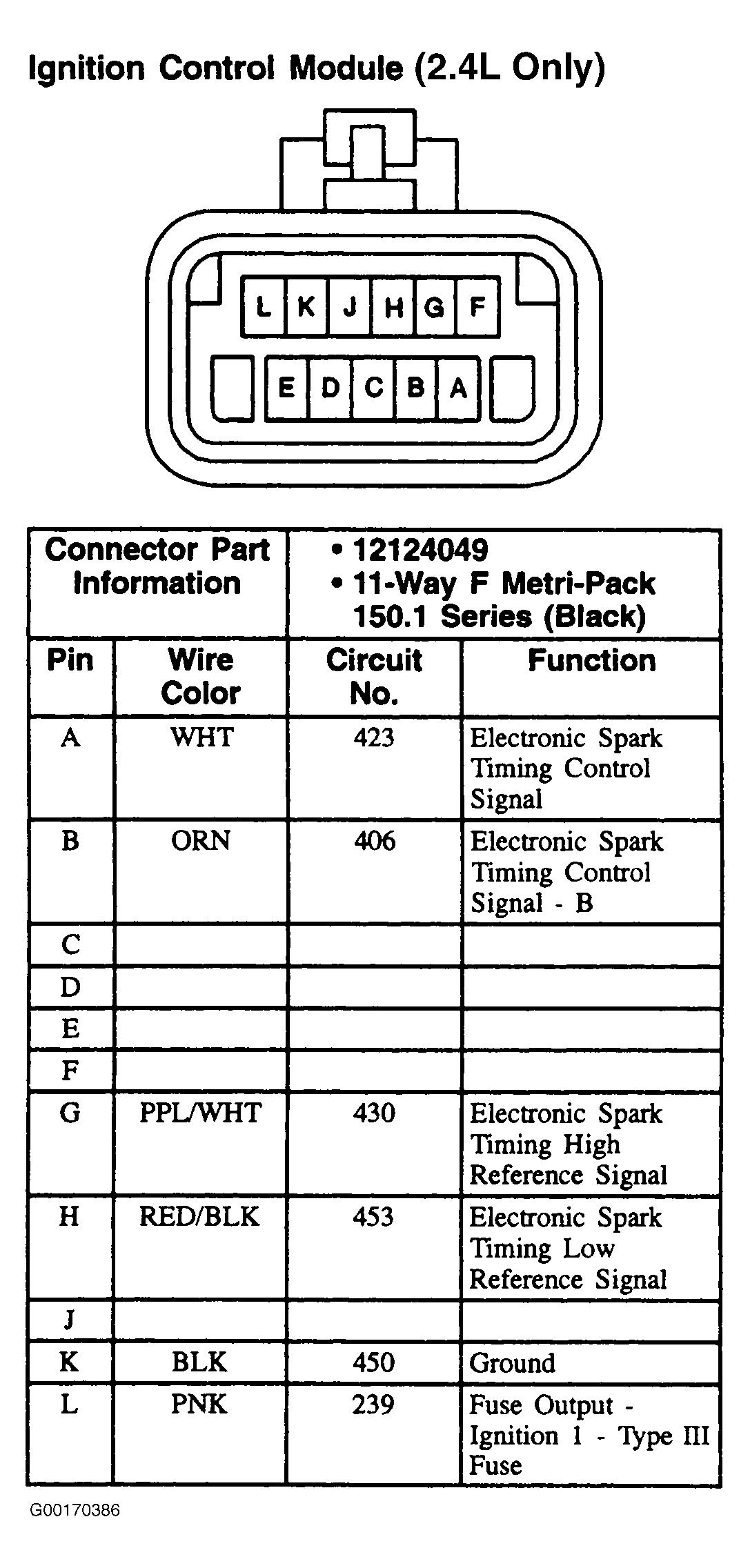

Fig 1: Ignition Control Module (2.4L - Cutlass & Malibu) - 11-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
