Connector Terminal Identification
>>
Ignition Control Module
>>
Cutlass & MALIBU
>>
Ignition Control Module Connector C1 (3.1L)
Ignition Control Module Connector C1 (3.1L)

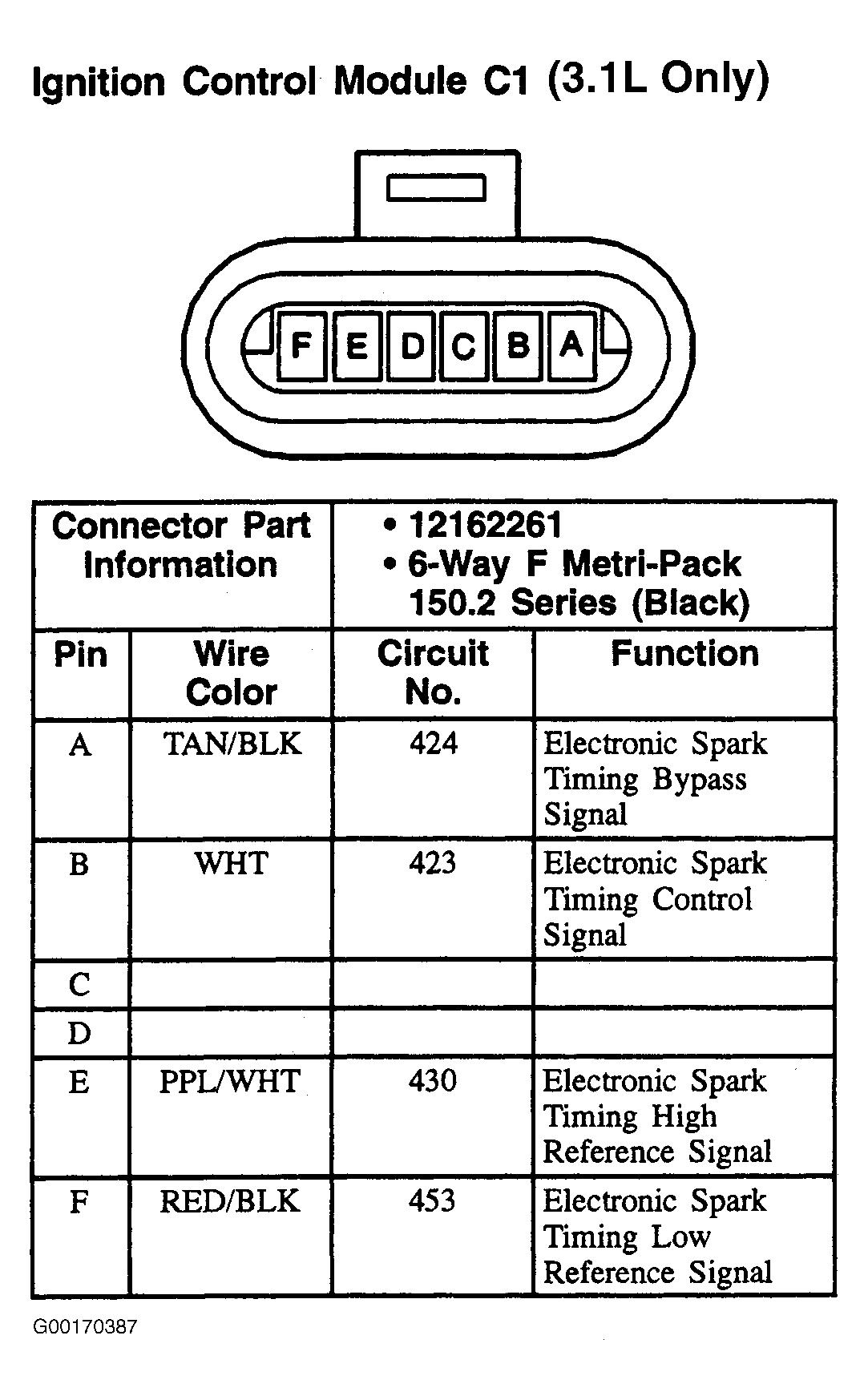

Fig 1: Ignition Control Module Connector C1 (3.1L - Cutlass & Malibu) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
