Cutlass & MALIBU

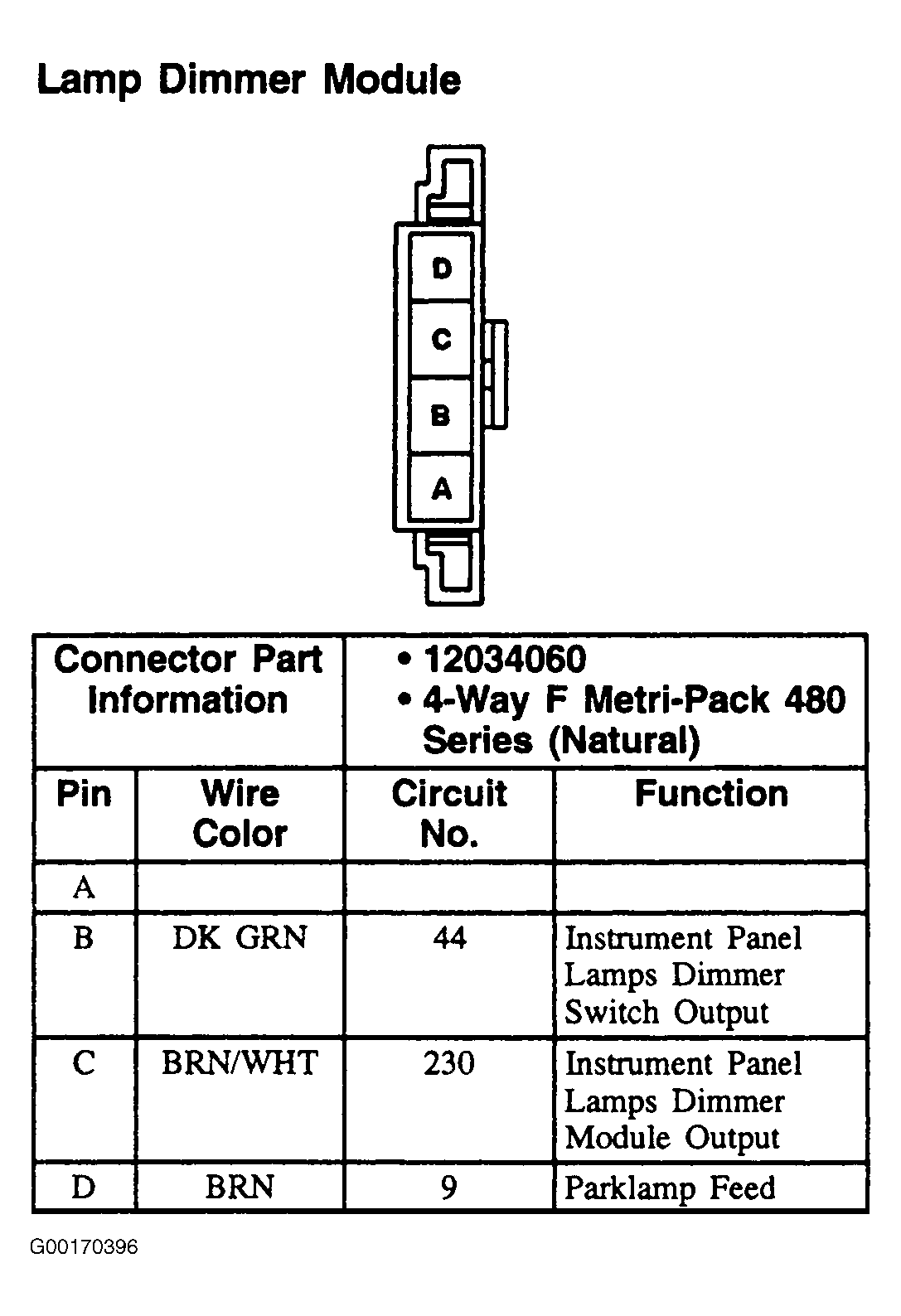

Fig 1: Lamp Dimmer Module (Cutlass & Malibu) - 4-Pin Connector (Natural)
G00170396Courtesy of GENERAL MOTORS CORP.
