Home >> Oldsmobile >> 1997 >> Cutlass Base >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Wiper Switch Assembly >> Cutlass & MALIBU

Cutlass & MALIBU

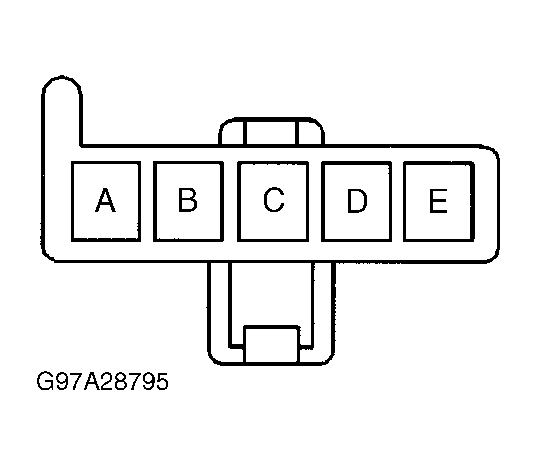

Fig 1: Wiper Switch Assembly (Cutlass & Malibu) - 5-Pin Connector (Black) - (1 Of 2)
G97A28795Courtesy of GENERAL MOTORS CORP.

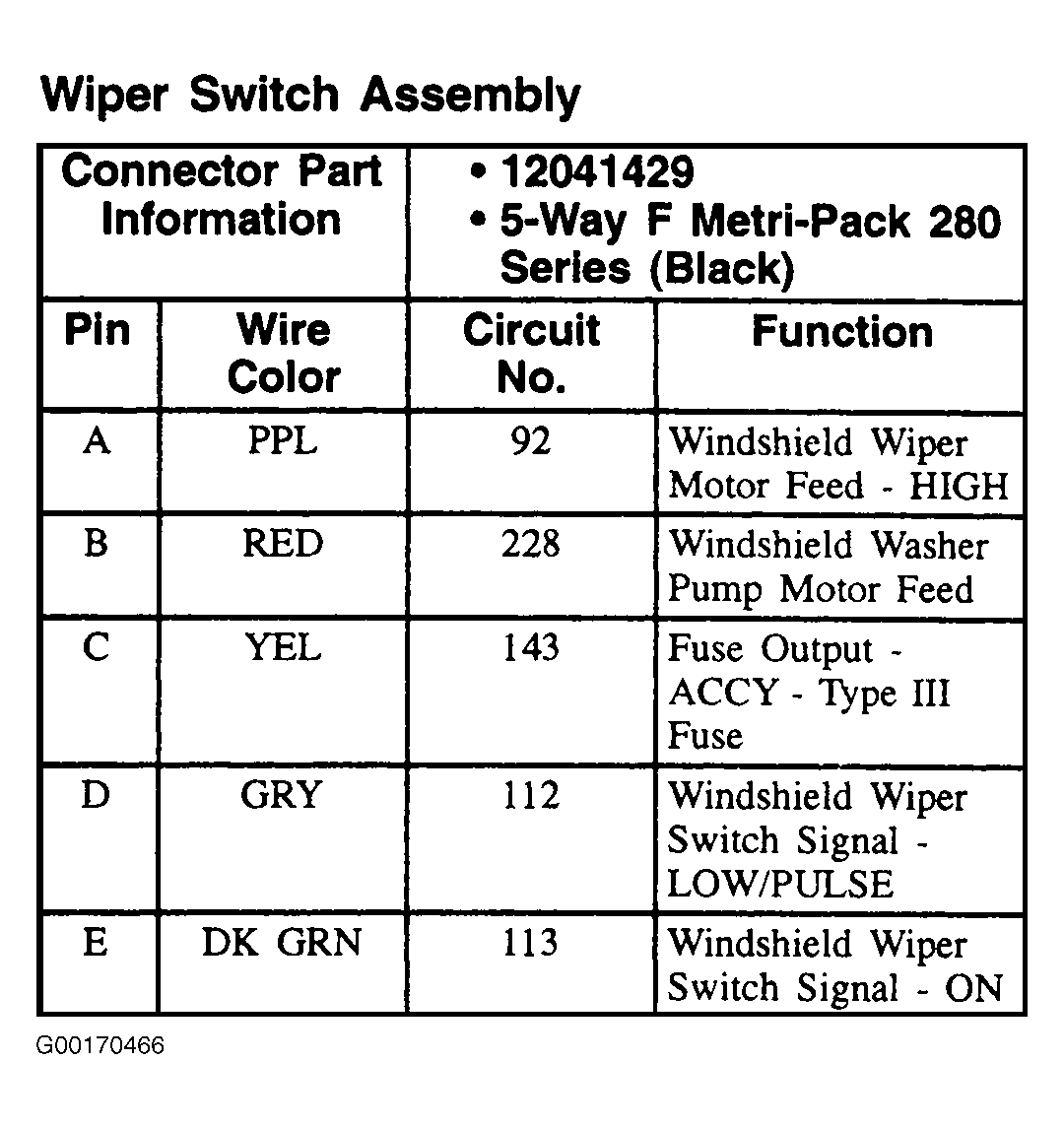

Fig 2: Wiper Switch Assembly (Cutlass & Malibu) - Legend - (2 Of 2)
G00170466Courtesy of GENERAL MOTORS CORP.
