Adaptive Lamp Monitor Control Module C3

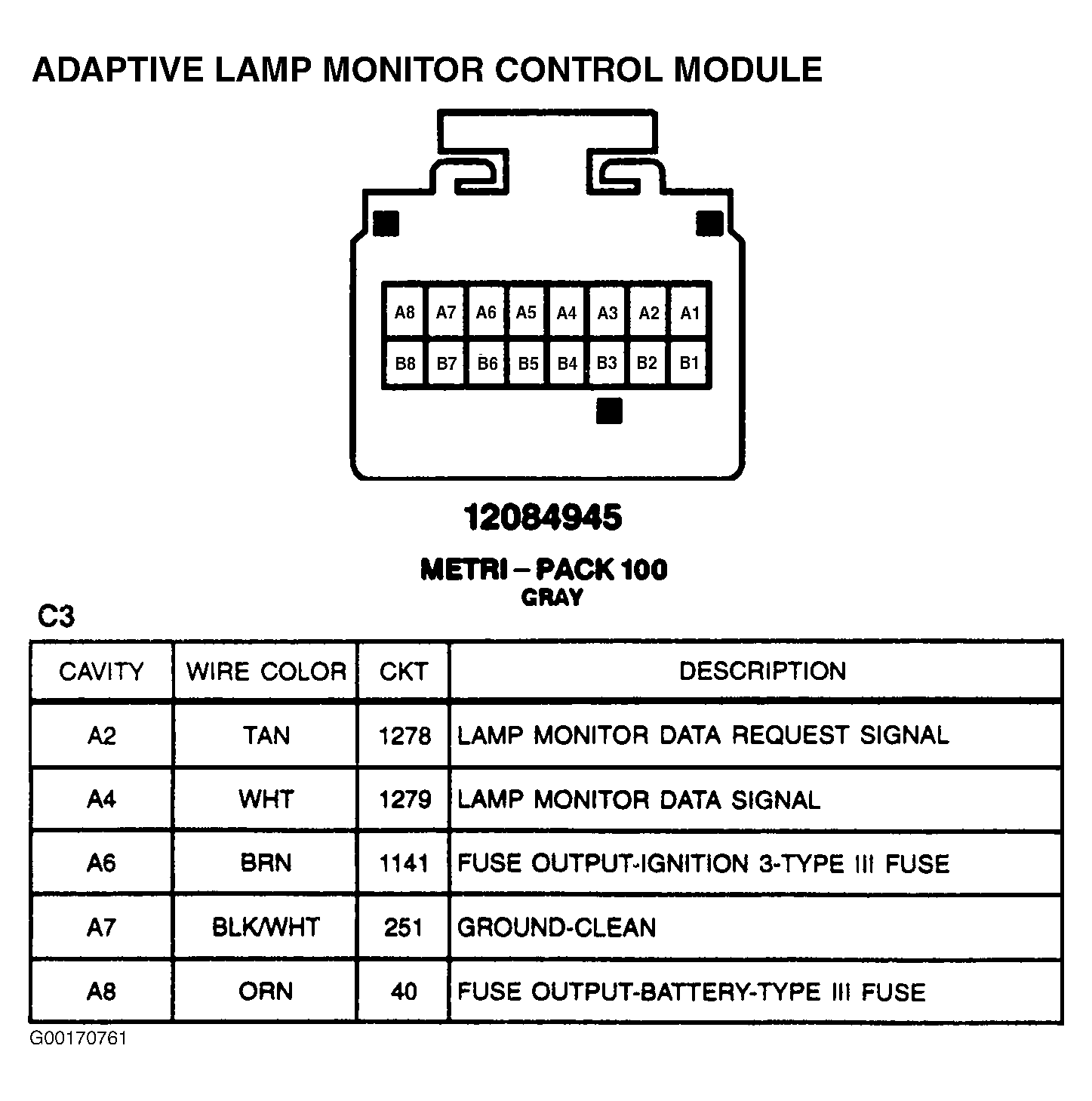

Fig 1: Adaptive Lamp Monitor Control Module C3 - 16-Pin Connector (Gray)

G00170761

Courtesy of GENERAL MOTORS CORP.
