Home >> Oldsmobile >> 1997 >> Regency >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Connectors C101 To C803 >> C101

Connectors C101 To C803: C101

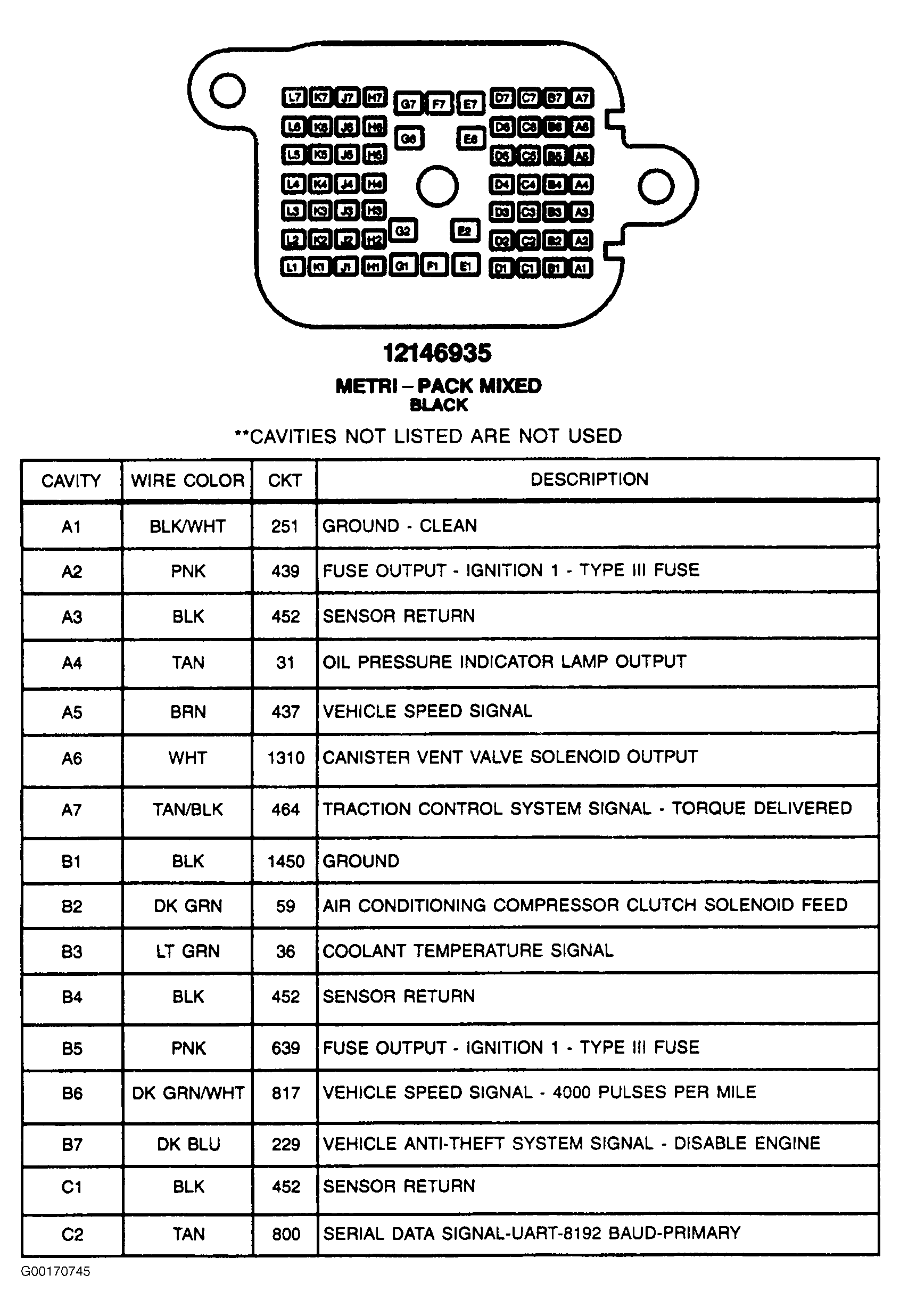

Fig 1: C101 - 66-Pin Connector (Black) - (1 Of 3)
G00170745Courtesy of GENERAL MOTORS CORP.

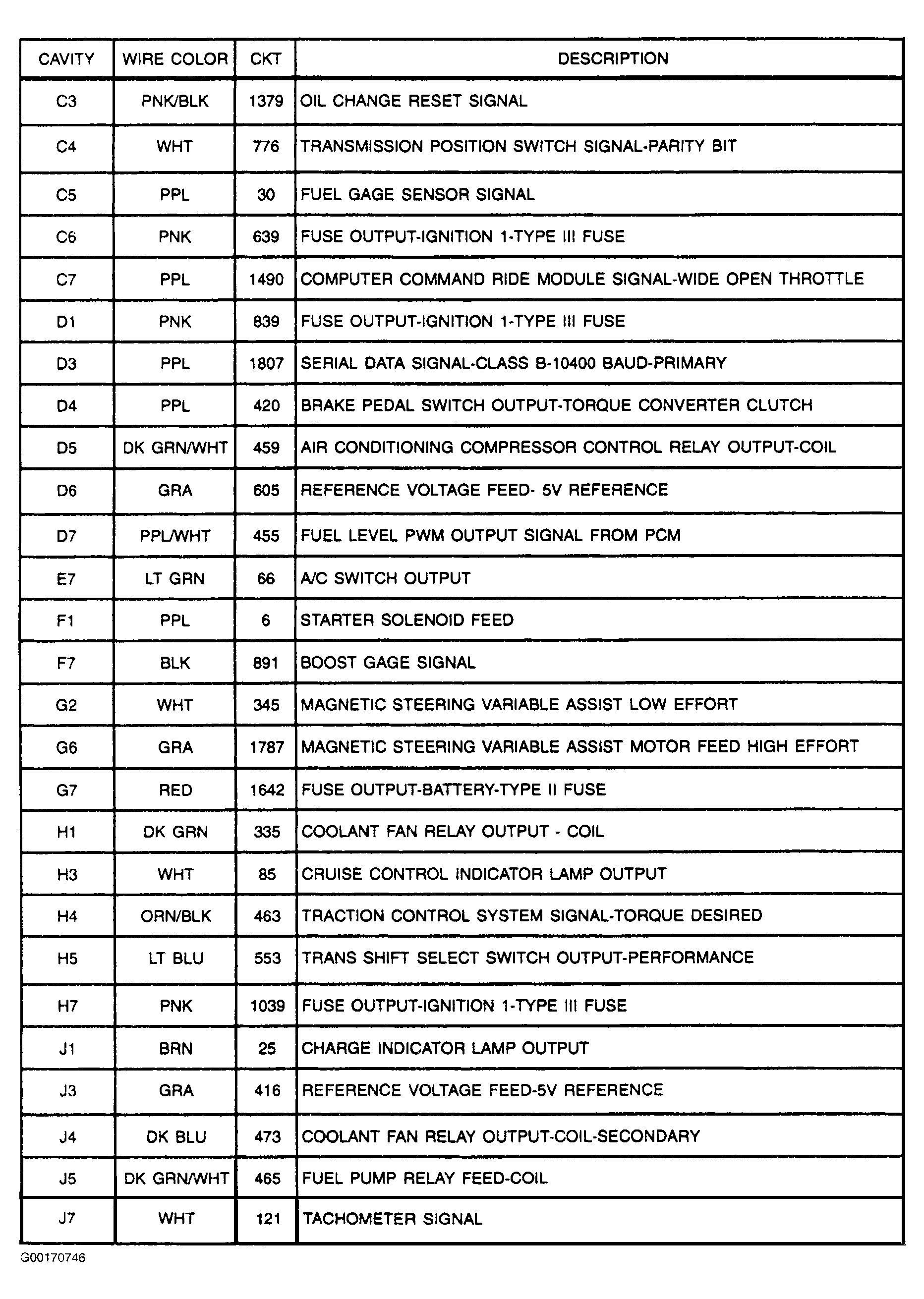

Fig 2: C101 - 66-Pin Connector (Black) - (2 Of 3)
G00170746Courtesy of GENERAL MOTORS CORP.

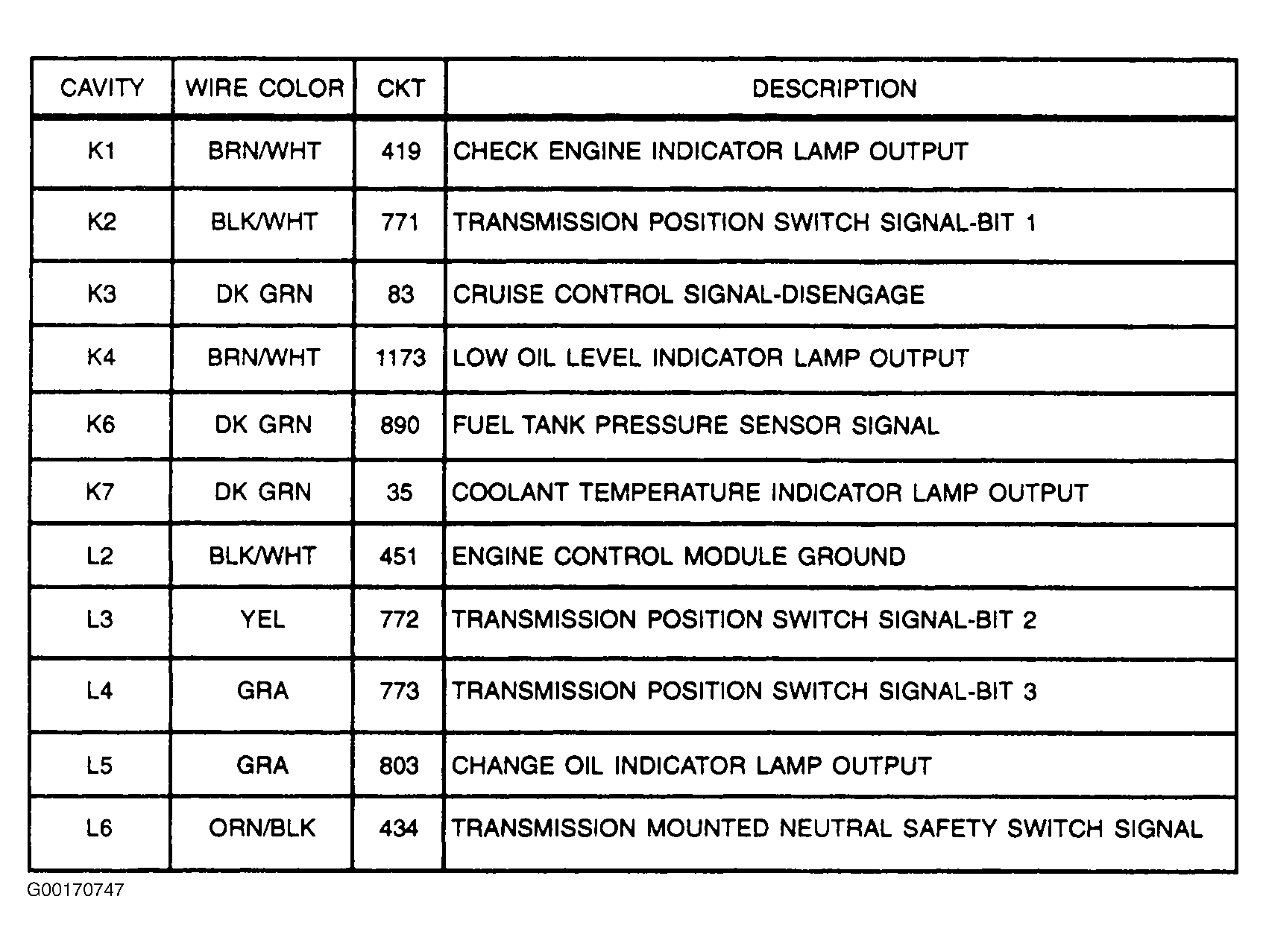

Fig 3: C101 - 66-Pin Connector (Black) - (3 Of 3)
G00170747Courtesy of GENERAL MOTORS CORP.
