Connectors C101 To C803: C200

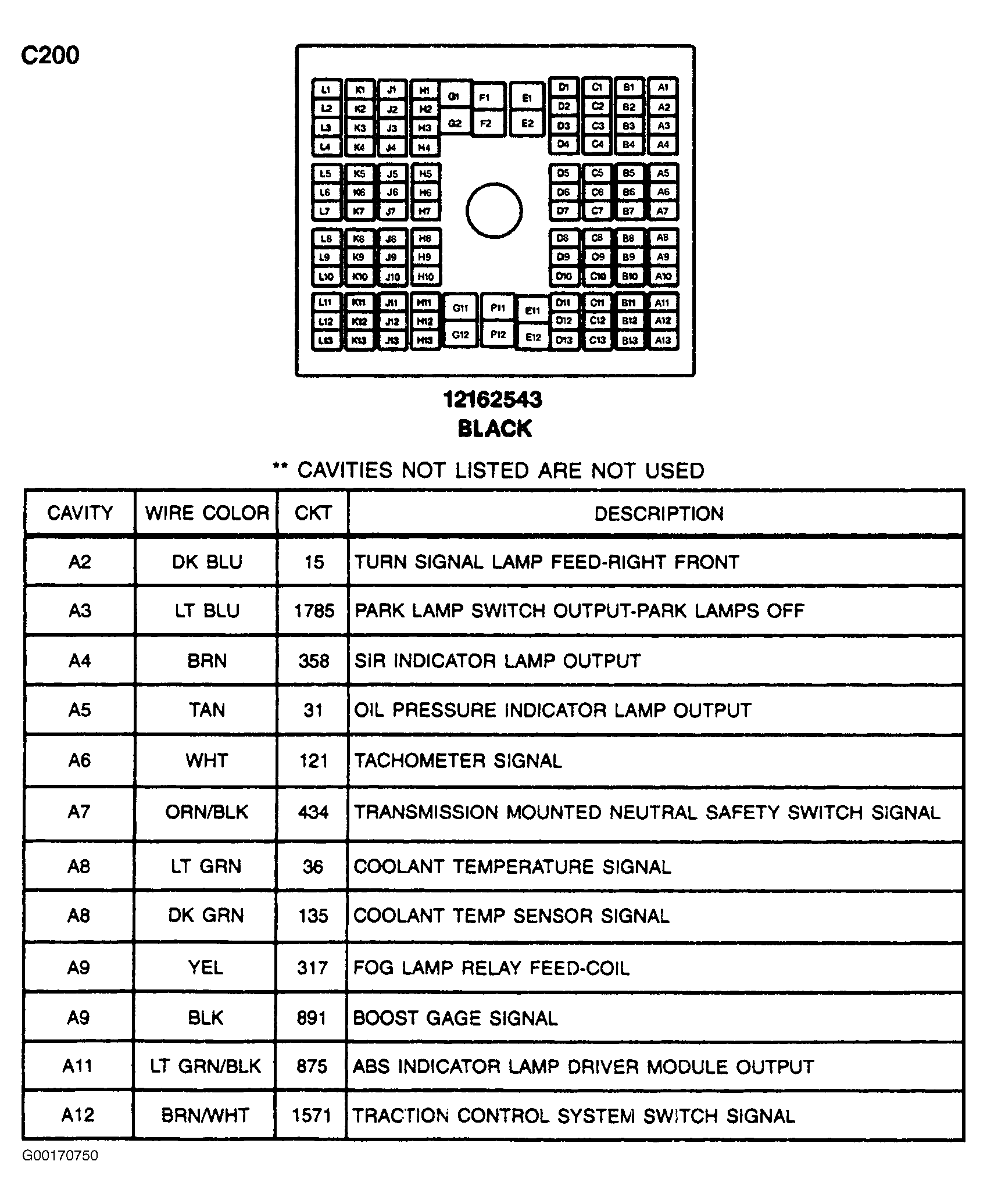

Fig 1: C200 - 116-Pin Connector (Black) - (1 Of 4)
G00170750Courtesy of GENERAL MOTORS CORP.

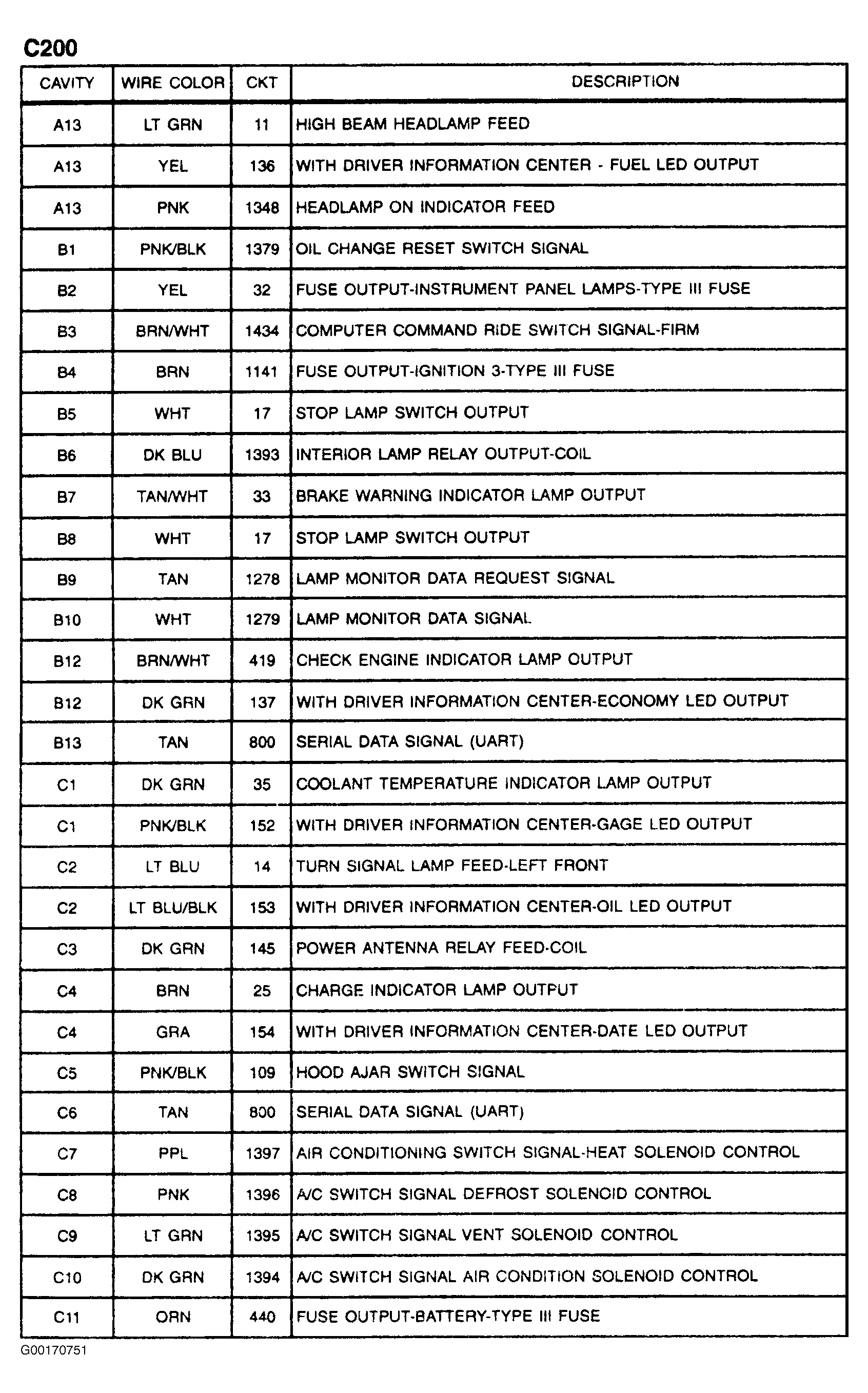

Fig 2: C200 - 116-Pin Connector (Black) - (2 Of 4)
G00170751Courtesy of GENERAL MOTORS CORP.

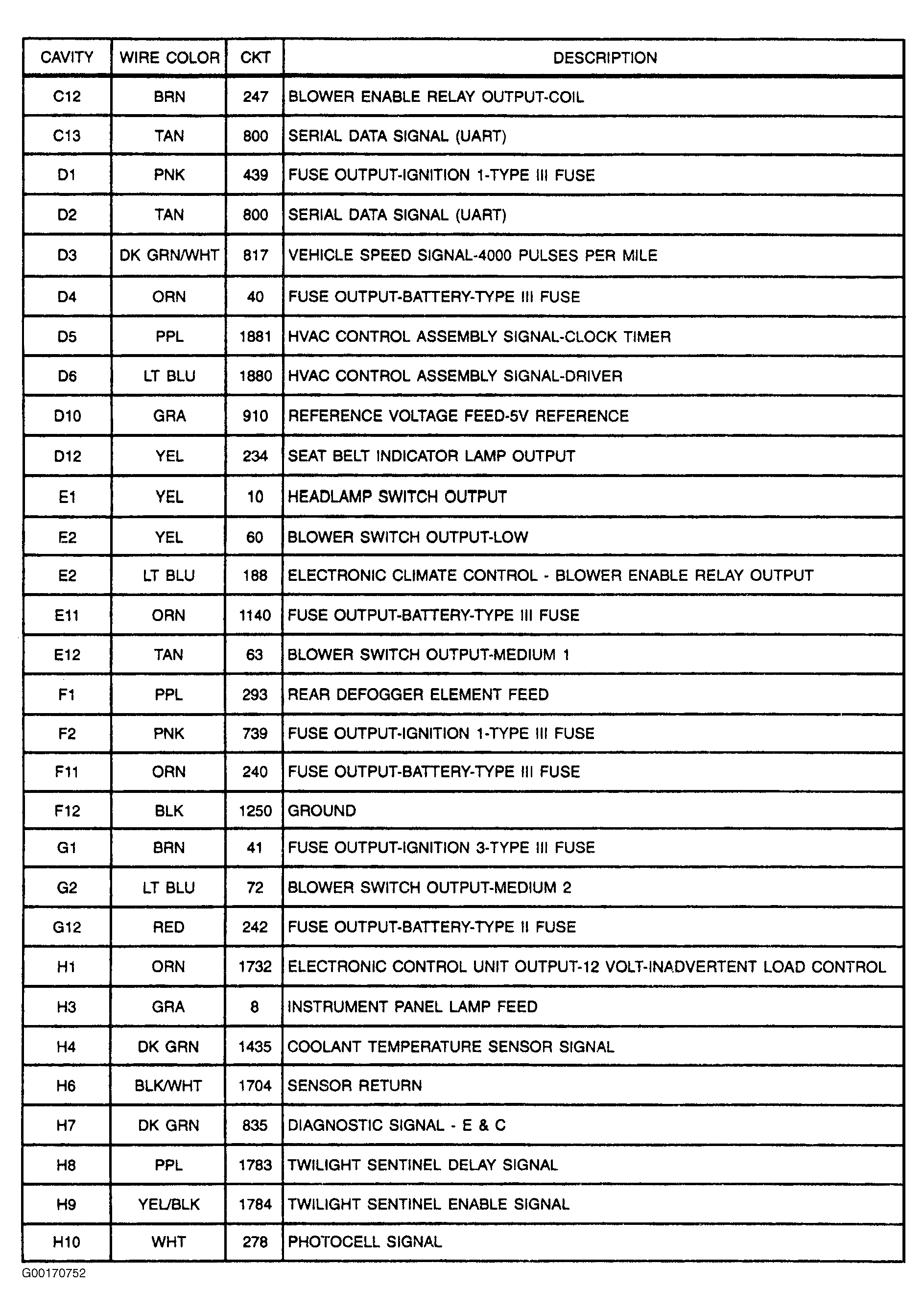

Fig 3: C200 - 116-Pin Connector (Black) - (3 Of 4)
G00170752Courtesy of GENERAL MOTORS CORP.

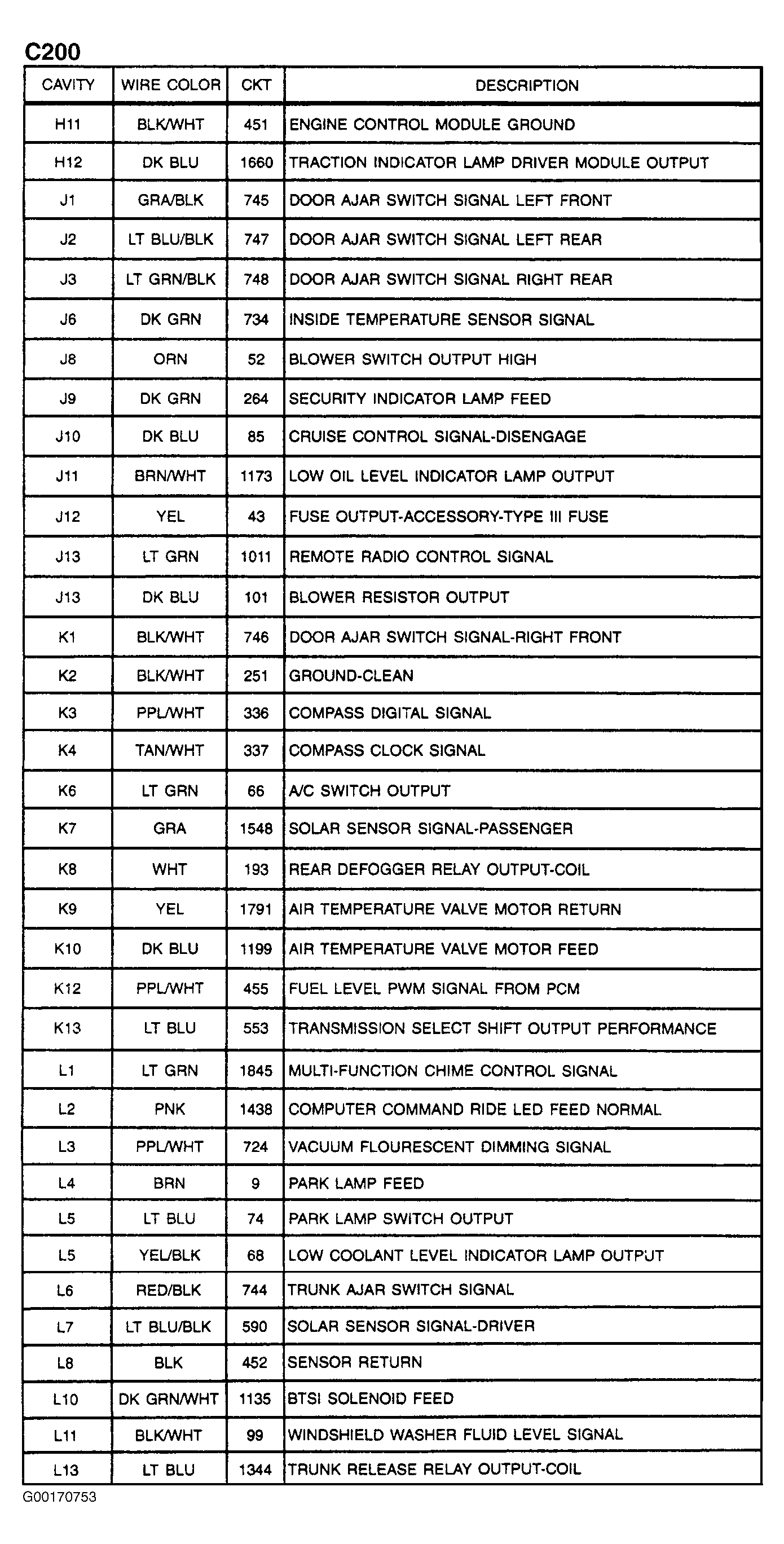

Fig 4: C200 - 116-Pin Connector (Black) - (4 Of 4)
G00170753Courtesy of GENERAL MOTORS CORP.
