C202
Connectors C101 To C803: C202

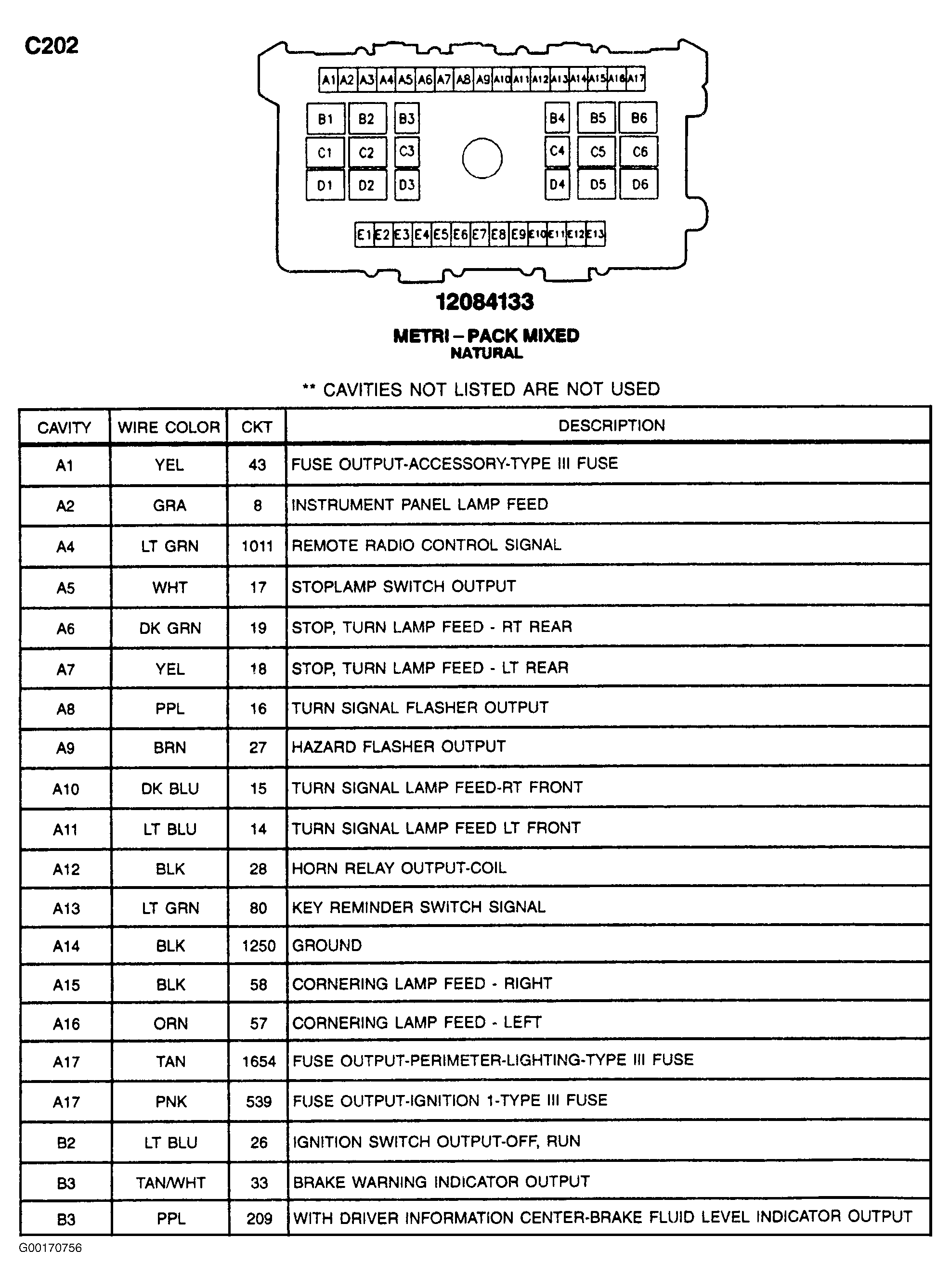

Fig 1: C202 - 48-Pin Connector (Natural) - (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

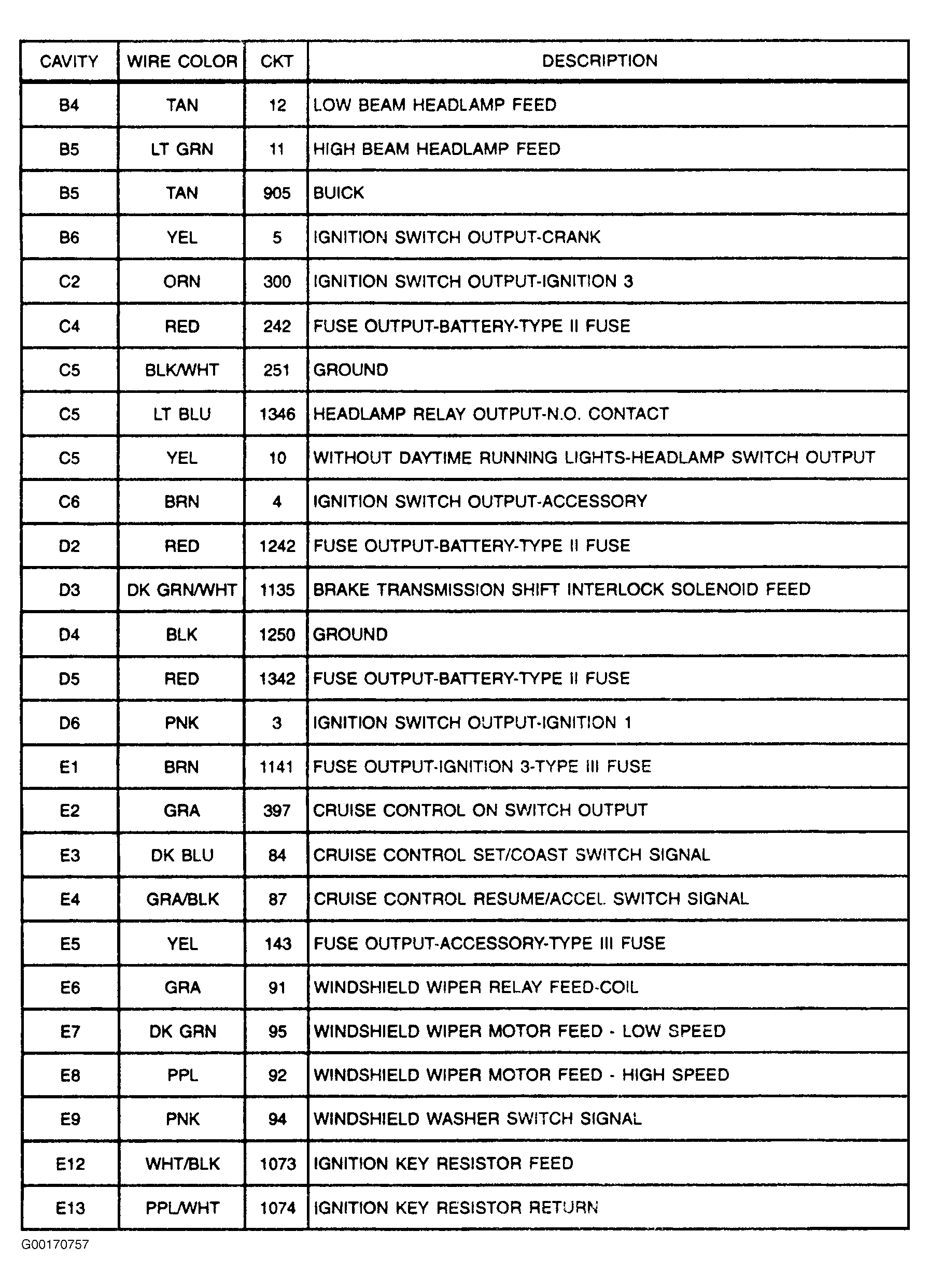

Fig 2: C202 - 48-Pin Connector (Natural) - (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
