Lamp Control Module (LCM) C2 (BUICK)

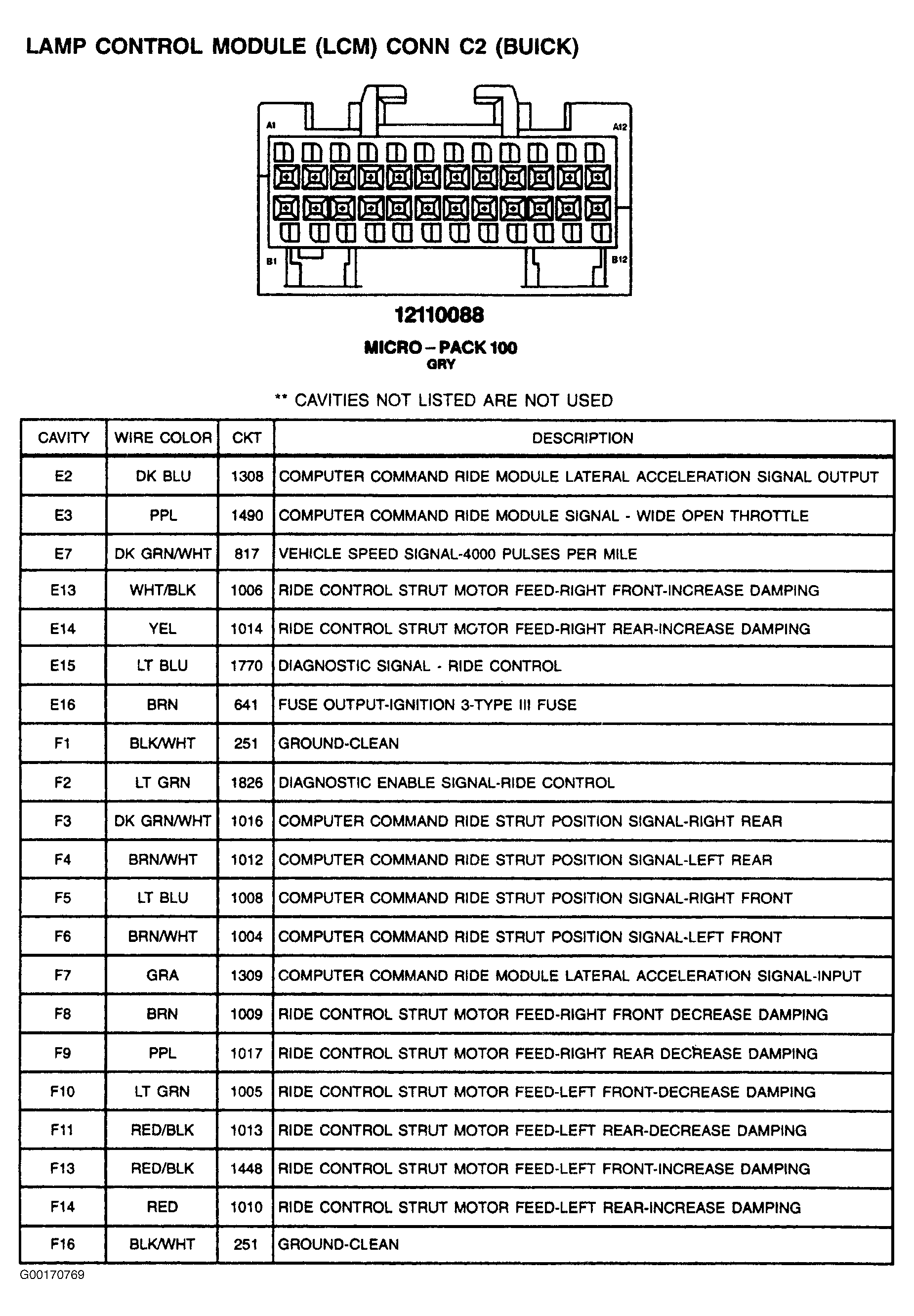

Fig 1: Lamp Control Module (LCM) C2 (Buick) - 24-Pin Connector (Gray)

G00170769

Courtesy of GENERAL MOTORS CORP.
