Home >> Oldsmobile >> 1997 >> Regency >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Sensing & Diagnostic Module (SDM)

Sensing & Diagnostic Module (SDM)

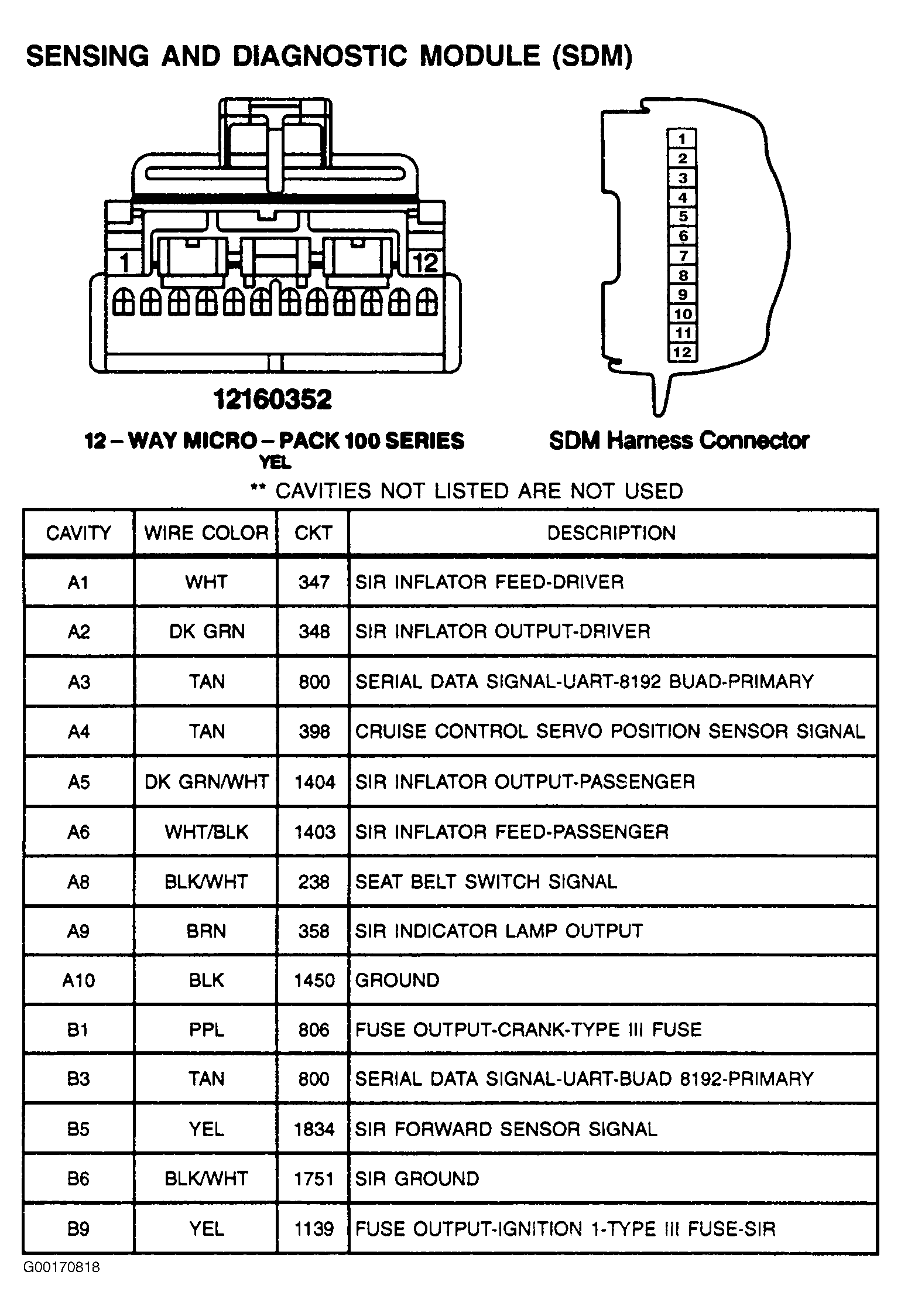

Fig 1: Sensing & Diagnostic Module (SDM) - 12-Pin Connector (Yellow)

G00170818

Courtesy of GENERAL MOTORS CORP.
