Cooling Fan Relays

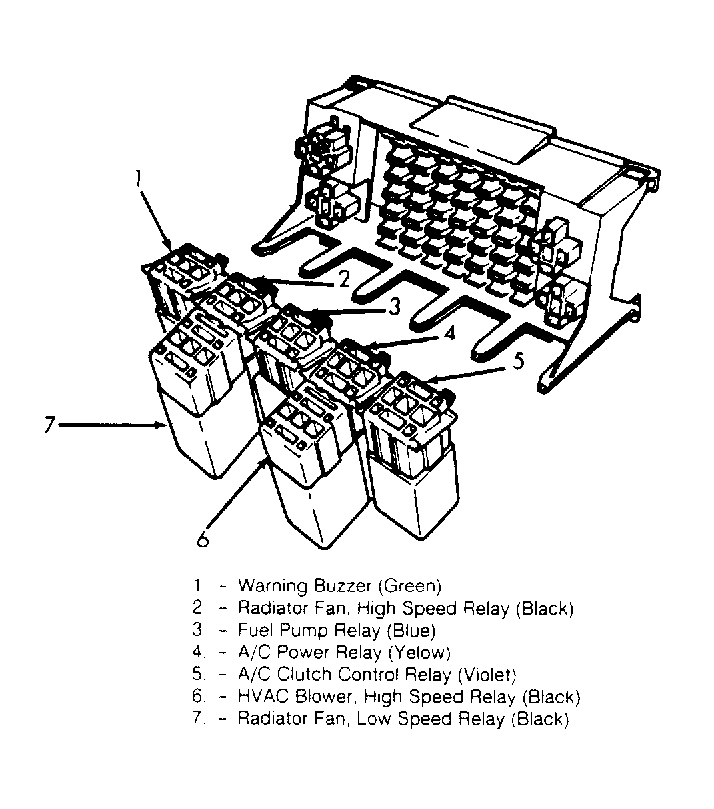

Use circuit wiring diagram and diagnostic flow chart (C-12) to service system faults. See Figure -17.

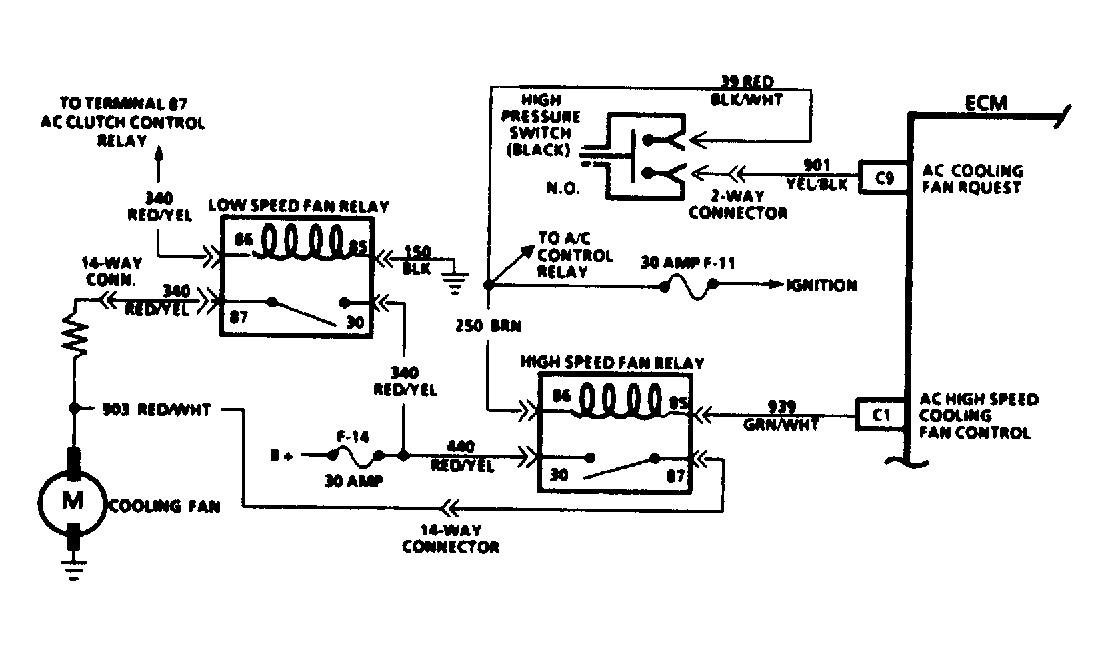

Fig 1: Circuit Diagram (C-12)

Courtesy of GENERAL MOTORS CORP.

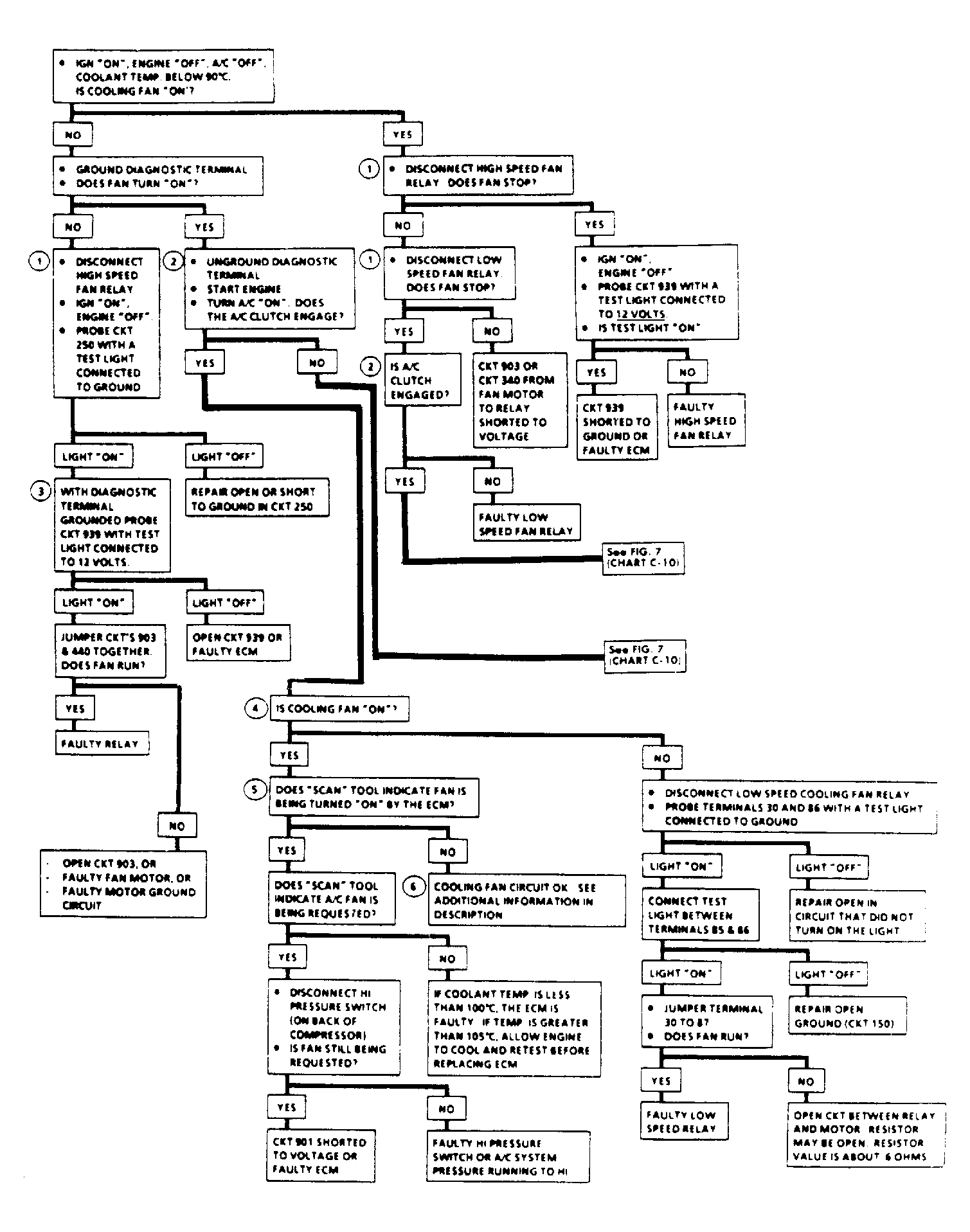

Fig 2: Flow Chart (C-12)

Courtesy of GENERAL MOTORS CORP.
