C100 To C405: C220

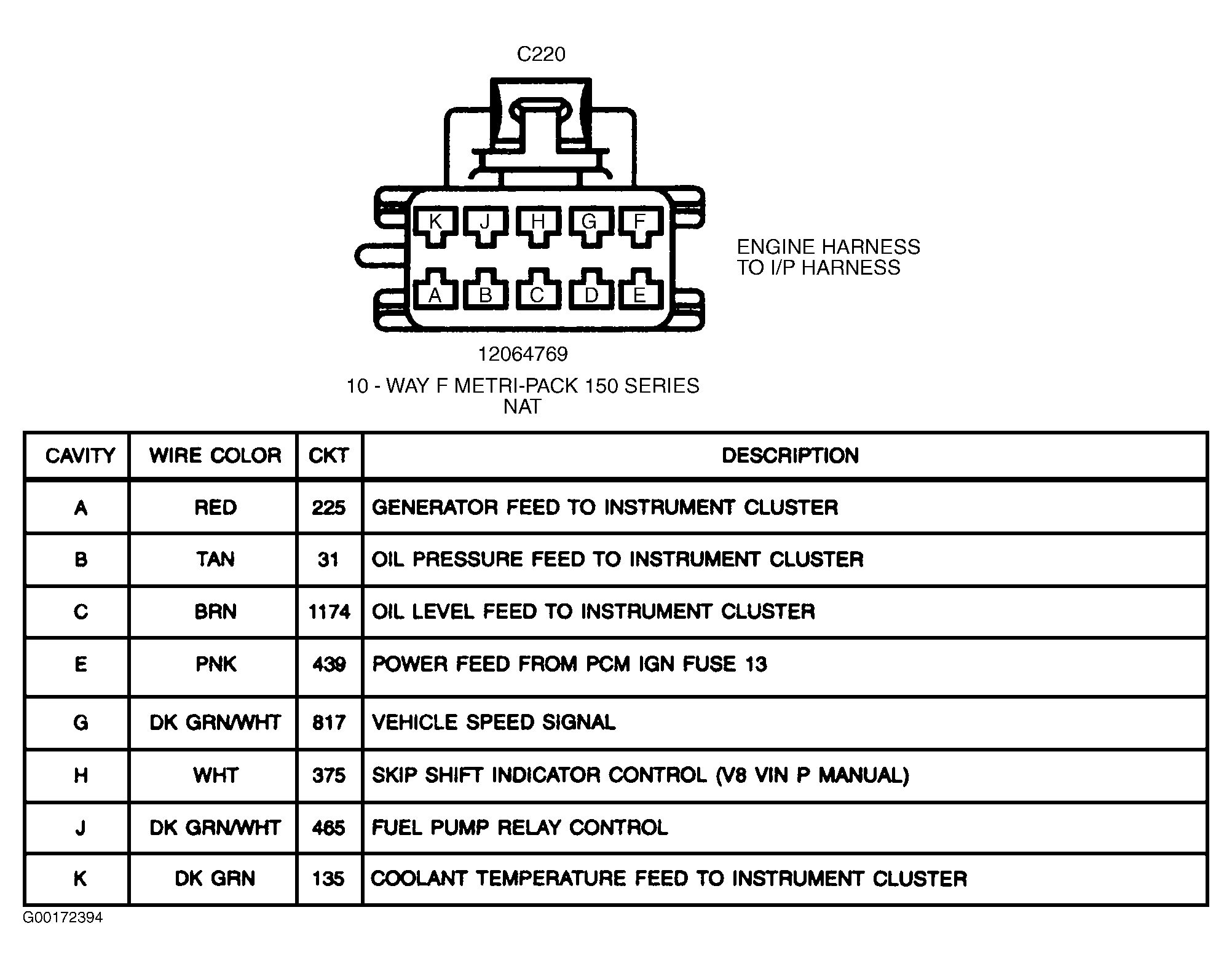

Fig 1: C220 - 10-Pin Connector (Natural)
G00172394Courtesy of GENERAL MOTORS CORP.
