Home >> Pontiac >> 1997 >> Firebird Formula, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Electronic Brake & Traction Control Module C1

Electronic Brake & Traction Control Module C1

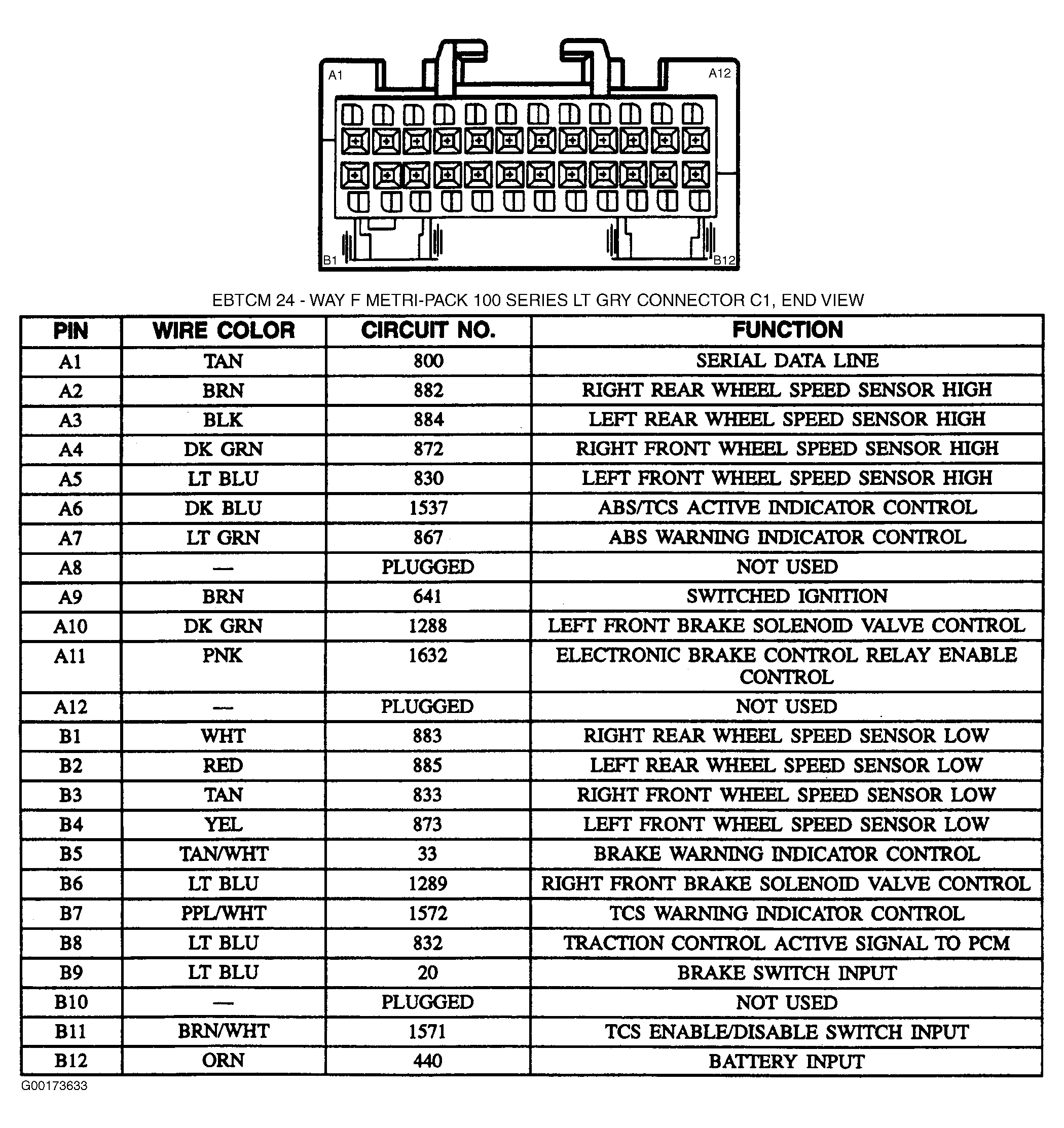

Fig 1: Electronic Brake & Traction Control Module C1 - 24-Pin Connector (Light Gray)

G00173633

Courtesy of GENERAL MOTORS CORP.
