Electronic Brake Control Module (EBCM) C1

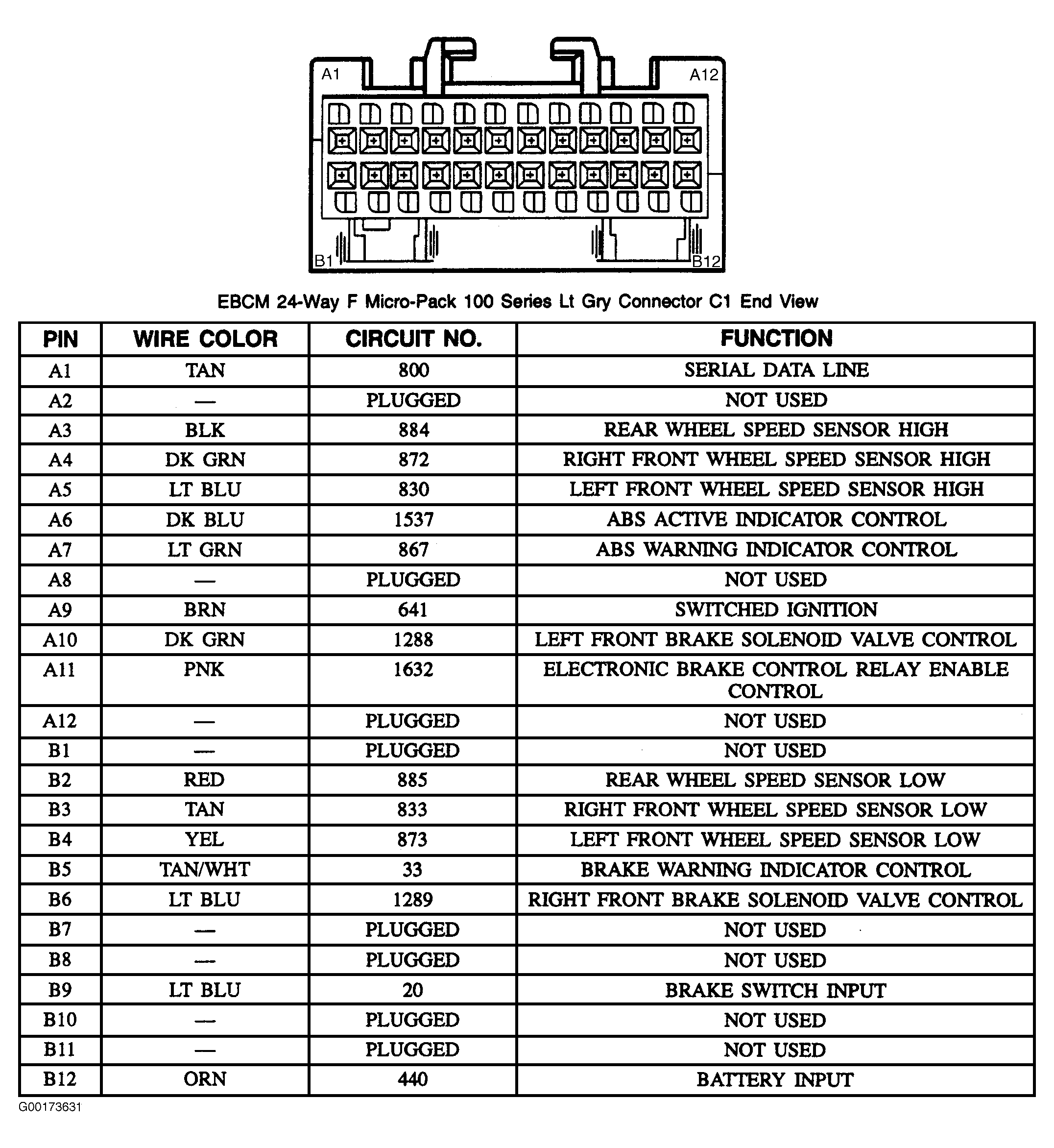

Fig 1: Electronic Brake Control Module C1 - 24-Pin Connector (Light Gray)

G00173631

Courtesy of GENERAL MOTORS CORP.
