Home
>>
Pontiac
>>
1997
>>
Firebird Formula, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Radio Connectors
>>
Amplifier
Radio Connectors: Amplifier

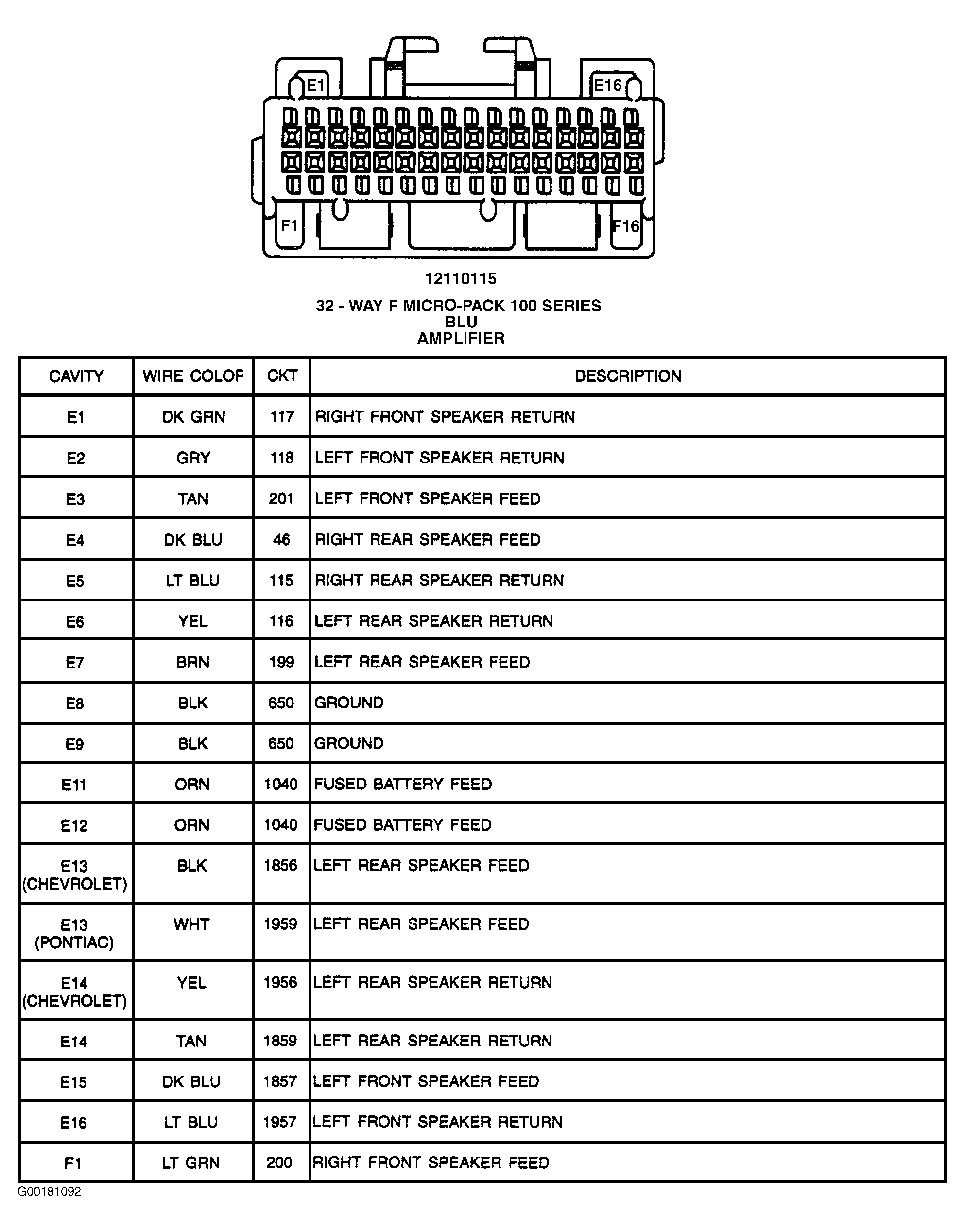

Fig 1: Amplifier - 32-Pin Connector (Blue) - (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

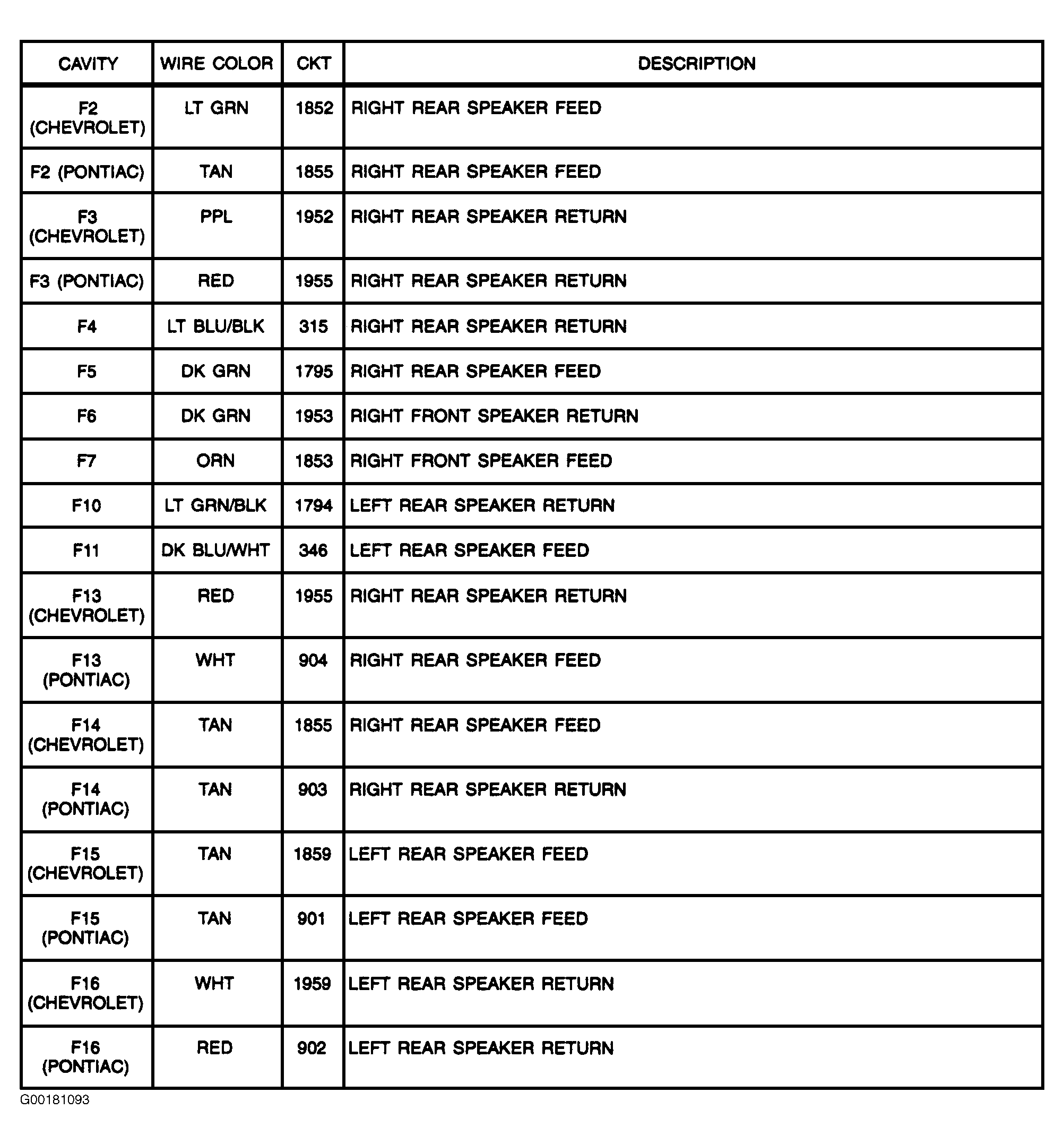

Fig 2: Amplifier - 32-Pin Connector (Blue) - (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
